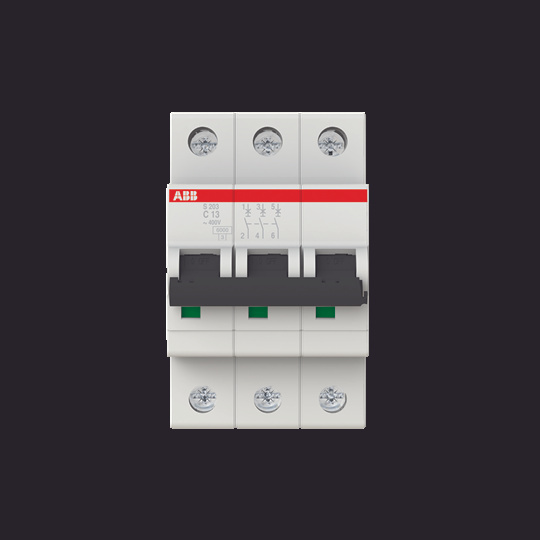

ESL 2CDS253001R0134 S203-C13 fuse switch disconnector System compact 3-pole
|
131,10 EUR |
|||||||||||
|
( 156,01 EUR incl. VAT ) ≈ £109.73 | ≈ $144.08 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 111816 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CDS253001R0134 | ||||||||||
| UPC/EAN: | 4016779467902 | ||||||||||
| Weight: | 0.365 kg | ||||||||||
| Type: | S203-C13 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for ESL 2CDS253001R0134:
Applications
The S203-C13 is intended for use in electrical systems within the field of building electrotechnics. It protects conductors and cables in residential, commercial, and industrial installations against thermal overload and short circuits. Compliance with standards DIN VDE 0100-430 and DIN VDE 0100-530 ensures conformity with requirements for the installation of electrical systems. Certification according to IEC/EN 60898-1 and IEC/EN 60947-2 confirms suitability for use in switchgear and distribution boards. The UL1077 certification extends the application range to the North American market.
Functions and Equipment in Detail
The switch features a connection terminal that allows direct connection of conductor cross-sections up to 35 mm² to the device. The terminal is designed for connection with insulated conductors and offers protection class IP20, ensuring safety during installation. The cable entry opening is positioned above the phase bar entry opening, simplifying wiring and improving visibility. The patented pressure plate terminal ensures a secure and reproducible connection that remains stable even after frequent installation and disassembly.
Technology Explained Simply
The protection function of the S203-C13 is based on a thermal and magnetic tripping mechanism. In case of overload, the thermal component is activated, triggering the switching function according to a time-dependent characteristic curve. In the event of a short circuit, the magnetic component reacts immediately to quickly interrupt the current supply. The C13 characteristic means that the switch begins to open at a current of 13 A and trips within milliseconds at multiples of the rated current (e.g., 5–10 times). The IP20 protection rating safeguards against contact with solid objects larger than 12.5 mm and against splashing water, but not against direct water jets or immersion. This protection class is suitable for use in enclosed distribution boards, not for outdoor applications.
Compatibility and Accessories
The S203-C13 is part of the System compact, enabling modular construction. It can be mounted in standard distribution boxes designed for the S 200 series. The extensive accessory range includes various connection and mounting components suitable for specific installation requirements.
Mounting and Installation
Installation is carried out in a suitable distribution box, where the connection terminal is directly connected to the conductors. The pressure plate is used to secure the conductor, creating a reliable connection. The positioning of the cable entry opening above the phase bar simplifies wiring and reduces error sources. Mounting requires no additional tools, as the terminal is operated mechanically via the pressure plate. The IP20 protection class requires the switch to be installed in a closed enclosure to ensure the specified protection function.
Advantages in Operation
The S203-C13 provides reliable protection for electrical conductors and cables. The patented connection terminal ensures fast and secure installation, which remains stable even with frequent use. Compliance with international standards enables use in various markets. Triple quality inspection before shipment ensures high product quality. The IP20 protection class and modular design support flexible and secure installation in distribution boards.
| General | |
| Degree of protection | IP20 |
| Terminal clamp | patented pressure plate terminal |
| Conductor cross section | up to 35 mm² |
| Characteristic curve | C13 |
| Number of poles | 3 |
| Approvals | DIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077 |
