ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic

Your rating:
Average rating
product review for ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic
( 4.4 / 5 ) 5 ratings
ESL 2CDS252001R0165

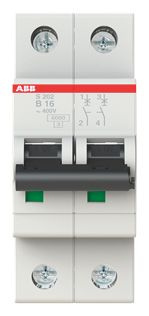

This image may differ from the desired article.
ESL 2CDS252001R0165ESL 2CDS252001R0165
58,14 EUR
( 69,19 EUR incl. VAT )
≈ £48.66  |  ≈ $63.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >50 pieces
1x ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic
Lieske Part No.:120701
Mfg Part No: 2CDS252001R0165
UPC/EAN: 4016779466905
Weight:0.26 kg
Type:S202-B16
Graduated prices net
From piecesPrice per pieces
656,83 EUR
1255,52 EUR
2454,22 EUR
3652,91 EUR

Product information for ESL 2CDS252001R0165:

The S202-B16 circuit breaker from ESL is a two-pole circuit protection switch from the S 200 series, designed to protect cables and wiring against overload and short-circuit. It is intended for use in electrical installations and complies with relevant standards and building regulations, including DIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, and UL1077. The protection function operates according to the B-characteristic, ensuring selective tripping in case of overloads and short-circuits. The maximum breaking capacity is 6 kA, making it suitable for use in residential and commercial installations.

Applications

The S202-B16 is designed for use in indoor electrical distributions, particularly in residential and commercial buildings. It protects electrical wiring and consumers against thermal overload and short-circuits. Compliance with standards DIN VDE 0100-430 and DIN VDE 0100-530 ensures conformity with regulations for electrical installations in Germany. Certification according to UL1077 also enables use in markets requiring this American standard.

Functions and Equipment in Detail

The switch features a patented connection terminal, enabling simple and secure connection of wiring. The connection is made via a pressure plate, ensuring a reliable and durable connection. The connection opening for the wiring is positioned above the connection opening for the phase bar, simplifying wiring and improving visibility. This is particularly advantageous during installation in modular enclosures, where space and clarity are critical.

Technology Explained Simply

The B-characteristic means that the switch will trip within one hour when subjected to a current load 1.13 times the rated value. In the event of a short-circuit with high current (over 10 times the rated value), tripping occurs within 0.1 seconds. The maximum breaking capacity of 6 kA ensures safe tripping even under high short-circuit currents. The protection class IP20 protects against finger contact and ingress of solid foreign objects larger than 12.5 mm in diameter, but does not protect against water or dust. Direct connection of conductors with a cross-section up to 35 mm² is possible with insulation, accelerating installation and eliminating the need for additional connection terminals.

Compatibility and Accessories

The S202-B16 is designed for installation in standard distribution boxes and modular enclosures. The S 200 series accessory range includes various additional functions such as indicators, switching indicators, or additional protection features, which can be added depending on the application. Exact compatibility with specific accessories is documented in the respective accessory range for the series.

Mounting and Installation

Installation is carried out in standard distribution boxes with a 35 mm mounting profile. The connection terminal allows for quick and secure wiring. The positioning of the connection openings (wiring on top, phase bar below) simplifies wiring and reduces error sources. The IP20 protection class requires installation in enclosed, dry rooms without direct exposure to water or dust.

Operational Advantages

The S202-B16 offers reliable protection with high breaking capacity and simple, secure installation. The patented connection terminal reduces installation time and improves contact quality. Compliance with international standards enables use in various markets. Triple quality inspection before shipment ensures high product quality.

General
Degree of protectionIP20
Nominal current16 A
Number of poles2 way
Breaking capacity6 kA
Switching characteristicB
Connection cross section35 mm²
ApprovalsDIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077


Questions & answers

What is the delivery time of ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic?

The article ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS252001R0165 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic always at the best possible price. We can give you a discount of 2% on ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of ESL 2CDS252001R0165 S202-B16 fuse switch 16 A 2-pole 6 kA B-characteristic we can offer you a price of 56,83 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
