ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole

Your rating:
Average rating
product review for ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole
( 4.3 / 5 ) 3 ratings

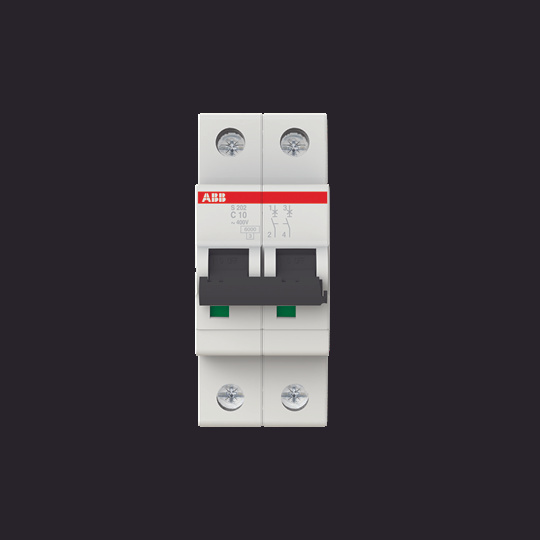

ESL 2CDS252001R0104
This image may differ from the desired article.
ESL 2CDS252001R0104ESL 2CDS252001R0104
85,12 EUR
( 101,29 EUR incl. VAT )
≈ £71.25  |  ≈ $93.55
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole
Lieske Part No.:876699
Mfg Part No: 2CDS252001R0104
UPC/EAN: 4016779465700
Weight:0.224 kg
Type:S202-C10
Graduated prices net
From piecesPrice per pieces
683,20 EUR
1281,29 EUR
2479,37 EUR
3677,46 EUR

Product information for ESL 2CDS252001R0104:

The S202-C10 circuit breaker from ESL belongs to the S 200 series and serves as a circuit protection switch for use in electrical installations. It protects cables and wiring against overload and short-circuit in accordance with standards DIN VDE 0100-430 and DIN VDE 0100-530. The device is designed for use in mounting enclosures and complies with construction regulations DIN VDE 0641-11 as well as IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2 and UL1077. The patented connection terminal enables secure and easy wiring via a pressure plate, thereby accelerating installation and enhancing connection reliability.

Applications

The S202-C10 is intended for use in indoor electrical installations, particularly in residential and commercial buildings. It protects electrical wiring against thermal overload and short-circuit currents, ensuring the safety of the installation. Compliance with the mentioned standards makes the device suitable for use in Germany and internationally, especially in installations that must meet the requirements of VDE construction regulations.

Functions and Equipment in Detail

The device features a two-pole configuration with a rated current of 10 A. The connection opening for the conductors is positioned above the connection opening for the phase bar, improving visibility and handling during wiring. Conductor cross-sections up to 35 mm² can be directly connected to the terminal, which is designed with insulation to protection class IP20. The IP20 protection rating means the device is protected against contact with fingers or similar objects, but not against water or dust.

Technology Explained Simply

The circuit breaker operates on the principle of a thermal-magnetic switch. In case of overload, a bimetal strip heats up and opens the switch due to thermal expansion. In the event of a short-circuit, a high current flows, triggering a magnetic effect that also rapidly disconnects the switch. The combination of both principles ensures reliable protection under various load conditions. The patented pressure plate of the connection terminal allows for quick and secure connection without additional tools, reducing installation time.

Compatibility and Accessories

The device is part of a comprehensive accessory range suitable for various installation tasks. It can be used in standard installation switches and enclosures designed for the S 200 series. The mentioned standards and approvals ensure compatibility with other components that also meet these standards. The use of accessories such as labels, covers, or additional terminals is possible, provided they are available in the product range.

Mounting and Installation

Installation is carried out in a suitable mounting enclosure, with the connection terminal directly connected to the conductors. The maximum conductor cross-section of 35 mm² allows for use with thick cables commonly found in larger installations. The connection opening for the phase bar enables a secure connection to the power supply. The IP20 protection rating requires the device to be installed in a closed enclosure to ensure the intended protective functions.

Advantages in Operation

The S202-C10 offers high reliability through triple quality inspection before shipment. Easy installation via the patented pressure plate reduces installation time and minimizes errors. Compliance with international standards enables use in various markets, making installation planning and execution more flexible. The clear arrangement of connection openings improves clarity during wiring, reducing error rates.

General
Degree of protectionIP20
Nominal current10 A
Number of poles2
Conductor cross section35 mm²
StandardsDIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077


Questions & answers

What is the delivery time of ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole?

The article ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS252001R0104 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole always at the best possible price. We can give you a discount of 2% on ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of ESL 2CDS252001R0104 S202-C10 fuse switch 10 A 2-pole we can offer you a price of 83,20 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
