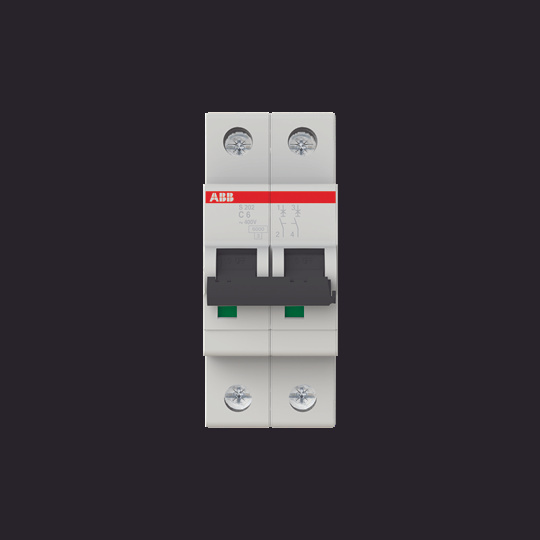

ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole

Your rating:
Average rating
product review for ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole
( 4 / 5 ) 1 ratings
ESL 2CDS252001R0064
This image may differ from the desired article.
102,60 EUR
( 122,09 EUR incl. VAT )
≈ £85.88  |  ≈ $112.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole
Lieske Part No.:770949
Mfg Part No: 2CDS252001R0064
UPC/EAN: 4016779465502
Weight:0.224 kg
Type:S202-C6
Graduated prices net
From piecesPrice per pieces
5100,29 EUR
1097,98 EUR
1595,67 EUR
2093,37 EUR

Product information for ESL 2CDS252001R0064:

The S202-C6 circuit breaker from ESL is a two-pole circuit protection switch from the S 200 series, designed for the protection of cables and lines against overload and short circuit. It meets the requirements of standards DIN VDE 0100-430 and DIN VDE 0100-530, as well as construction regulations DIN VDE 0641-11 (corresponding to IEC/EN 60898-1) and DIN VDE 0660-101 (corresponding to IEC/EN 60947-2). Additionally, it is certified according to UL1077, highlighting its suitability for worldwide use. The device is intended for use in electrical installations, particularly in conjunction with modular installation devices and installation combinations.

Applications

The S202-C6 is intended for use in electrical systems within the field of building electrotechnics. It protects lines and cables against thermal overload and short-circuit currents, thereby ensuring the safety of the installation. The approvals according to DIN VDE and IEC/EN make it suitable for use in Germany and internationally. The construction regulations it complies with are relevant for the planning and execution of electrical systems in residential and commercial buildings.

Functions and Equipment in Detail

The device features a patented connection terminal that enables simple and secure contact. The connection is made via a pressure plate, ensuring a reliable and mechanically stable connection. The connection opening for the lines is positioned above the connection opening for the phase bar, which simplifies wiring and improves the visibility of connections. This is particularly advantageous during installation in enclosures, where clear visibility of connections is important.

Technology Explained Simply

The circuit breaker automatically trips when an overload or short-circuit current is detected. The switching function is performed by an electromechanical mechanism that responds to current intensity. The rated current is 6 A, suitable for applications with low to medium current requirements. The maximum conductor cross-section that can be directly connected to the terminal is 35 mm². The terminal is designed for connection with insulated conductors and complies with protection class IP20, meaning it is protected against finger contact and solid foreign objects, but not against splashing water or dust.

Compatibility and Accessories

The device is designed for use in modular installation devices and can be combined with suitable accessories. Recommended accessories include the series terminals CMS-102PS and CMS-101PS, which enable secure and quick connections between multiple circuit breakers. These terminals are specifically developed for the S 200 series and ensure a stable electrical connection.

Mounting and Installation

Installation is carried out in standard enclosures or cabinets designed for modular installation devices. The connection terminal allows direct connection of conductors up to 35 mm² cross-section. Wiring is done by inserting the conductor into the connection opening and securing it with the pressure plate. The arrangement of the connection openings (conductor on top, phase bar below) facilitates installation and maintenance. The devices are tested three times intensively for quality and performance before delivery to ensure high reliability.

Advantages in Operation

The S202-C6 offers high operational safety through compliance with international standards and approvals. The patented connection terminal reduces installation time and minimizes wiring errors. The clear arrangement of connections improves maintainability and clarity within the enclosure. The DIN VDE and IEC/EN approvals allow use in various countries and applications without requiring additional modifications or certifications.

General
Nominal current6 A
Number of poles2
Degree of protectionIP20
Maximum conductor cross-section35 mm²
ApprovalsDIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077
Connection typePressure plate
Product seriesS 200


Questions & answers

What is the delivery time of ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole?

The article ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS252001R0064 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole always at the best possible price. We can give you a discount of 2% on ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of ESL 2CDS252001R0064 S202-C6 fuse switch 6 A 2-pole we can offer you a price of 100,29 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
