ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA

Your rating:
Average rating
product review for ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA
( 5 / 5 ) 3 ratings

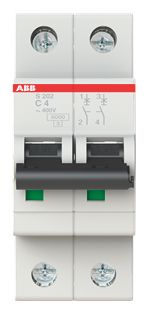

ESL 2CDS252001R0044
This image may differ from the desired article.
102,60 EUR
( 122,09 EUR incl. VAT )
≈ £85.88  |  ≈ $112.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA
Lieske Part No.:150636
Mfg Part No: 2CDS252001R0044
UPC/EAN: 4016779523400
Weight:0.224 kg
Type:S202-C4
Graduated prices net
From piecesPrice per pieces
599,52 EUR
1096,44 EUR
1593,37 EUR
2090,29 EUR

Product information for ESL 2CDS252001R0044:

The S202-C4 circuit breaker from the S 200 series by ESL is a two-pole circuit protection switch designed to protect cables and wiring against overload and short circuit. It is intended for use in electrical installations and complies with relevant standards and building regulations, including DIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, and UL1077. The S 200 series is suitable for use in various application areas, particularly in building electrical engineering and the installation of electrical systems.

Applications

The S202-C4 is designed for use in electrical distributions where reliable protection against overload and short circuit is required. It is particularly suitable for applications in residential and commercial buildings, where the safety of the electrical system is paramount. Compliance with the mentioned standards ensures its use in various countries and regions, as the approvals are internationally recognized.

Functions and Equipment in Detail

The circuit breaker features a patented connection terminal that enables simple and secure connection. The terminal is operated via a pressure plate, which simplifies installation and maintenance. The cable entry opening is positioned above the phase bar entry opening, providing better visibility during wiring. This improves work safety and reduces installation errors.

Technology Explained Simply

The protection function of the S202-C4 is based on detecting overload and short circuit currents. When a critical current value is reached, the switch automatically trips to protect the connected wiring from damage. The rated current is 4 A, suitable for smaller loads and wiring. The switching capacity is 6 kA, indicating the device’s ability to safely interrupt a short circuit current up to this level. The connection terminal allows direct connection of conductors with a cross-section up to 35 mm², while maintaining protection class IP20. This means the terminal protects against contact with moving parts but does not protect against ingress of solid foreign objects or water.

Compatibility and Accessories

The accessory range for the S 200 series includes various components that may be required for specific installation tasks. Specific accessory parts are not named in the text, but it is noted that the range is comprehensive and covers the requirements of many installations. Compatibility with other components of the S 200 series is ensured, as the devices are standardized.

Mounting and Installation

Mounting is performed on standard installation rails designed for modular devices. The connection terminal allows direct fixation of cables without additional tools, with the pressure plate ensuring a secure connection. The positioning of the connection openings ensures clear and safe wiring. The devices undergo three intensive tests before delivery to ensure quality and performance.

Advantages in Operation

The S202-C4 provides reliable protection with high operational safety. The simple handling via the patented connection terminal reduces installation time and minimizes errors. Compliance with international standards enables use in various markets. Protection class IP20 ensures safe operation, as moving parts are protected against contact. The switching capacity of 6 kA ensures safe interruption during high short circuit currents.

General
Degree of protectionIP20
Nominal current4 A
Switching power6 kA
Number of poles2
Conductor cross section35 mm²
StandardsDIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077


Questions & answers

What is the delivery time of ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA?

The article ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS252001R0044 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA always at the best possible price. We can give you a discount of 2% on ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of ESL 2CDS252001R0044 S202-C4 fuse switch 4 A per M Compact 2-pole 6 kA we can offer you a price of 99,52 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
