ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA

Your rating:
Average rating
product review for ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA
( 4.3 / 5 ) 3 ratings

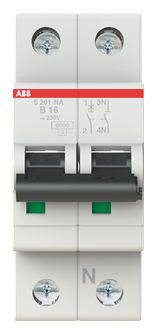

ESL 2CDS251103R0165
This image may differ from the desired article.
ESL 2CDS251103R0165ESL 2CDS251103R0165ESL 2CDS251103R0165
46,17 EUR
( 54,94 EUR incl. VAT )
≈ £38.64  |  ≈ $50.74
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA
Lieske Part No.:436068
Mfg Part No: 2CDS251103R0165
UPC/EAN: 4016779531610
Weight:0.22 kg
Type:S201-B16NA
Graduated prices net
From piecesPrice per pieces
1045,13 EUR
2544,09 EUR
5043,05 EUR
7542,01 EUR

Product information for ESL 2CDS251103R0165:

The S201-B16NA circuit breaker from the S 200 series by ESL is a 1-pole circuit protection switch with a rated current of 16 A, specifically designed for use in electrical installations. It provides protection for cables and wiring against overload and short-circuit in accordance with standards DIN VDE 0100-430 and DIN VDE 0100-530. The device is intended for use in indoor electrical systems and complies with construction regulations DIN VDE 0641-11 as well as IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, and UL1077. The patented connection terminal enables secure and easy wiring via a pressure plate, accelerating installation and enhancing connection reliability.

Applications

The S201-B16NA is intended for use in indoor electrical distributions, particularly in residential and commercial buildings. It protects electrical wiring and consumers against excessive loading and short-circuit currents. Compliance with standards DIN VDE 0100-430 and DIN VDE 0100-530 ensures adherence to regulations for the installation of electrical systems. Certifications according to IEC/EN 60898-1 and IEC/EN 60947-2 make the device suitable for use in various countries, while the UL1077 certification enables use in the USA.

Functions and Equipment in Detail

The device features a patented connection terminal that enables secure and easy connection of wiring. The pressure plate ensures stable contact, minimizing the risk of loosening or poor connections. The wiring entry is positioned above the phase bar connection opening, simplifying wiring and improving visibility of connections. The terminal allows direct connection of conductors with a cross-section up to 35 mm², while maintaining the insulation of the conductors in protection class IP20.

Technology Explained Simply

The circuit breaker operates on the principle of thermal-magnetic protection. In case of overload, a bimetal strip heats up and deforms, interrupting the circuit. In the event of a short-circuit, a high current generates an electromagnetic impulse that also triggers the switch. The combination of thermal and magnetic protection enables precise response to different types of faults. Protection class IP20 means the device is protected against contact with fingers and against solid foreign objects with a diameter greater than 12.5 mm, but not against water or dust.

Compatibility and Accessories

The S201-B16NA is part of the S 200 series and can be combined with other devices in this series to create complete distribution systems. The extensive accessory range includes various connection and mounting components suitable for integration into existing installations.

Mounting and Installation

Installation is carried out in a suitable distribution box or switchgear enclosure. The connection terminal allows direct connection of conductors with a cross-section up to 35 mm². The insulation of the conductors remains intact, as the terminal is designed for connection with insulated conductors. The wiring entry is positioned above the phase bar connection opening, simplifying wiring. Mounting is done using the integrated pressure plate, ensuring a secure and stable connection.

Advantages in Operation

The S201-B16NA provides reliable protection for electrical wiring and consumers. The patented connection terminal reduces installation time and increases connection safety. Compliance with international standards enables use in various markets. Triple quality inspection before shipment ensures high product quality and operational reliability. Protection class IP20 ensures operational safety indoors, although use in outdoor environments is not intended.

General
Nominal current16 A
Degree of protectionIP20
Connection cross section35 mm²
Compliance with standardsDIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077
Connection typepatented connection terminal with pressure plate
Number of poles1-pole
Product seriesS 200


Questions & answers

What is the delivery time of ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA?

The article ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS251103R0165 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA always at the best possible price. We can give you a discount of 2% on ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of ESL 2CDS251103R0165 S201-B16NA fuse switch 16 A per M compact 1-pole+NA we can offer you a price of 45,13 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
