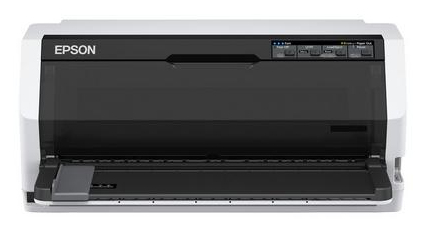

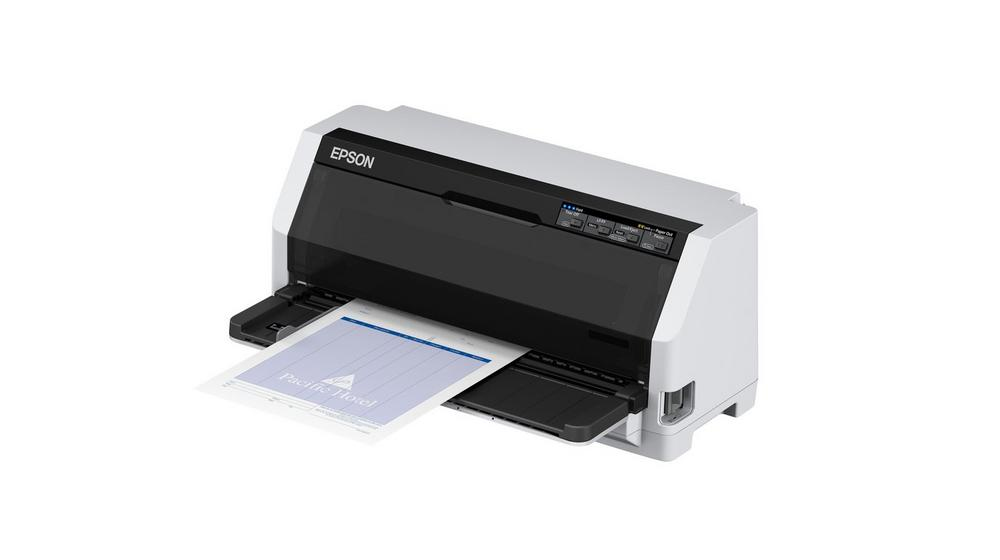

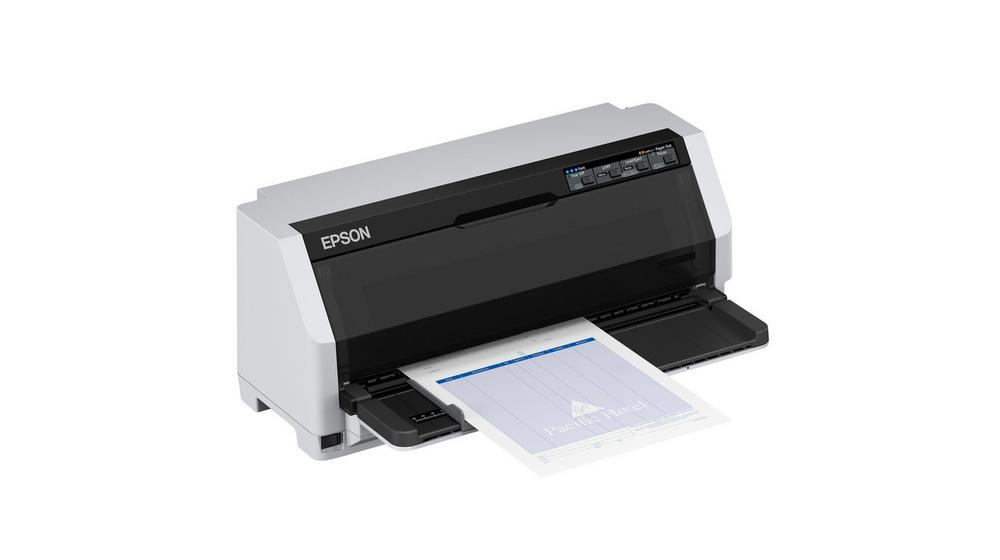

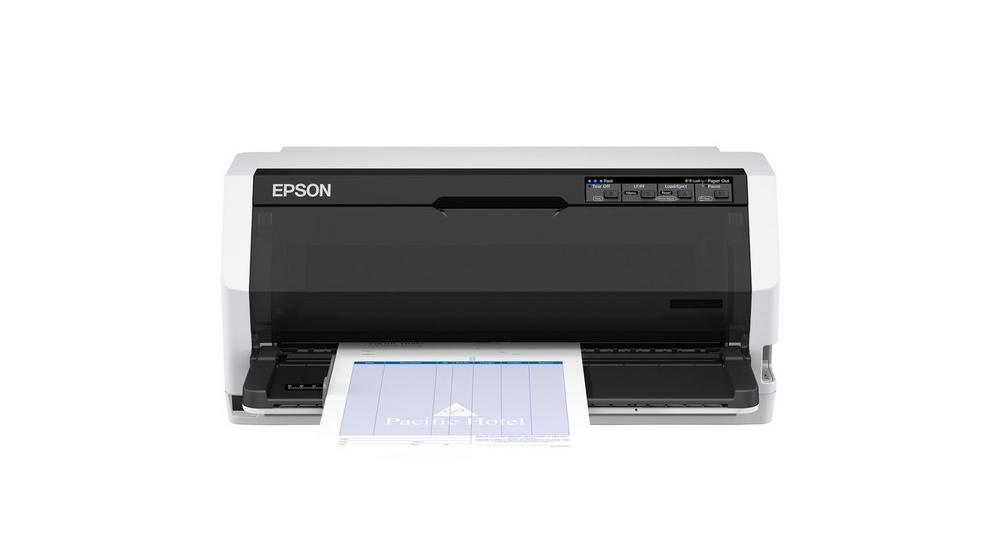

Epson LQ-690 II dot matrix printer content_copy

Fast and reliable dot matrix printing with the Epson LQ-690II. Its robust and modern design fits perfectly into any environment. Designed with a focus on productivity, the LQ-690II is a particularly reliable dot matrix printer that offers impressive ribbon capacity. It is fast, compact and robust. Its modern design allows for seamless integration into any work environment, whether office or warehouse.

Highlights

• Epson dot matrix printer LQ-690II with parallel and USB interface
• High printing speed of up to 487 characters/sec. (10 cpi), multi-layer forms with 1 + 6 copies
• High print quality with 106 columns of 24 needles
• Combined performance of long print head life and MTBF of 20,000 hours
• Robust housing that can withstand high humidity and heat conditions

Consumables

• Consumable highlights: Epson ribbon C13S015610

Product type

• standard printer
• ear category (ElektroG): relevant, category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C

Specifications

• print function

Printer

• compatible operating systems: Windows
• Printing technology: Needle
• Print speed monochrome ISO: 487 characters/s
• Print resolution height: 360 dpi
• Print resolution width: 180 dpi

Memory

• Internal memory: 128 KB

Connections

• USB standard: 2.0
• Data interfaces: USB host, parallel port

Power supply

• mains
• input voltage: 240 V
• power consumption operation: 38 W
• power consumption standby: 3 W

Basic characteristics

• Color: gray, black
• Height: 211 mm
• Length/depth: 301 mm
• Width: 480 mm
• Weight: 6.8 kg

Scope of delivery

• EPSON LQ-690II
• power cable
• ribbon
• installation instructions
• software (CD)
• drivers and utilities (CD)
• operating instructions

Endurance
Print head	24-pin
Print head life	400 million characters
Ribbon life	10 million characters
Mean time between failures (MTBF)	20000 h
Features
Product colour	Black, White
Buffer size	128 KB
Sound pressure level (printing)	59 dB
Country of origin	Indonesia
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Paper handling
Paper feed	Manual, Pull tractor
Paper tray media types	Envelopes, Labels, Plain paper, Roll
Continuous paper thickness range	0.065 - 0.49 mm
Label thickness range	0.16 - 0.19 mm
Multi-part paper thickness range	0.12 - 0.49 mm
Single sheet thickness range	0.065 - 0.15 mm
Ports & interfaces
Standard interfaces	Parallel, USB 2.0
Power
Power consumption (typical)	38 W
Power consumption (standby)	3 W
Printing
Maximum resolution	4800 x 1200 DPI
Maximum printing width (columns)	106
Maximum print speed	487 cps
Maximum print speed (draft)	366 cps
Maximum print speed (LQ)	121 cps
Maximum number of copies	7 copies
Built-in barcodes	CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Character sets	ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8
Colour
System requirements
Bundled software	Epson Status Monitor
Windows operating systems supported
Weight & dimensions
Width	480 mm
Depth	301 mm
Height	211 mm
Weight	6.8 kg

---
