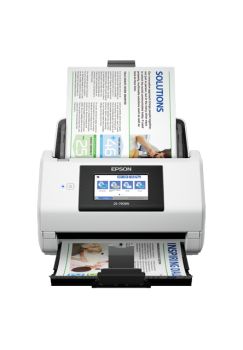

EPSON WorkForce DS-790WN content_copy

High-speed network scanner with standalone features for efficient document digitization and distribution in multi-user environments. Easy-to-use, A4 high-speed auto-duplex network scanner. Save files directly to a variety of destinations without having to connect to a computer. System administrators can take control of the device remotely and set up and authenticate user accounts using LDAP. The 10,9 cm ( 4,3 inch ) touchscreen allows for control panel configuration for increased efficiency.Advanced AuthenticationPrevent unauthorized access to the scanner or use of unauthorized features with a range of authentication methods, including ID cards (card reader not included), login credentials or PIN Codes. For advanced security options, use Epson WebConfig and Document Capture Pro Server? Authentication Edition.ScanWay - Standalone ScanningForward scanned documents directly to the right destination without having to connect to a computer with the 10.9 cm color touchscreen. Scan directly to network and cloud folders, email addresses, or USB memory sticks.ConnectivityThe DS-790WN offers a variety of connectivity options, such as USB 3.0, Wi-Fi, Wi-Fi Direct, and Gigabit Ethernet. Additionally, it supports multiple platforms including Windows, Mac OS, iOS, Android, Chromebook, and Citrix. Scan from a smartphone or tablet using the Epson Smart Panel app.ReliabilityA scan volume of up to a maximum of 7,000 pages per day and integrated sensors for detecting paper jams, double feeds and dirt on the document glass help ensure that you receive high-quality documents can be safely recorded.

Highlights

• High-speed network scanner Epson WorkForce DS-790WN
• Scan speed of up to 45 pages/minute
• Scan resolution of up to 600 x 600 dpi
• USB 3.0, Wi-Fi, Wi-Fi Direct, Gigabit Ethernet
• ScanWay - Standalone -Scan directly to network, cloud, email or USB stick - no computer required
• Advanced authentication features - Set up multiple user accounts locally or remotely (supports LDAP)
• Large integrated display - 10.9cm color touchscreen with customizable presets and layout

Product type

• scanner
• ear category (ElektroG): relevant, category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Scanner

• color depth: 30 bit
• optical resolution width: 600 dpi
• optical resolution height: 600 dpi
• document feeder type: DADF/SPDF
• Document feeder format: A4
• Document feeder pages: 100
• Simplex scanning speed max: 45 images/min
• Duplex scanning speed max: 45 images/min
• Scannable paper formats: A3 (stitching), A4, A5, A6 (postcard), A8, B5, B6, C6
• Scan To: Scan to PC, Scan to Email, Scan to FTP, Scan to Sharepoint, Scan to Folder, Scan to Cloud, Scan to USB Stick, Scan to Image, Scan to Text (OCR), Scan to PDF file
• scannable paper weight min: 27 g/m²
• scannable paper weight max: 413 g/m²
• Scanner highlights: Maximum document size ADF: 215.9 mm x 6,096 mm (horizontal x vertical)

Ports

• USB standard: USB 3.0 (USB 3.2 Gen 1)
• Data interfaces: USB host

Display

• Display highlights: Diagonal: 10.9 cm
• Display technology: LCD
• Color display
• Touch display

Power supply

• Mains
• Input voltage: 100 V
240 V

• Power consumption Operation: 15 W
• Power consumption Standby: 1.5 W

Data transmission

• Ethernet standard: 10/100/1000 MBit/s
• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3 > Basic properties
• Color: white, black
• Height: 16.7 cm
• Length/Depth: 16.9 cm
• Width: 29.6 cm
• Weight: 3.7 kg

Scope of delivery

• Epson WorkForce DS-790WN
• External power supply with power cable
• USB 3.0 cable
• Driver and Utilities (CD)
• Quick start guide

Design
Scanner type	Sheet-fed scanner
Product colour	Black, White
Display	LCD
Display diagonal	10.9 cm (4.3")
Touchscreen
Colour display
Built-in display
Input capacity
Auto document feeder (ADF) input capacity	100 sheets
Logistics data
Products per pallet	48 pc(s)
Country of origin	Indonesia
Products per pallet (UK)	60 pc(s)
Harmonized System (HS) code	84716070
Network
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi
Ethernet LAN
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Other features
Image formats supported	BMP, JPEG, TIFF, PNG
Packaging content
Bundled software	Document Capture Pro 2.0, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
Quick start guide
Packaging data
Quantity per pack	1 pc(s)
Package width	270 mm
Package depth	370 mm
Package height	325 mm
Package weight	4.97 kg
Paper handling
Scanning media types supported	Business Card, Envelopes, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size	A4
ISO A-series sizes (A0...A9)	A4, A5, A6, A8
ISO B-series sizes (B0...B9)	B5, B6
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Letter
Legal
Performance
Daily duty cycle (max)	7000 pages
Scan to	E-mail, FTP, Software, Network folder, USB
Scan drivers	TWAIN, SANE, WIA, ICA, ISIS
Ports & interfaces
USB port
Power
Power supply type	AC
Power consumption (typical)	15 W
Power consumption (standby)	1.5 W
AC input frequency	50 - 60 Hz
Input voltage	100 - 240 V
Scanning
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Input colour depth	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Output greyscale depth	8 bit
Duplex scanning
Weight & dimensions
Width	296 mm
Depth	212 mm
Height	217 mm
Weight	3.7 kg

---
