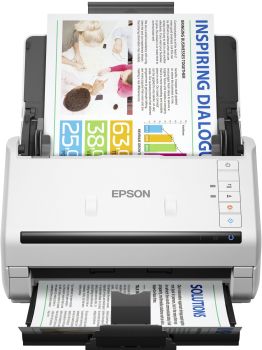

Epson WorkForce DS-770II document scanner content_copy

Compact scanner with sheet feed and innovative intelligent functions to efficiently capture many documents in a short time. With powerful media management and innovative intelligent functions that ensure a high level of data integrity, the Epson WorkForce DS 770II is designed for maximum efficiency and easy integration into the Company processes aligned. An automatic document feeder for 100 pages and high scanning speeds of up to 45 pages/min. or 90 images/min. enable the rapid capture, indexing, storage and distribution of business documents.

Highlights

• EPSON WorkForce DS-770II single sheet scanner
• scanning speed up to 45 pages/min. or 90 images/min.
• Scan resolution up to 600 x 600 dpi
• USB 3.0 connectivity, duplex scan, double feed detection
• Delicate document mode
• Active roller feed system, automatic scan mode

Product type

• Scanner
• ear category (ElektroG): relevant, Category 6: small devices of IT and telecommunications technology, small devices of IT and telecommunications technology B2C

Scanner

• color depth: 30 bit
• optical resolution width: 600 dpi
• optical resolution height: 600 dpi
• document feeder type: ADF
• document feeder format: A4
• Document feeder pages: 100
• Scan speed Simplex max: 45 pages/min
• Scan speed Duplex max: 90 images/min
• Scannable paper formats: A4, A5, A6 (postcard), B5, B6, Letter, Legal, Executive
• Scan To: Scan on PC, Scan to Image, Scan to PDF, Scan to Email, Scan to FTP, Scan to Sharepoint, Scan to Printer, Scan to Network, Scan to Folder, Scan to Cloud
• scannable paper weight min: 27 g/m²
• scannable paper weight max: 413 g/m²

Connections

• USB standard: USB 3.0 (USB 3.2 Gen 1)

Power supply

• Mains
• Input voltage: 240 V

Basic properties

• Color: Light gray, black
• Height: 176 mm
• Length/depth : 169 mm
• Width: 196 mm
• Weight: 3.7 kg

Scope of delivery

• Epson WorkForce DS-770II
• Drivers and utilities (CD)
• Power cable
• USB cable
• Installation instructions

Design
Scanner type	Sheet-fed scanner
Product colour	White
Display	LCD
Built-in display
Input capacity
Standard input capacity	100 sheets
Auto document feeder (ADF) input capacity	100 sheets
Logistics data
Products per pallet	63 pc(s)
Country of origin	Indonesia
Pallet gross weight	0 g
Products per pallet (UK)	84 pc(s)
Pallet weight (UK)	0 g
Harmonized System (HS) code	84716070
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Other features
Output resolutions	75, 100, 150, 200, 240, 300, 600, 1200 dpi
Image formats supported	JPEG, TIFF
Packaging content
Cables included	AC
Bundled software	Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6
Warranty card
Drivers included
Packaging data
Quantity per pack	1 pc(s)
Package width	250 mm
Package depth	365 mm
Package height	285 mm
Package weight	4.58 kg
Paper handling
Scanning media types supported	Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size	A4
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan area (ADF)	215.9 x 6096 mm
Minimum scan area (ADF)	50.8 x 50.8 mm
Letter
Legal
Performance
Light source	ReadyScan LED
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	7000 pages
Scan to	E-mail, FTP, Software, Print, Network folder
Scan drivers	TWAIN, WIA, ISIS
Ultrasonic sensor
Ports & interfaces
USB version	3.2 Gen 1 (3.1 Gen 1)
USB port
Power
Power supply type	AC
Power consumption (off)	0.1 W
Scanning
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Input colour depth	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Output greyscale depth	8 bit
Output monochrome depth	8 bit
ADF scan speed (b/w, A4)	45 ppm
ADF scan speed (colour, A4)	45 ppm
Duplex ADF scan speed (b/w, A4)	90 ipm
Duplex ADF scan speed (colour, A4)	90 ipm
Colour scanning
Duplex scanning
System requirements
Compatible operating systems	Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 und höher, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8, Windows 8 (32/64 Bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64 Bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista, 64-Bit-Version, Windows Server 2003 R2, Windows XP Professional x64 Edition
Windows operating systems supported	Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows RT, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP Professional x64
Server operating systems supported	Windows Server 2008, Windows Server 2008 x64, Windows Server 2008 R2, Windows Server 2012 x64, Windows Server 2012 R2, Windows Server 2003 R2
Mac operating systems supported
Linux operating systems supported
Weight & dimensions
Width	296 mm
Depth	169 mm
Height	176 mm
Weight	3.7 kg

---
