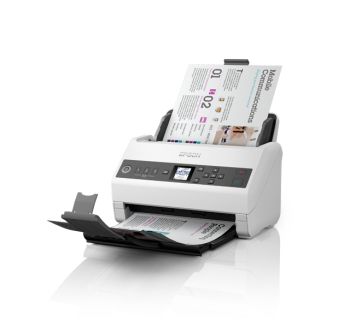

Epson WorkForce DS-730N document scanner content_copy

Unlock the potential of a connected workplace with this cost-effective and highly efficient standalone network scanner. Connect your business with this cost-effective and highly efficient standalone network scanner.
The WorkForce DS-730N is the perfect choice for managing documents in the company. It offers the option to save scans in different locations. With the click of a button, you can capture, convert, and distribute documents throughout your organization.

Highlights

• Standalone network scanner: Use the potential of a networked workplace
• Speed without loss of control: the choice is yours: slow mode or scanning documents at speeds of up to 40 ppm (80 ipm)
• Scan resolution up to 600 x 600 dpi
• USB 2.0 Type B, Ethernet interface (1000 Base-T/100-Base TX/10-Base-T)
• Integrated display: Easy-to-use 1.44 inch (3.65 cm) color LCD display

Product type

• Scanner
• ear category (ElektroG): relevant, Category 6: small devices in IT and telecommunications technology, small devices in IT and telecommunications technology B2C

scanner

• optical resolution height: 600 dpi
• scanning speed duplex max: 40 pages/ min
• Scan To: Scan to Image, Scan to Cloud, Scan to Email, Scan to FTP, Scan to PC, Scan to PDF File, Scan to Sharepoint

Ports

• USB standard: 2.0

Display

• Display technology: LCD
• Color display

Data transmission

• Ethernet standard: 10/100/1000 Mbit/s

Basic features

• Color: Gray
• Height: 167 mm
• Length/depth: 169 mm
• Width: 296 mm
• Weight: 3.6 kg

Scope of delivery

• Epson WorkForce DS-730N document scanner
• power cable
• setup instructions
• power supply
• USB cable
• drivers and utilities (CD)

Design
Scanner type	Sheet-fed scanner
Product colour	Black, Grey
Display	LCD
Display diagonal	3.81 cm (1.5")
Colour display
Built-in display
Input capacity
Auto document feeder (ADF) input capacity	100 sheets
Logistics data
Products per pallet	48 pc(s)
Country of origin	Indonesia
Pallet gross weight	0 g
Products per pallet (UK)	60 pc(s)
Pallet weight (UK)	0 g
Harmonized System (HS) code	84716070
Network
Ethernet LAN
IPv6 support
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Other features
Output resolutions	75, 100, 150, 200, 240, 300, 600, 1200 dpi
Image formats supported	BMP, JPEG, TIFF, PNG
Cabling technology	10/100/1000Base-T(X)
Packaging content
Cables included	AC
Bundled software	Epson Device Admin (EDA), Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager, Epson Scan 2, Webbrowser-Schnittstelle
Packaging data
Quantity per pack	1 pc(s)
Package width	270 mm
Package depth	370 mm
Package height	320 mm
Package weight	4.93 kg
Paper handling
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size	A4
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5, B6
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Letter
Legal
Performance
Sensor type	CIS
Light source	ReadyScan LED
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	4500 pages
Scan to	E-mail, FTP, Network folder
Scan drivers	TWAIN, ISIS, SANE, WIA, ICA
Password protection
Ultrasonic sensor
Ports & interfaces
USB version	2.0
USB connector type	USB Type-B
USB port
Power
Power supply type	AC
Power consumption (typical)	14 W
Power consumption (off)	0.1 W
AC input frequency	50 - 60 Hz
Input voltage	100 - 240 V
Power consumption (sleep)	1.5 W
Sleep mode
Scanning
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Input colour depth	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Output greyscale depth	8 bit
Output monochrome depth	8 bit
ADF scan speed (b/w, A4)	40 ppm
ADF scan speed (colour, A4)	40 ppm
Black/white scanning colour modes	Monochrome
Colour scanning
Duplex scanning
Weight & dimensions
Width	296 mm
Depth	169 mm
Height	167 mm
Weight	3.6 kg

---
