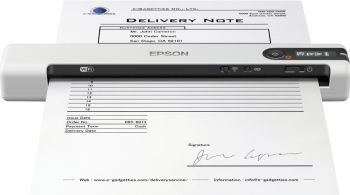

EPSON WorkForce DS-80W mobile scanner content_copy

The WorkForce DS-80W is easy to use, set up and transport thanks to its space-saving design. It can be powered by its battery without an external power source, making organization even easier. The scanner automatically detects whether it is in WiFi or USB mode. The included OCR and document capture software creates editable text files and searchable PDF files. TWAIN drivers enable seamless integration of third-party applications.

Highlights

• Epson document scanner WorkForce DS-80W
• Scan speed of up to 4 seconds/page
• Scan resolution up to 600 x 600 dpi
• WLAN, Hi-Speed USB
• Integrated battery for up to 300 scans/charge

Product type

• Document scanner
• ear- Category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C

Scanner

• optical resolution height: 600 dpi
• Scan To: scan to image, scan to PC , Scan to PDF file

Connections

• Data interfaces: USB host

Display

• Display technology: LCD

Data transmission

• WLAN
• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11 n - WiFi 4

Basic features

• Color: White
• Height: 34 mm
• Length/Depth: 47 mm
• Width: 272 mm
• Weight: 300 g

Scope of delivery

• Epson WorkForce DS-80W document scanner*
• USB cable
• Information text Scope of delivery: * The smartphone and notebook shown are not included in the scope of delivery, they only serve as an example of use.

Design
Scanner type	Handheld scanner
Product colour	White
Display	LCD
Colour display
Built-in display
Input capacity
Standard input capacity	1 sheets
Auto document feeder (ADF) input capacity	1 sheets
Logistics data
Products per pallet	360 pc(s)
Country of origin	China
Pallet gross weight	0 g
Master (outer) case length	360 mm
Master (outer) case height	320 mm
Master (outer) case width	350 mm
Master (outer) case gross weight	0 g
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	171 cm
Products per master (outer) case	10 pc(s)
Products per pallet layer	60 pc(s)
Products per pallet layer (UK)	60 pc(s)
Products per pallet (UK)	360 pc(s)
Pallet weight (UK)	0 g
Pallet length (UK)	120 cm
Pallet width (UK)	100 cm
Pallet height (UK)	171 cm
Master (outer) case GTIN (EAN/UPC)	8715946663005
Harmonized System (HS) code	84716070
Network
Wi-Fi
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 90%
Other features
Output resolutions	600 DPI
Image formats supported	BMP, JPEG, TIFF, MTIFF, PNG
Linear scan speed (metric)	Monochrome:4 s/page - Color:4 s/page measured with Size: A4 , Resolution: 200 / 300 dpi
Printer features	One keypress, RGB colour dropout, Skip blank page, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Automatic B/W colour original detection, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Advanced cropping feature for Auto size, Descreening
Scanner features	One keypress, RGB colour dropout, Skip blank page, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Automatic B/W colour original detection, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Advanced cropping feature for Auto size, Descreening
Box contents	USB cable
Interface	Wi-Fi Direct, USB 2.0 Micro-B
Packaging content
Cables included	USB
Bundled software	Document Capture Pro, Epson Scan 2
Packaging data
Quantity per pack	1 pc(s)
Package width	141 mm
Package depth	330 mm
Package height	67 mm
Package weight	597 g
Paper handling
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size	A4
Paper tray media weight	35 - 270 g/m²
Auto Document Feeder (ADF) media weight	35 - 270 g/m²
Performance
Sensor type	CIS
Light source	ReadyScan LED
Scan file formats	BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max)	300 pages
Scan drivers	TWAIN, SANE, WIA, ICA
Ports & interfaces
USB version	2.0
Standard interfaces	USB 2.0, Wireless LAN
USB port
Power
Power supply type	USB
Scanning
Maximum scan size	216 x 1828 mm
Optical scanning resolution	600 x 600 DPI
Input colour depth	48 bit
Output colour depth	24 bit
Input greyscale depth	16 bit
Output greyscale depth	8 bit
Output monochrome depth	8 bit
Scan speed (b/w, low res, A4)	4 sec/page
Scan speed (colour, low res, A4)	4 sec/page
Colour scanning
Duplex scanning
System requirements
Compatible operating systems	Mac OS 10.6+, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width	272 mm
Depth	47 mm
Height	34 mm
Weight	300 g

---
