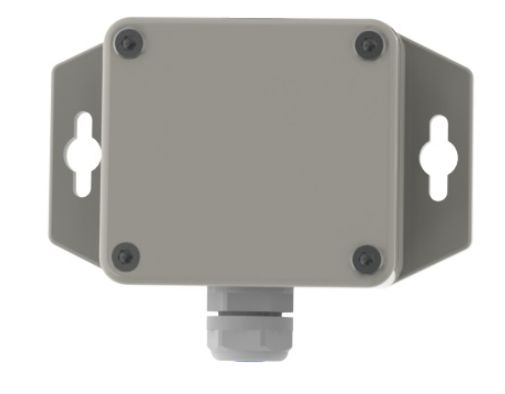

ELSYS ELT-2 outdoor sensor with internal antenna
Overview
A versatile and powerful LoRaWAN® wireless sensor.
The ELT-2 has the ability to solve almost any problem. It is housed in an IP67 housing, making it ideal for mounting outdoors or in extreme conditions. The ELT-2 can measure both analog and digital signals and can process up to two external sensors simultaneously.
Not only can you connect external sensors to the ELT-2, but it also has four internal sensors: temperature sensor, humidity sensor, accelerometer, and an air pressure sensor.
Outdoor and versatile
The ELT-2 is the ideal sensor for measurements in advanced locations or in extreme weather conditions. It is easy to install and configure to form your solution. ELT-2 has two generic inputs. You can configure ELT-2 for external temperature sensors, pulse counting, analog input 0-10V, digital input, water leak, switch, distance sensor, soil moisture sensor and many more options. ELT-2 can be equipped with additional modules to obtain additional functions such as external PT1000 sensors, load cell input or output control.
Internal antenna
The ELT-2 can be ordered with an internal antenna. This solution makes it easier to install the device and mount it anywhere. It doesn't matter which direction it is mounted, all directions are equally good.
In addition, it is even more waterproof and very difficult to break. Ideal if you want to mount the device in a container or similar areas where it could be exposed. Features Near Field Communication
All Elsys sensors are equipped with NFC for easy configuration with an Android phone. You can change the sample rate, data rate, encryption key, trigger, activation and much more. All changes can be made using our Sensor Settings application. The battery lasts up to 10 years.
Our sensors have a remarkably good battery life. With this sensor it can last up to 10 years. How long the battery actually lasts depends on the sampling interval, the transmission interval, the data rate and environmental factors.
!!! Battery not included and must be ordered separately!!! ADC module
The ADC module fits into the ELT-2 and is intended for connecting PT1000 platinum sensors or as a universal bridge amplifier. Install the ADC module in the ELT-2 to measure extreme temperatures or connect a load cell. EXT Module With the EXT module installed, the ELT-2 can be used as a Class C or Class A device. Add this module to the ELT-2 to control external sensors such as lightning, external power (o - 10V) or actuators/relays. ApplicationSmart cities Agriculture Industries Extreme weather conditions Exposed areas (e.g. containers) Technical data
!! see data sheet!!
