Elektra Tailfingen 2130 CG 532/6H wall-mounted plug 5p 6H Iso content_copy

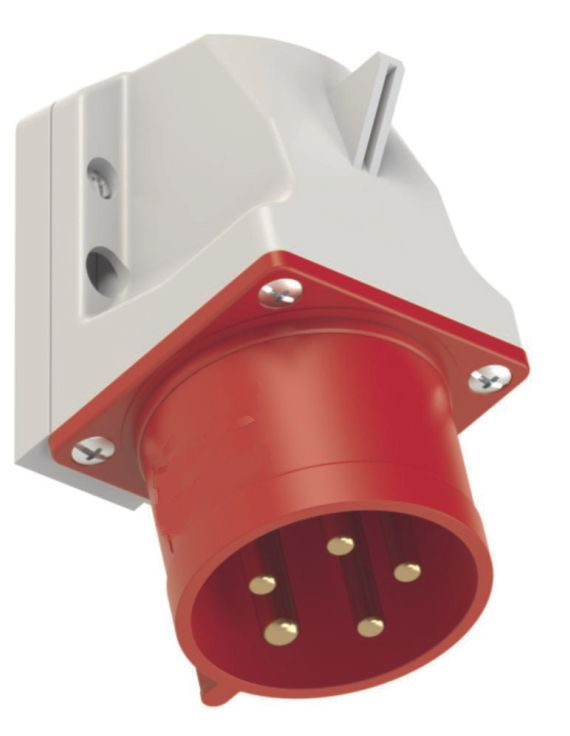

The wall-mounted plug from manufacturer Elektra Tailfingen, type CG 532/6H, is an industrial plug connector designed for use in installations with high electrical requirements. It features a rated current of 32 A and a rated voltage of 400 V, with operation specified for a frequency of 50/60 Hz. The plug connection is designed for 5 poles, enabling use in three-phase systems with protective earth and neutral conductor. The 6 h clock position defines the arrangement of the plug contacts within the device, ensuring unambiguous assignment and preventing incorrect insertion. The protection rating IP44 safeguards the plug against finger contact and splashing water from any direction, making it suitable for indoor environments with increased humidity.

Applications
This plug is intended for use in industrial and commercial installations, particularly in environments where a safe and reliable power supply is required for machines, tools, or large appliances. The IP44 protection rating makes it suitable for rooms with increased humidity, such as workshops, production facilities, or kitchen areas where splashing water may occur. It is not suitable for outdoor use or direct exposure to moisture, as IP44 does not provide complete waterproofing.

Functions and Features in Detail
The plug features a screw terminal connection method, ensuring a secure and durable connection with cables. The terminals are designed for cable mounting, although the exact cross-sectional area is not specified in the sources. The design as a wall-mounted plug means it is mounted directly onto a wall or panel, with the plug connection arranged at an angle to improve strain relief and save space. The terminal compartment cover is removable, facilitating maintenance and installation.

Technology Explained Simply
The designation 5P stands for five poles, typically consisting of three phase conductors, one neutral conductor, and one protective earth conductor. The rated voltage of 400 V corresponds to the standard for three-phase AC power in Europe. The rated current of 32 A allows powering of high-demand devices such as industrial machine tools or large refrigeration units. The protection rating IP44 means the plug is protected against finger contact (protection class 4) and splashing water from any direction (protection class 4). The 6 h clock position is a geometric designation that defines the contact positions within the plug, ensuring a unique and correct connection.

Compatibility and Accessories
The plug is designed as a CEE-type connector and is compatible with other devices having the same number of poles, current rating, and clock position. It can be combined with matching sockets and connectors of the same type. The sources do not mention any specific accessories included in the delivery; only the plug itself is supplied. The reference to also 3- and 4-pole variants in one source refers to other models, not this specific product.

Installation and Mounting
Mounting is done on a wall or panel, with the angled orientation of the plug connection providing better strain relief. The screw terminals allow for secure cable attachment. Installation must comply with applicable electrical installation regulations, particularly regarding grounding and cable cross-section matching. No specific tool requirements are indicated in the sources.

Operational Advantages
The plug provides a robust and reliable power supply for industrial applications. The IP44 protection rating safeguards against mechanical impact and splashing water, increasing service life. The screw terminals ensure a permanent connection that does not loosen under load. The angled orientation facilitates plug connection and reduces mechanical stress on cables. The 6 h clock position ensures unambiguous assignment, preventing incorrect insertion.
