Elektra Tailfingen 190653 ET PST6E test panel LCD,
|
9.235,22 EUR |
|||||||||||
|
( 10.989,91 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 693490 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 190653 | ||||||||||
| UPC/EAN: | 4018325541999 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

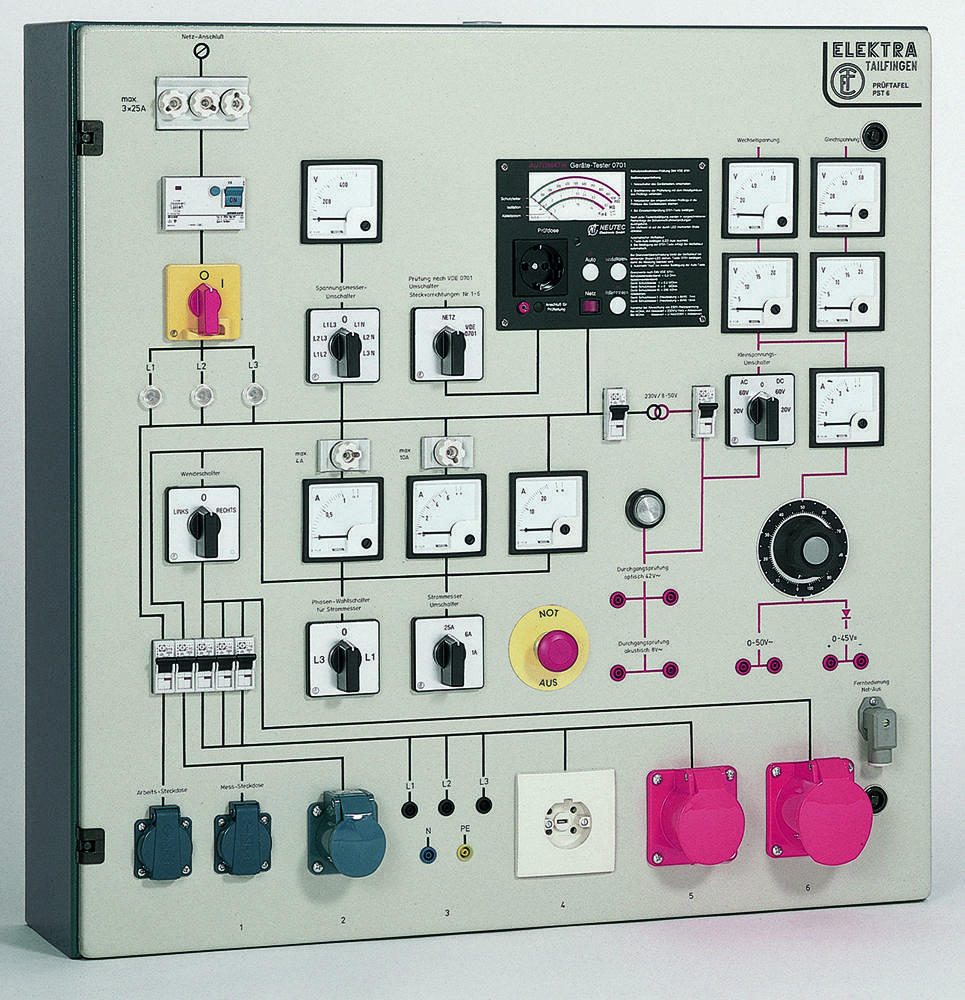

Product information for Elektra Tailfingen 190653:
. 1 emergency stop switch 3 x 25 A as main switch with
undervoltage release, lockable in the 0 position
. 1 emergency stop button
. 1 junction box with plug for external emergency stop button connection
. 1 residual current circuit breaker 4 x 25 A, tripping current 30 mA, for
alternating residual currents and pulsating direct residual currents
. 3 phase control lights L1, L2, L3
. 1 reversing switch 3 x 25 A
. 1 voltmeter switch for measuring
chain and phase voltages
. 1 voltmeter 0 - 500 V, 72 x 72 mm, class 1.5
. 1 ammeter 0 - 1/2 A, 72 x 72 mm, class 1.5,
with overload protection
. 1 ammeter 0 - 6/12 A, 72 x 72 mm, class 1.5,
with overload protection
. 1 ammeter 0 - 25/50 A, 72 x 72 mm, class 1.5
. 1 ammeter switch 0 - 1 A, 0 - 6 A, 0 - 25 A
. 1 measuring point switch for ammeter 0-L1-L2-L3
. 1 circuit breaker C 16 A, 1-pole
. 1 earthed socket 16 A, 230 V (measuring socket)
. 1 CEE socket 16 A, 3-pole, 230 V
. 3 circuit breakers C 16 A, 1-pole
. 1 USB charging station type A and C
. 1 CEE socket 16 A, 5-pin, 400 V
. 5 safety sockets 16 A, L1, L2, L3, N, PE
. 1 CEE socket 32 A, 5-pin, 400 V
. 1 circuit breaker B 16 A, 1-pin
. 1 earthed socket 16 A, 230 V (work socket)
. 1 safety transformer VDE 0551, 230 V/8-42-50 V/150 VA~
. 1 circuit breaker C 1 A, 1-pole, primary for transformer
. 1 circuit breaker C 4 A, 1-pole, secondary for transformer
. 1 single-phase toroidal transformer 230 V/0 - 230 V/3.15 A
. 1 ammeter 0 - 4/8 A, 72 x 72 mm, class 1.5
. 1 voltmeter 0 - 20 V, AC, 72 x 72 mm, class 1.5 .
1 voltmeter 0 - 60 V, AC, 72 x 72 mm, class 1.5
. 1 voltmeter 0 - 20 V, DC, 72 x 72 mm, class 1.5
. 1 voltmeter 0 - 60 V, DC, 72 x 72 mm, class 1.5 .
1 voltmeter switch 20 V AC-60 V AC-0-60V DC-20 V DC
. 2 safety sockets for taking the adjustable
alternating voltage 0 - 50 V
. 1 silicon bridge rectifier 10 A, residual ripple 48 %
. 2 safety sockets for the adjustable
DC voltage 0 - 50 V.
1 continuity test lamp 24 V~
. 2 safety sockets for optical continuity testing
. 1 buzzer 8 V~ for acoustic continuity testing
. 2 safety sockets for acoustic continuity testing
. 1 switch mains VDE 0701-VDE 0702 for switching the
socket outlets to protective measures testing
. 1 device tester
Type: PST6E-LCD
