Elektra Tailfingen 182154 PST 1 O test panel O
without device tester GE 0701/0702

Your rating:
Average rating
product review for Elektra Tailfingen 182154 PST 1 O test panel O without device tester GE 0701/0702
( 4.5 / 5 ) 82 ratings
Elektra Tailfingen 182154
This image may differ from the desired article.

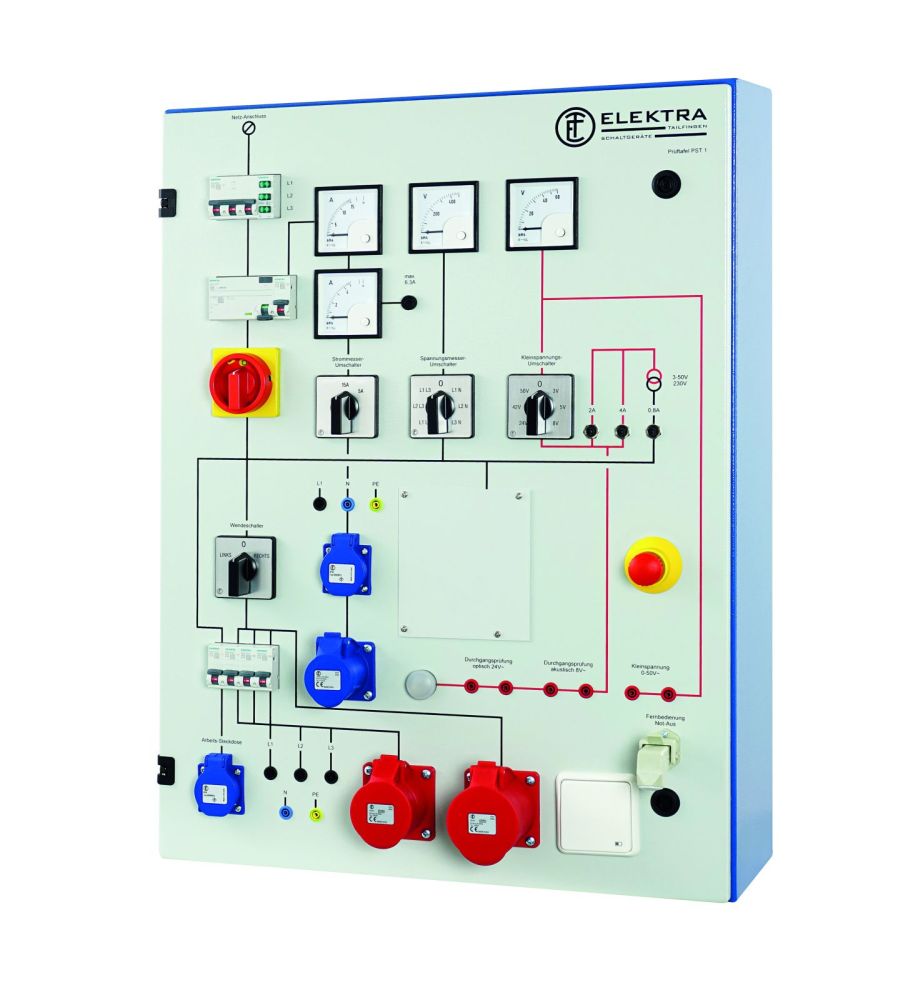

Elektra Tailfingen 182154Elektra Tailfingen 182154
4.402,68 EUR
( 5.239,19 EUR incl. VAT )
≈ £3,667.43  |  ≈ $4,829.74
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Elektra Tailfingen 182154 PST 1 O test panel O without device tester GE 0701/0702
Lieske Part No.:461439
Mfg Part No: 182154
UPC/EAN: 4018325548356
Weight:39 kg
Type:PST 1 O
Graduated prices net
From piecesPrice per pieces
24.237,58 EUR
44.072,48 EUR
63.907,38 EUR
83.742,28 EUR

Product information for Elektra Tailfingen 182154:

The PST 1 O test panel from Elektra Tailfingen is a comprehensive device for electrical testing and commissioning of equipment and systems in industrial and commercial applications. It serves as a central interface for the safe and controlled supply of electrical power to test objects and offers a wide range of measurement and protection functions. The panel is specifically designed for use in workshops, assembly areas, and maintenance work, where reliable and safe power supply is required for testing and inspections.

Applications

The PST 1 O is used in the electrical and machine engineering industry to test electrical devices, machines, and systems for functionality, safety, and correct power supply. It enables testing of devices under realistic operating conditions, with integrated safety functions such as residual current protection and emergency stop switch ensuring workplace safety. The panel is particularly suitable for commissioning new systems, maintaining existing systems, as well as for training and technical inspections.

Functions and Equipment in Detail

The test panel features a 3-pole circuit breaker C 25 A as main protection, safeguarding the entire system against overloads. An emergency stop switch with undervoltage release and lockable 0-position allows immediate power disconnection in emergencies. Additionally, an external emergency stop button can be activated via a connection socket, increasing safety for larger systems. A 4-pole residual current circuit breaker with a tripping current of 30 mA protects against dangerous fault currents, both alternating and pulsating direct fault currents.

For monitoring the mains voltage, three phase control lamps for L1, L2, and L3 are integrated. A selector switch with 3 x 25 A enables switching between different operating modes. Voltage measurement is performed via a selector switch displaying line-to-line and phase-to-neutral voltages, and a voltmeter with a range of 0 to 500 V, operating in a 72 x 72 mm display with accuracy class 1.5. For current measurements, two ammeters are available: one for 0 to 5/10 A and one for 0 to 15/30 A, each with 72 x 72 mm display and class 1.5, with the first equipped with overload protection. An ammeter selector switch allows selection between the two measurement ranges.

Technology Explained Simply

The integrated sockets and safety sockets offer various connection options. A protective earth socket (16 A, 230 V) and a CEE socket (16 A, 3-pole, 230 V) are connected via ammeters, as are three safety sockets (16 A, L1, N, PE). An additional protective earth socket (16 A, 230 V) serves as a work socket. For higher power demands, a CEE socket (16 A, 5-pole, 400 V) and a CEE socket (32 A, 5-pole, 400 V) are provided. Five safety sockets (16 A, L1, L2, L3, N, PE) enable safe power supply to multiple test objects simultaneously.

A safety transformer in accordance with VDE 0551 with a primary voltage of 230 V and secondary voltages of 3, 5, 8, 12, 24, 42, and 50 V, with a power rating of 100 VA~, enables supply of devices with low voltage. Three device protection switches (0.8 A primary, 2 A and 4 A secondary) protect the transformer. A low voltage selector switch allows selection of the desired output voltage, and a voltmeter (0 to 60 V, 72 x 72 mm, class 1.5) displays the current voltage. Two safety sockets are provided for low voltage output in the range of 0 to 50 V~.

Compatibility and Accessories

The test panel is equipped with a USB charging station supporting both Type A and Type C, enabling the use of modern devices during testing. For continuity testing, a continuity test lamp (24 V~) and a buzzer (8 V~) are integrated, connected via two safety sockets each. These functions serve for visual and acoustic testing of electrical conductivity in circuits and cables.

Mounting and Installation

The PST 1 O is designed as a stationary unit and is typically mounted on a wall or on a table. Installation requires a fixed connection to the electrical network, with the main fuse and residual current circuit breaker protecting the system against overloads and dangerous fault currents. Connections are clearly labeled, and control elements are arranged for easy access and clear overview.

Advantages in Operation

The test panel offers high flexibility due to the wide range of integrated functions, enabling comprehensive testing of electrical devices. The combination of measuring instruments, protection functions, and various connection options reduces the need for additional equipment. Clear operation and integrated safety technology increase efficiency and safety during work. The panel is designed for use in technical workshops and assembly areas, where reliable and safe power supply is required for testing and inspections.

General
Main fusecircuit breaker C 25 / 3-pole
Emergency stop switch3 x 25 A with undervoltage release, lockable in 0 position
Residual current circuit breaker4 x 25 A, tripping current 30 mA
Phase control indicatorsL1, L2, L3
Reversing switch3 x 25 A
Voltage meter selector switchFor interconnection and phase voltages
Voltage meter0 - 500 V, 72 x 72 mm, Class 1.5
Ammeter0 - 5/10 A, 72 x 72 mm, Class 1.5, with overload protection
Ammeter switch0 - 5 A, 0 - 15 A
Grounded socket16 A, 230 V, via ammeter
CEE socket16 A, 3-pole, 230 V, via ammeter
Safety sockets16 A, L1, N, PE, via ammeter
Circuit breakerC 16 A, 1-pole
USB charging stationType A and Type C
Safety transformerVDE 0551, 230 V/3-5-8-12-24-42-50 V, 100 VA~
Device protection switch0.8 A (primary for transformer)
Low-voltage switch0-3-5-8-12-24-42-50 V~
Pass-through test lamp24 V~
Buzzer8 V~ for acoustic continuity test
