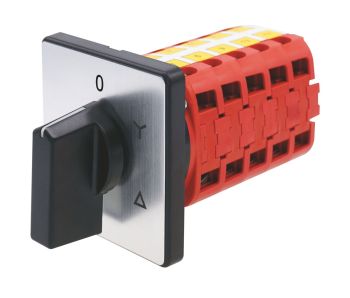

Elektra Tailfingen 146288 V3N YJ-F3-B-SI star-delta switch
|
124,45 EUR |
|||||||||||
|
( 148,10 EUR incl. VAT ) ≈ £104.16 | ≈ $139.26 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 491010 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 146288 | ||||||||||
| UPC/EAN: | 4018325052594 | ||||||||||
| Weight: | 1 kg | ||||||||||
| Type: | V3N YJ-F3-B-SI | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Elektra Tailfingen 146288:
Applications
This switch is designed for controlling contactors in installations where a star-delta switching method is required for motor start-up control. This is commonly used with larger three-phase motors to limit starting current and reduce stress on the power grid and the motor. The front mounting makes it especially suitable for installation in enclosures, distribution boxes, or control panels, where it is directly accessible to operators.
Functions and Features in Detail
The star-delta switch V3N YJ-F3-B-SI allows selection between various switching positions necessary for controlling contactors. It is designed for front mounting, ensuring quick and secure installation on the front panels of enclosures or control panels. The mechanical design is tailored to industrial environments, with the precise switching functions ensured by the specific construction of the switch.
Technology Explained Simply
A star-delta switch controls the switching states in a star-delta configuration, a method used to reduce starting current in three-phase motors. Initially, the motor is connected in star configuration to reduce current draw during start-up. Once nominal speed is reached, the switch is changed to delta configuration to supply the motor under normal operating conditions. The V3N YJ-F3-B-SI switch mechanically controls these state transitions, with the exact number of positions and switching logic defined by the device's technical specifications.
Compatibility and Accessories
The switch is designed for use in contactor control circuits and is used in combination with contactors specifically designed for star-delta switching. It is part of Elektra Tailfingen's VN series, optimized for front mounting. Exact compatibility with specific contactor types or accessories is described in the manufacturer's technical documentation; however, no further specific information regarding additional components or alternatives is available in the sources.
Installation and Mounting
Mounting is performed on the front panel of enclosures or control panels. The front mounting design allows for easy and secure installation without additional mounting aids. The exact installation instructions, including required drilling or fastening elements, are included in the manufacturer's technical documentation. Installation is typically carried out by qualified personnel in accordance with applicable safety regulations.
Operational Advantages
The switch provides reliable and mechanically stable control of switching states in star-delta circuits. Front mounting simplifies integration into existing enclosures and allows direct operation by the user. Its use in industrial applications ensures long service life and high operational safety under normal operating conditions.
Questions & answers
What is the delivery time of Elektra Tailfingen 146288 V3N YJ-F3-B-SI star-delta switch ?
The article Elektra Tailfingen 146288 V3N YJ-F3-B-SI star-delta switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Elektra Tailfingen 146288 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Elektra Tailfingen 146288 V3N YJ-F3-B-SI star-delta switch always at the best possible price. We can give you a discount of 2% on Elektra Tailfingen 146288 V3N YJ-F3-B-SI star-delta switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Elektra Tailfingen 146288 V3N YJ-F3-B-SI star-delta switch we can offer you a price of 118,85 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
