Effekta DCXR3230485K1402

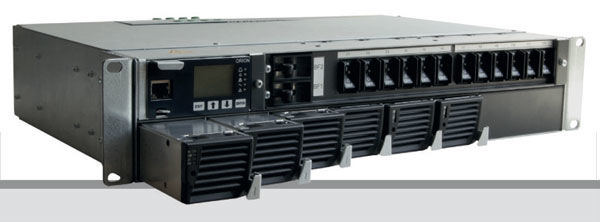

Effecta UPS DC power supply ST802, 5100W, 2U, 48V, Orion Controller

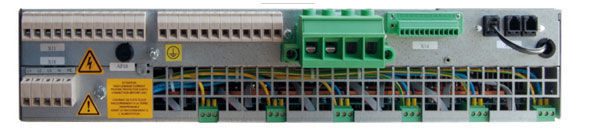

*Order-related, cannot be canceled*, DC power supply ST802, 5100W 2U, 48V, Orion Controller Consisting of: - Shelf version ST2037,1 cm ( 802 inch ) - 6x 850W rectifier max. 6 pieces GR850) - Battery connection: 2x 100A - DC outputs: 2x 6A , 9x 16A, 1x25A Technical specifications: System rack with pre-wired slots for accommodating, supplying and communicating a maximum of six redundant parallel 850W rectifiers. SNMP-capable controller "Orion" for monitoring, signaling and controlling the system. Including freely programmable relay contacts, LC display and fuse monitoring. Terminal connections for: AC input: 3L + N + PE (3- or 1-phase operation selectable) DC output: 2 x 6A, 9 x 16A, 1 x 25A (standard configuration) Battery: 2 x fuse 100A Signaling: 2 x potential-free relay contacts executed on screw terminal, divided into "UA" + "NUA" (urgent + non-urgent alarm) Load shedding contactor: 1 x LVD 100 A Input voltage: 3 x 230 VAC (80 to 300 VAC) Output voltage: -48 VDC (standard: + pole grounded ) Voltage range: 42 to 58 VDC, nominal 55.2 VDC Output current DC: 106.26 A at 48V Power rectifier, non-redundant: 5100W Efficiency: >95.2% Temperature range: - 40 to + 70°C Cooling: temperature-controlled fan Dimensions /Weight: 19 x 2U x 300mm deep, approx. 10.6kg
