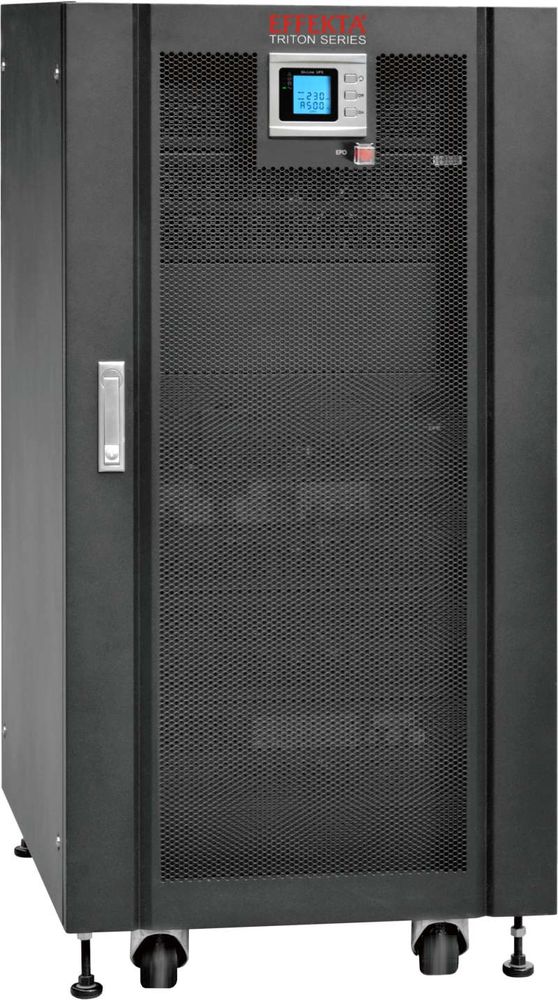

Effekta ACX33TRS40K0HM07
Effecta online UPS, 40000VA, 7min at cos phi 0.7, Triton 3/3

*Order-related, non-cancellable*, UPS Triton 40 kVA, online continuous. 07 min., 3/3-phase, black, modular design with 1 module each 40kVA/36kW RS232, RS485 IGBT rectifier LAN-Powershut+M2505 cable with the following specifications: UPS classification: online continuous converter (VFI-SS-111) according to IEC 62040-3 Rectifier: IGBT rectifier bridge Input power factor: 0.99 Mains interference: < % THD (current) Input voltage: 3 x 380/400/415 VAC +15% / -45% Input frequency: 50 / 60 Hz, +15% / -20% Inverter: IGBT inverter Output power: 40 kVA / 36 kW Output voltage: 3 x 380/400/415 VAC, adjustable Output frequency: 50 Hz ± 1% Overload capacity: up to 125% for 10 min., 125% for 10 min ., 150% for 1 min. Rated output current at 400 V: 52 A Short circuit current: 116 A (200 ms) Crest factor: 3:1 Static bypass: Electronic thyristor switch, uninterruptible Overload capacity: 150% continuous, 1000% for 20ms Batteries: 432V /33Ah, maintenance-free lead-fleece batteries with 10 years expected service life Battery type: 36 pieces EFFEKTA BTL12-33 Charging current: max. 10 A Autonomy time: 07 minutes at nominal load and cos phi 0.8 General: UPS dimensions: 1600 x 600 x 780 ( HxWxD in mm) Weight UPS: 201 kg Weight UPS including internal batteries: 573 kg Working temperature: 0 - 40°C, battery max. 20° C Heat loss power: 1600 W Cooling air flow: 981 cbm/h Noise level: max. 55dB(A) Protection class: IP20 Color: RAL 9004 Radio interference suppression: according to DIN EN 62040-2, Class C3 Performance features: easy to maintain due to modular design, therefore very low MTTR value IGBT rectifier very large input voltage window electronic bypass, manual service bypass extensive communication interfaces (2 x RS232, 2 x RS485 , EPO, 2 x slot for relay card or SNMP, parallel port)
