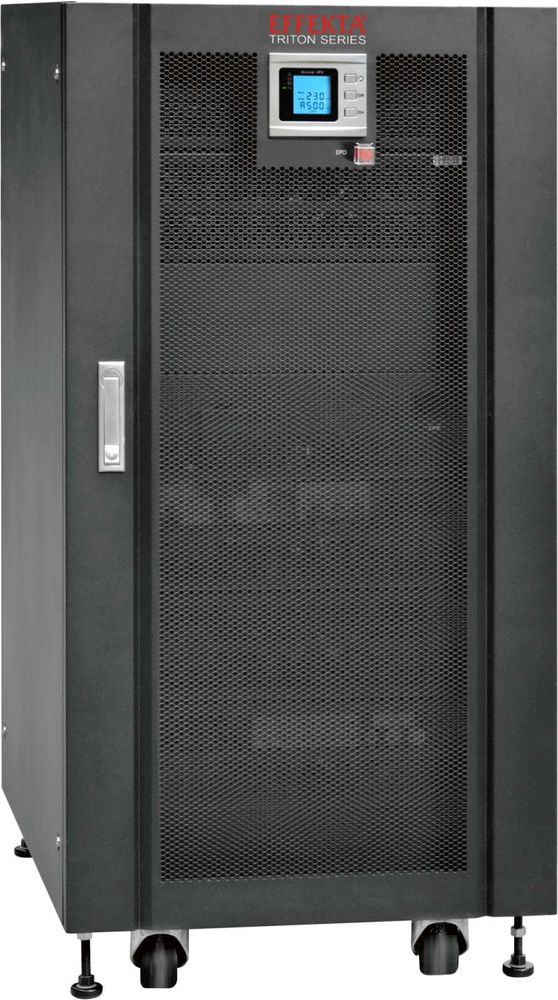

Effekta ACX33TRS20K0HM24
Effecta online UPS, 20000VA, 24min at cos phi 0.7, Triton 3/3

*Order-related, non-cancellable*, UPS Triton 20 kVA, online continuous. 24 min., 3/3-phase, black, modular design with 1 module each 20kVA/18kW RS232, RS485 IGBT rectifier LAN-Powershut+M2505 cable with the following specifications: UPS classification: online continuous converter (VFI-SS-111) according to IEC 62040-3 Rectifier: IGBT rectifier bridge Input power factor: 0.99 Mains interference: < % THD (current) Input voltage: 3 x 380/400/415 VAC +15% / -45% Input frequency: 50 / 60 Hz, +15% / -20% Inverter: IGBT inverter Output power: 20 kVA / 18 kW Output voltage: 3 x 380/400/415 VAC, adjustable Output frequency: 50 Hz ± 1% Overload capacity: up to 125% for 10 min., 125% for 10 min ., 150% for 1 min. Rated output current at 400 V: 26 A Short-circuit current: 92 A (200ms) Crest factor: 3:1 Static bypass: Electronic thyristor switch, uninterruptible Overload capacity: 150% continuous, 1000% for 20ms Batteries: 432V/ 33Ah, maintenance-free lead-fleece batteries with 10-year expected service life Battery type: 36 pieces EFFEKTA BTL12-33 Charging current: max. 6 A Autonomy time: 24 minutes at nominal load and cos phi 0.8 General: UPS dimensions: 1600 x 600 x 780 (HxWxD in mm) Weight UPS: 189 kg Weight UPS including internal batteries: 561 kg Working temperature: 0 - 40°C, battery max. 20° C Heat loss power: 800 W Cooling air flow: 643 cbm/h Noise level: max. 55dB(A) Protection class : IP20 Color: RAL 9004 Radio interference suppression: according to DIN EN 62040-2, Class C3 Performance features: easy to maintain due to modular design, therefore very low MTTR value IGBT rectifier very large input voltage window electronic bypass, manual service bypass extensive communication interfaces (2 x RS232, 2 x RS485, EPO, 1 x slot for relay card or SNMP, parallel port)
