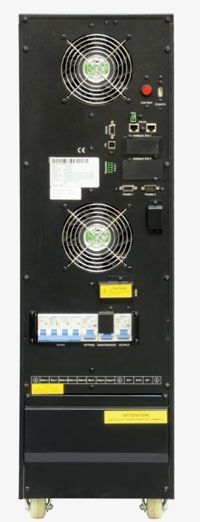

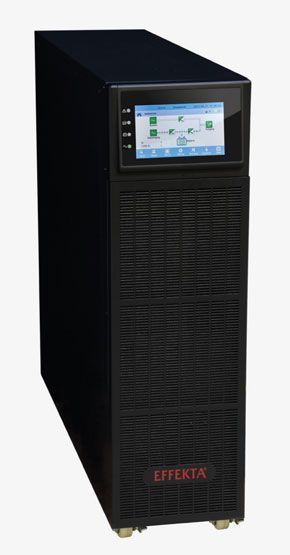

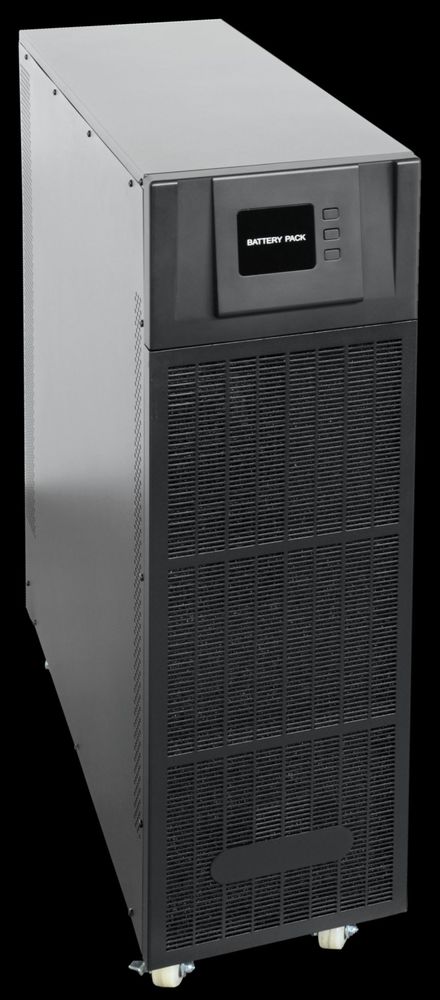

*Order-related, non-cancellable*, UPS system MINERVA 31 - 10 kVA nominal power 10kVA/10kW 19/43 min. (100/50% load), online continuous 3/1 phase, black UPS software LAN-Powershut for download consisting of: - 1x system cabinet MINERVA 31 - 10 kVA - 1x battery cabinet - 60x battery BT12-9.5 UPS system cabinet: Dimensions UPS: 868x250x900 (HxWxD in mm) Weight UPS without batteries: 60 kg Battery cabinet: Dimensions: 868x250x828 (HxWxD in mm) Weight including 60 batteries: 217 kg Autonomy time: 19/43 minutes (100/50% load), expandable Batteries: Maintenance-free Lead-fleece batteries with a service life of 5 years Battery type: EFFEKTA BT12-9.5 UPS classification: Online double converter (VFI-SS-111) according to IEC 62040-3 Rectifier: IGBT rectifier bridge Mains interference: < % THDi (current) Input voltage: 380/400/415 VAC (3Ph+N+PE) or 220/230/240V (L+N+PE) Input voltage range: 208 to 478 VAC or 120 to 276 VAC, Input frequency range: 40Hzû70Hz autom. Detection efficiency AC/AC up to 94.5% ECO mode max. 98% Output voltage: 220/230/240 VAC (L+N+PE) Output frequency: 50/60 Hz ± 1 Hz Output power factor 1.0 Overload capacity: in normal operation: < for 60 min, < for 10 min, < for 1 min. in battery operation: < for 10 min, < for 1 min, < for 1 sec. General: Working temperature: 0 - 40°C, battery max. 25° C Protection class: IP20 Color: black Radio interference suppression: according to DIN EN 62040-2, class C3 Features: Large 17,8 cm ( 7 inch ) multi-language touchscreen LCD panel Interfaces: RS232, RS485, switching contacts, parallel port, REPO 2x expansion slot for optional relay and SNMP card Electronic bypass, manual service bypass N+X parallel operation Battery charging parameters configurable via LCD panel Intelligent 3-stage battery charging Periodic, automatic battery test adjustable
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Effekta online UPS, 10000VA, 19min at cos phi 0.7, MINERVA 31, 3/1-phase,?
The article Effekta online UPS, 10000VA, 19min at cos phi 0.7, MINERVA 31, 3/1-phase, is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Effekta ACX31MVS10K00M19 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Effekta online UPS, 10000VA, 19min at cos phi 0.7, MINERVA 31, 3/1-phase, always at the best possible price. We can give you a discount of 2% on
Effekta online UPS, 10000VA, 19min at cos phi 0.7, MINERVA 31, 3/1-phase, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
