Eff Eff Fritz Fuss 509X102PZ-----1 EFF SI CASTLE MOTORAUSF 509X102PZ ----- 1 30/24/92 PZ 12-24V DIN LS / RS

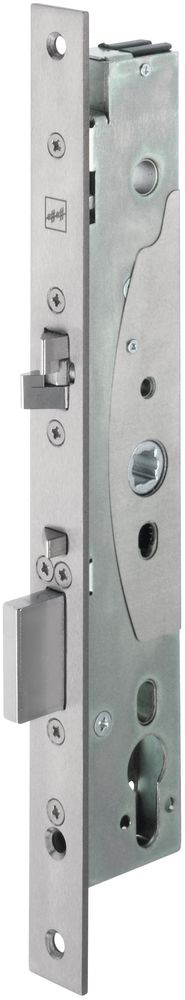

This image may differ from the desired article.

1.173,84 EUR

( 1.396,87 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

875716

Mfg Part No:

509X102PZ-----1

UPC/EAN:

4042203169456

Weight:

0 kg

Graduated prices net

From pieces	Price per pieces
3	1.138,62 EUR
6	1.103,41 EUR
9	1.068,19 EUR
12	1.032,98 EUR

Further Bell material from Eff Eff Fritz Fuss Further products in category Bell material All products of Eff Eff Fritz Fuss

Product information for Eff Eff Fritz Fuss 509X102PZ-----1:

Security lock motor version with external control 509X tubular frame version, The security lock motor version is used primarily where the advantage of a motorized unlocking must be combined with the mechanical security requirements of the lock models 309X and 409X. The integrated monitoring contacts can be used to query important lock states. The bolt is retracted by an electric motor and pre-tensioned by a spring mechanism. When the door is closed, the control latch causes the pre-tensioned bolt to be released and the cross latch to be blocked, which thus serves as an additional locking mechanism., The lock works according to the working current principle and remains locked in the event of a power failure and can only be opened using a key or by operating the inside handle., Mechanical self-locking, With cross latch, therefore can be switched over for doors DIN L / DIN R, Mechanical sequence control of the self-locking between cross latch and control latch, Burglary-resistant thanks to solid bolt with 20 mm throw, Burglary resistance up to class WK2 achievable in suitable door systems, Panic function ¿ approval according to EN 179 ¿ approval according to EN 1125, Suitable for fire doors, Motorised unlocking, therefore perfectly suited for combination with door automation, Use with interchangeable fitting, Changeover function for unlocking with a key from the outside, Monitoring functions, The locks in the 509X model series have a continuous handle follower and therefore require an interchangeable fitting (inside Handle or panic bar, outside button or handle bar). The lock is controlled by an impulse from a card reader, code lock, timer, button, etc.
