Eaton 289934 CI-PKZ01-X insulating housing for PKZ01

Your rating:
Average rating
product review for Eaton 289934 CI-PKZ01-X insulating housing for PKZ01
( 4.5 / 5 ) 13 ratings

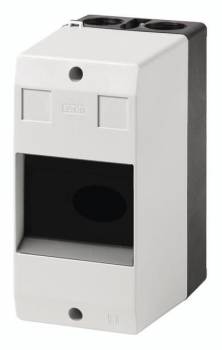

Eaton 289934
This image may differ from the desired article.
Eaton 289934Eaton 289934
18,23 EUR 19,00 EUR
( 21,69 EUR incl. VAT )
≈ £15.26  |  ≈ $20.03
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Eaton 289934 CI-PKZ01-X insulating housing for PKZ01
Lieske Part No.:389136
Mfg Part No: 289934
UPC/EAN: 4015082899349
Weight:0.38 kg
Type:CI-PKZ01-X
Graduated prices net
From piecesPrice per pieces
1517,68 EUR
3017,14 EUR
7016,59 EUR
10016,04 EUR

Product information for Eaton 289934:

The article CI-PKZ01-X from Eaton is an insulating material housing for motor protection switches, specifically designed for mounting on the machine. It serves as mechanical and electrical protection for the installed motor protection switch and enables safe and orderly integration into industrial systems. The housing is made of insulating material, ensuring high electrical insulation and resistance to mechanical stress. It is designed for use in industrial environments where robust and reliable mounting of control and protection devices is required.

Applications

The housing CI-PKZ01-X is used in industrial electrical engineering, particularly for installing motor protection switches on machines and systems. It is suitable for applications requiring a solid, impact-resistant, and insulating cover for the switch to protect against mechanical damage, dust, and moisture. Mounting is done directly on the machine, creating a compact and integrated solution that minimizes space requirements and ensures accessibility for maintenance and operation.

Functions and Equipment in Detail

The housing provides a closed protective space for the motor protection switch, with the front side left open to allow operation and monitoring of the switch. It is made of insulating material offering high electrical strength and mechanical stability. The housing dimensions are 158 mm (width) × 70 mm (height) × 80 mm (depth), with a cutout for mounting the switch. The exact shape of the cutout is adapted to the dimensions of the motor protection switch PKZ01 to ensure secure and precise installation.

Technology Explained Simply

The housing CI-PKZ01-X is not an active electrical component but a passive protective housing. It serves exclusively for mechanical and electrical shielding of the mounted motor protection switch. The insulating material construction prevents short circuits and provides protection against contact with conductive parts. The dimensions are chosen to allow the switch to be installed securely and without play. The housing is not designed for direct connection of cables; it serves only as a protective housing for the switch.

Compatibility and Accessories

The housing CI-PKZ01-X is specifically designed for use with the motor protection switch PKZ01. It is compatible with various accessories that extend functionality. These include, for example, signal lamps in different colors (red, green, white) with neon lamps, which can be attached to the housing to visually indicate the operating status. Other compatible components include membrane caps (e.g. KT-M25), cable glands (e.g. V-M25), operating membranes (e.g. CI/E-PKZ01-XG), and padlock locks (e.g. CI/E-PKZ01-XSVB), which improve switch operation and safety.

Mounting and Installation

The housing is mounted directly on the machine, using fastening options on the machine front or side. The housing is positioned so that the motor protection switch PKZ01 can be installed into the designated cutout. Mounting does not require special tools, but a clean and flat mounting surface is necessary to ensure a secure and tight connection. The exact mounting instructions are not part of the delivery, but the construction conforms to standard practices for mounting control devices on machines.

Advantages in Operation

The housing CI-PKZ01-X provides reliable protection for the motor protection switch, extending the switch’s service life and increasing operational safety. The robust insulating material construction protects against mechanical stress, dust, and moisture. Integrated mounting on the machine reduces space requirements and improves system clarity. Compatibility with various accessories allows flexible adaptation to specific requirements, such as visual status indication or additional safety functions.

General
Product typeInsulating material housing
ManufacturerEaton
MaterialInsulating material
InsertMotor protection switch housing for mounting on the machine
Compatibilityfor motor protection switch PKZ01
Accessory compatibilitylight indicator, membrane nozzle, cable gland, actuation membrane, padlock lockout


Questions & answers

What is the delivery time of Eaton 289934 CI-PKZ01-X insulating housing for PKZ01 ?

The article Eaton 289934 CI-PKZ01-X insulating housing for PKZ01 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 289934 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 289934 CI-PKZ01-X insulating housing for PKZ01 always at the best possible price. We can give you a discount of 2% on Eaton 289934 CI-PKZ01-X insulating housing for PKZ01 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 289934 CI-PKZ01-X insulating housing for PKZ01 we can offer you a price of 17,68 EUR per piece. The more you buy, the cheaper the article will be.
