Eaton 281636 E-PKZ01-PVT insulating material housing for mounting

Your rating:
Average rating
product review for Eaton 281636 E-PKZ01-PVT insulating material housing for mounting
( 4.6 / 5 ) 8 ratings

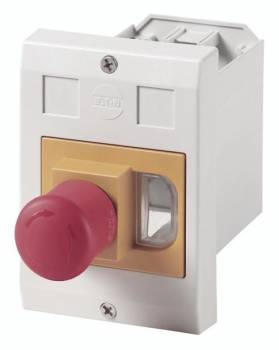

Eaton 281636
This image may differ from the desired article.
Eaton 281636Eaton 281636Eaton 281636
60,14 EUR 62,68 EUR
( 71,57 EUR incl. VAT )
≈ £50.34  |  ≈ $66.09
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 281636 E-PKZ01-PVT insulating material housing for mounting
Datasheet:file_download Download
Lieske Part No.:293790
Mfg Part No: 281636
UPC/EAN: 4015082816360
Weight:0.359 kg
Type:E-PKZ01-PVT
Graduated prices net
From piecesPrice per pieces
658,34 EUR
1256,53 EUR
2454,73 EUR
3652,92 EUR

Product information for Eaton 281636:

The Eaton E-PKZ01-PVT is a motor protection switch housing made of plastic, designed specifically for direct integration into machines. It serves as an insulating material housing and enables the installation of switching and protection components in industrial systems. The housing is available in the colours Red, White, and Yellow, and offers a robust, impact-resistant design for use in demanding environments. Dimensions are 129 mm height, 85 mm width, and 80 mm depth, making it suitable for standard mounting positions.

Applications
This housing is used in industrial electrical engineering, particularly in systems where a motor protection switch or similar components are to be directly integrated into machine construction. It is designed for use in environments with increased mechanical stress and humid atmospheres, with the protection rating IP65 ensuring high resistance against dust and water jets. The operating temperature range of -25 °C to +40 °C makes it suitable for outdoor use or in rooms with significant temperature fluctuations.

Functions and Equipment in Detail
The housing is made of plastic, providing high insulation performance and mechanical stability. The colour variants Red, White, and Yellow allow for visual identification in machine construction, with Red often used for emergency stop functions. The IP65 protection rating ensures the housing is dust-tight and protected against water jets from all directions, making it suitable for use in production facilities, factories, or outdoors. Dimensions of 129 mm height, 85 mm width, and 80 mm depth are standardized and fit common mounting plates and control panels.

Technology Explained Simply
The protection rating IP65 means the housing is fully protected against dust (IP6) and resistant to water jets from all directions (IP5). This is particularly important in environments with splashing water, humidity, or dusty air, as found in manufacturing industries or outdoor applications. The operating temperature range of -25 °C to +40 °C allows use in climatically diverse regions and under extreme conditions, without the material losing its strength or insulation properties. The plastic material provides high electrical insulation and is resistant to mechanical stress.

Compatibility and Accessories
The housing is designed for integration of motor protection switches and similar components. It can be combined with various indicator lights for visual signaling of operating states. Compatible accessories include, for example, green indicator lights (L-PKZ0-GN(400V) and L-PKZ0-GN(230V)), white indicator lights (L-PKZ0(400V)), and red indicator lights (L-PKZ0-RT(400V) and L-PKZ0-RT(230V)). Additionally, an N-terminal (N-PKZ0) is available to ensure secure connection of wires. These components can be mounted as required to extend the functionality of the switch.

Mounting and Installation
The housing is intended for direct installation into machines and can be fastened to suitable mounting surfaces. The dimensions are standardized to fit common mounting plates. Installation is typically carried out by qualified personnel in electrical installation or machine construction.

Advantages in Operation
The housing provides a compact and robust solution for integrating protection and control components into machines. The IP65 protection rating ensures high reliability in humid or dusty environments. The colour variants allow for clear visual identification, simplifying operation and maintenance. The temperature resistance from -25 °C to +40 °C makes it suitable for a wide range of operating conditions. The use of plastic ensures high electrical insulation and mechanical stability, increasing safety during operation.

Features
TypeDoor lock
Product colourRed, White, Yellow
Housing materialPlastic
International Protection (IP) codeIP65
Operating temperature (T-T)-25 - 40 °C
Packaging data
Quantity per pack1 pc(s)
Weight & dimensions
Width85 mm
Depth80 mm
Height129 mm


Product data sheet
Datasheet for Eaton 281636, EAN: 4015082816360

Questions & answers

What is the delivery time of Eaton 281636 E-PKZ01-PVT insulating material housing for mounting ?

The article Eaton 281636 E-PKZ01-PVT insulating material housing for mounting is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 281636 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 281636 E-PKZ01-PVT insulating material housing for mounting always at the best possible price. We can give you a discount of 2% on Eaton 281636 E-PKZ01-PVT insulating material housing for mounting if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 281636 E-PKZ01-PVT insulating material housing for mounting we can offer you a price of 58,34 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
