Eaton 278473 ZB32-XEZ single installation plinth

Your rating:
Average rating
product review for Eaton 278473 ZB32-XEZ single installation plinth
( 4.5 / 5 ) 10 ratings

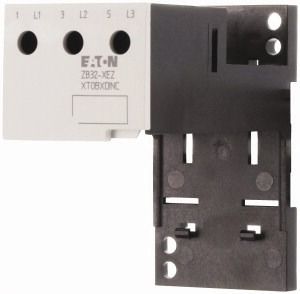

Eaton 278473
This image may differ from the desired article.
Eaton 278473Eaton 278473
13,77 EUR 14,36 EUR
( 16,39 EUR incl. VAT )
≈ £11.53  |  ≈ $15.13
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 4 pieces
1x Eaton 278473 ZB32-XEZ single installation plinth
Lieske Part No.:242219
Mfg Part No: 278473
UPC/EAN: 4015082784737
Weight:0.123 kg
Type:ZB32-XEZ
Graduated prices net
From piecesPrice per pieces
1513,25 EUR
3012,74 EUR
7012,22 EUR
10011,70 EUR

Product information for Eaton 278473:

The article ZB32-XEZ from Eaton is a plinth for individual mounting of motor protection relays of size ZB32. It serves as a mounting base for individual motor protection relays in industrial installations and enables orderly and secure fixation of the relays in enclosures or control systems. Individual mounting is particularly useful when multiple relays are not to be mounted in a row, but individual relays need to be positioned at various locations within the enclosure.

Applications

The plinth ZB32-XEZ is used in industrial electrical engineering where motor protection relays of size ZB32 are installed. This includes applications in manufacturing automation, machine building industry, and installations with electric drives, where the reliability and safety of motor control are important. Individual mounting allows flexible positioning of the relays, independent of modular rail mounting.

Functions and Equipment in Detail

The plinth is specifically designed for size ZB32 and ensures stable and secure mounting of the motor protection relay. It features the necessary connection points and fastening elements to securely fix the relay. The design allows the relay to be easily placed on and removed from the plinth, facilitating maintenance and replaceability.

Technology Explained Simply

The plinth ZB32-XEZ is a mechanical mounting component that does not perform any electrical function. It serves exclusively for the fixation and positioning of the motor protection relay. Size ZB32 is a standard format for motor protection relays, specifying defined dimensions and connection geometry. The plinth is designed to match this geometry, allowing the relay to be easily placed. Individual mounting differs from modular rail plinths, which mount multiple relays in a row, by accommodating only a single relay.

Compatibility and Accessories

The plinth ZB32-XEZ is compatible with all motor protection relays of size ZB32 offered by Eaton. These include, for example, models such as ZB32-0,16, ZB32-0,24, ZB32-0,4, ZB32-0,6, ZB32-1, ZB32-1,6, ZB32-2,4, ZB32-3,2, ZB32-4, ZB32-6, ZB32-10, ZB32-16, ZB32-24, ZB32-32, and ZB32-38. These relays cover a current range from 0.1 to 38 A and are designed for various motor powers and application scenarios. Combining the plinth with one of these relays enables individual and flexible installation in enclosures.

Mounting and Installation

The plinth is mounted in an enclosure or control unit. Installation is performed by placing the motor protection relay onto the plinth, connecting the relay's electrical terminals directly to the corresponding terminals or connection points. Individual mounting requires no additional mounting aids, as the relay is placed directly onto the plinth.

Advantages in Operation

Using the plinth ZB32-XEZ allows motor protection relays to be mounted flexibly and independently of modular rails. This is particularly advantageous when individual relays need to be placed at different locations within the enclosure or when modular mounting is not suitable. The simple mounting and dismounting facilitates maintenance and replacement of the relays. The mechanical stability of the plinth ensures reliable fixation, even under industrial operating conditions.

General
Product typeSocket for individual installation
Construction sizeZB32
Compatibilitymotor protection relay size ZB32


Questions & answers

What is the delivery time of Eaton 278473 ZB32-XEZ single installation plinth ?

The article Eaton 278473 ZB32-XEZ single installation plinth is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 278473 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 278473 ZB32-XEZ single installation plinth always at the best possible price. We can give you a discount of 2% on Eaton 278473 ZB32-XEZ single installation plinth if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 278473 ZB32-XEZ single installation plinth we can offer you a price of 13,25 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
