Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC

Your rating:
Average rating
product review for Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC
( 4.7 / 5 ) 12 ratings

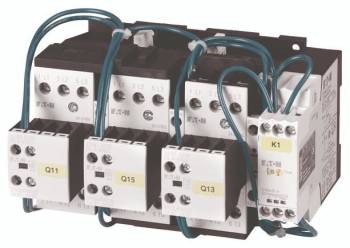

Eaton 278311
This image may differ from the desired article.
Eaton 278311Eaton 278311Eaton 278311
406,47 EUR
incl. 1,83 EUR copper surcharge
( 483,70 EUR incl. VAT )
≈ £340.22  |  ≈ $446.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC
Datasheet:file_download Download
Lieske Part No.:386827
Mfg Part No: 278311
UPC/EAN: 4015082783112
Weight:1.102 kg
Type:SDAINLM16(230V50HZ,240V60HZ)
Graduated prices net
From piecesPrice per pieces
4391,30 EUR
8376,12 EUR
12360,95 EUR
16345,77 EUR

Product information for Eaton 278311:

The Eaton SDAINLM16(230V50HZ,240V60HZ) is a star-delta contactor combination for use in industrial drive systems. The contactor is used to control three-phase motors via star-delta starting, whereby the starting voltage is initially reduced to limit the inrush current. The combination is designed for an operating voltage of 230 V at 50 Hz and 240 V at 60 Hz, operating in AC mode. The maximum rated operational power is 7.5 kW at 400 V and 50–60 Hz, with power limited to 4 kW at 220 V/230 V. Rating is according to usage category AC-3, intended for squirrel-cage motors, including starting and switching off during operation. The maximum switching time is 20 seconds, and the operating frequency is limited to a maximum of 10 starts per hour.

Applications
This contactor combination is designed for use in industrial drive systems, particularly in installations where a gentle motor start is required to minimize network and mechanical stress. Typical applications include pumps, fans, compressors, and other drives associated with high inrush currents. The combination is suitable for operation in environments with an operating temperature range of -25 °C to 60 °C, enabling use in both indoor and outdoor settings, provided ambient conditions remain within these limits.

Features and Equipment in Detail
The combination consists of several individual components that work together to achieve star-delta starting. These include the main contactor Q11 (type DILM9-10), the delta contactor Q15 (type DILM9-01), and the star contactor Q13 (type DILM7-01), each with DILA-XHI20-type control. A time relay of type ETR4-51 ensures timed switching from star to delta configuration. The maximum rated current is 16 A, enabling use with motors up to 7.5 kW at 400 V. The contactor combination is designed for an operating voltage of 230–240 V AC, with frequency ranging between 50 and 60 Hz.

Technology Explained Simply
In star-delta starting, the motor is initially connected in star configuration, reducing the voltage per phase to approximately 58% of the nominal voltage. This reduces the inrush current and protects the network and machine components. After a preset time controlled by the time relay, the motor is switched to delta configuration to achieve full rated power. The switching time is up to 20 seconds, sufficient to safely bring the motor into operation. The contactor combination is designed for a maximum operating frequency of 10 starts per hour, which is sufficient for many industrial applications.

Compatibility and Accessories
The contactor combination is compatible with various accessories that extend functionality. These include electronic overload relays such as the ZEB12-20-GF (4–20 A) or ZEB12-5 (1–5 A), which can be used for motor protection. RC protection circuits such as DILM12-XSPR500 or varistor circuits such as DILM12-XSPV48 are also available to protect the switching system from overvoltages. The combination is part of the SDAINL product family and can be combined with other components from this series.

Mounting and Installation
Mounting is done in standard control panels or enclosures. Dimensions are 158 mm (width) × 117 mm (depth) × 68 mm (height), allowing placement in standard control installations. Installation requires connecting individual contacts and wiring according to the circuit diagram specifications. The operating voltage is supplied via network cable or a separate power supply. The contactor combination is designed for industrial environments and requires no special mounting tools.

Operational Advantages
Using the star-delta contactor combination enables a gentle motor start, reducing stress on the power network and machine components. The combination is designed for high reliability and is suitable for continuous operation in industrial plants. The integrated time control ensures automated switching, eliminating manual intervention. Compatibility with various motor protection relays and protection circuits extends functionality and allows application-specific adaptation. The contactor combination is also suitable for motors of efficiency class IE3, increasing the energy efficiency of the system.

Product Colour
The device is grey, a standard colour for industrial switching devices, contributing to better visibility in enclosures.

Operating Temperature
The contactor combination can be operated at temperatures from -25 °C to 60 °C, enabling use in various industrial environments.

Dimensions
Dimensions are 158 mm (width) × 117 mm (depth) × 68 mm (height), allowing placement in standard control panels.

Current Rating
The maximum current rating is 16 A, enabling use with motors up to 7.5 kW at 400 V.

AC Input Voltage
The operating voltage is 230–240 V AC, with frequency ranging between 50 and 60 Hz.

AC Input Frequency
The frequency is 50–60 Hz, enabling use in various power networks.

Usage Category
The combination is designed for usage category AC-3, intended for squirrel-cage motors, including starting and switching off during operation.

Max. Rated Operational Power
The maximum rated operational power is 7.5 kW at 400 V and 50–60 Hz, with power limited to 4 kW at 220 V/230 V.

Max. Switching Time
The maximum switching time is 20 seconds, sufficient to safely bring the motor into operation.

Operating Frequency
The operating frequency is limited to a maximum of 10 starts per hour, which is sufficient for many industrial applications.

Accessories
The contactor combination is compatible with various accessories, including electronic overload relays, RC protection circuits, and varistor circuits, which extend functionality.

Compatibility
The combination is part of the SDAINL product family and can be combined with other components from this series.

Application
The contactor combination is designed for use in industrial drive systems, particularly in installations where a gentle motor start is required to minimize network and mechanical stress.

Manufacturer
The manufacturer is Eaton, a well-known provider of electrical components and switching devices for industrial applications.

Manufacturer's Number
The manufacturer's number is 278311.

Type
The type is SDAINLM16(230V50HZ,240V60HZ).

Features
Product colourGrey
Operational conditions
Operating temperature (T-T)-25 - 60 °C
Power
AC input voltage230 - 240 V
AC input frequency50 - 60 Hz
Current16 A
Weight & dimensions
Dimensions (WxDxH)158 x 117 x 68 mm


Please note...
This article contains a copper surcharge of 1,83 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Eaton 278311, EAN: 4015082783112

Questions & answers

What is the delivery time of Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC ?

The article Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 278311 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC always at the best possible price. We can give you a discount of 2% on Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Eaton 278311 SDAINLM16(230V50Hz,240V60Hz) SD contactor 7.5 kW/400 V AC we can offer you a price of 391,30 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
