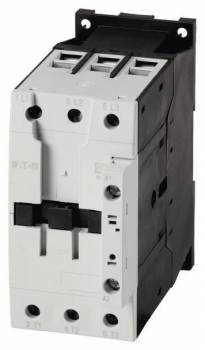

Eaton 277818 DILM50(48V50Hz) power contactor 22 kW/400 VAC
|
269,60 EUR 280,82 EUR |
|||||||||||
|
incl. 1,91 EUR copper surcharge ( 320,82 EUR incl. VAT ) ≈ £227.81 | ≈ $301.41 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 425416 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 277818 | ||||||||||
| UPC/EAN: | 4015082778187 | ||||||||||
| Weight: | 0.923 kg | ||||||||||
| Type: | DILM50(48V50HZ) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 277818:
Power contactor, Application: Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, inching, Connection technology: Screw terminals, Note: Also suitable for motors of efficiency class IE3, Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 50 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 80 A, encapsulated: Ith= 58 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 162 A, encapsulated: Ith= 145 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 6 kW, 380 V 400 V: P= 10 kW, 660 V 690 V: P= 14 kW, can be combined with auxiliary switch: DILM150-XHI(V).., DILM1000-XHI(V).., Notes: Switching elements according to EN 50012., Current type AC/DC: AC operation
Please note...
This article contains a copper surcharge of 1,91 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Eaton 277818 DILM50(48V50Hz) power contactor 22 kW/400 VAC ?
The article Eaton 277818 DILM50(48V50Hz) power contactor 22 kW/400 VAC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 277818 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 277818 DILM50(48V50Hz) power contactor 22 kW/400 VAC always at the best possible price. We can give you a discount of 2% on Eaton 277818 DILM50(48V50Hz) power contactor 22 kW/400 VAC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Eaton 277818 DILM50(48V50Hz) power contactor 22 kW/400 VAC we can offer you a price of 259,56 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
