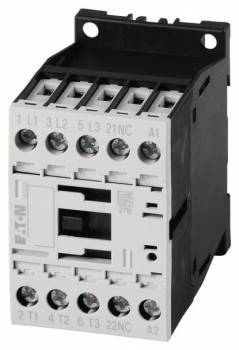

Eaton 276880 DILM12-01(24VDC) power contactor 5.5 kW/400 VDC
|
76,17 EUR |
|||||||||||
|
incl. 1,18 EUR copper surcharge ( 90,64 EUR incl. VAT ) ≈ £63.75 | ≈ $83.71 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 173484 | ||||||||||
| Mfg Part No: | 276880 | ||||||||||
| UPC/EAN: | 4015082768805 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
| Type: | DILM12-01(24VDC) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 276880:
Applications
This contactor is designed for use in industrial control systems, particularly for driving electric motors in installations with power up to 5.5 kW at 400 V. It is suitable for applications where motors are switched on and off, changed over, or subjected to short-term loads, such as in conveyor systems, pumps, or fans. The AC-4 category also includes operating modes such as reversing and jogging, highlighting the versatility of the device. The designation “IE3-capable” indicates that the device is compatible with motors of efficiency class IE3, which require higher energy efficiency.
Functions and Features in Detail
The contactor features a 3-pole main contact arrangement intended for main current conduction between the supply and load. The rated operational current of 12 A under AC-3 operation (380 V/400 V) enables use in medium-power applications. The thermal load capacity under AC-1 operation is also specified, ensuring safe operation with resistive loads.
Technology Explained Simply
The device operates using a coil that generates a magnetic field when the operating voltage (24 V DC) is applied, which closes the contacts. The contacts are designed to safely and reliably carry the current. Protection class IP20 protects against direct contact with fingers and larger foreign objects, but is not waterproof or dust-tight. Therefore, the device is intended for use in enclosed enclosures, not in open or humid environments.
Compatibility and Accessories
Various accessories are available for this contactor to extend its functionality. These include time delay modules such as the DILM32-XTED11-10(RAC240) for delayed release switching, motor protection relays such as the ZB12-2,4 for motor protection in the current range of 1.6–2.4 A, and auxiliary switches such as the DILA-XHI10-S for additional switching functions. Other options include varistors (e.g. DILM12-XSPV240) for overvoltage protection, RC protection circuits (e.g. DILM12-XSPR500), and interlock kits (e.g. DILM12-XMV) for mechanical interlocking. These components can be mounted additionally depending on the application requirements.
Mounting and Installation
Mounting is carried out in standard enclosures, taking into account dimensions of 45 mm (width) and 68 mm (height). The screw terminals allow for secure connections to the wiring. Installation is typically performed by qualified personnel in accordance with applicable standards and regulations.
Operational Advantages
The contactor provides reliable and safe switching performance for industrial applications. Compatibility with IE3 motors and support for various operating modes (AC-1, NAC-3, AC-4) increases operational flexibility. The use of screw terminals ensures a stable electrical connection. Protection class IP20 is sufficient for use in enclosed enclosures, provided environmental conditions comply with the specified requirements. The combinability with various accessories allows adaptation to specific requirements of individual installations.
| Features | |
| Product type | Contactor |
| Product colour | Black, White |
| Number of poles | 3 |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Width | 45 mm |
| Height | 68 mm |
Questions & answers
What is the delivery time of Eaton 276880 DILM12-01(24VDC) power contactor 5.5 kW/400 VDC ?
The article Eaton 276880 DILM12-01(24VDC) power contactor 5.5 kW/400 VDC is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 276880 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 276880 DILM12-01(24VDC) power contactor 5.5 kW/400 VDC always at the best possible price. We can give you a discount of 2% on Eaton 276880 DILM12-01(24VDC) power contactor 5.5 kW/400 VDC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 276880 DILM12-01(24VDC) power contactor 5.5 kW/400 VDC we can offer you a price of 73,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
