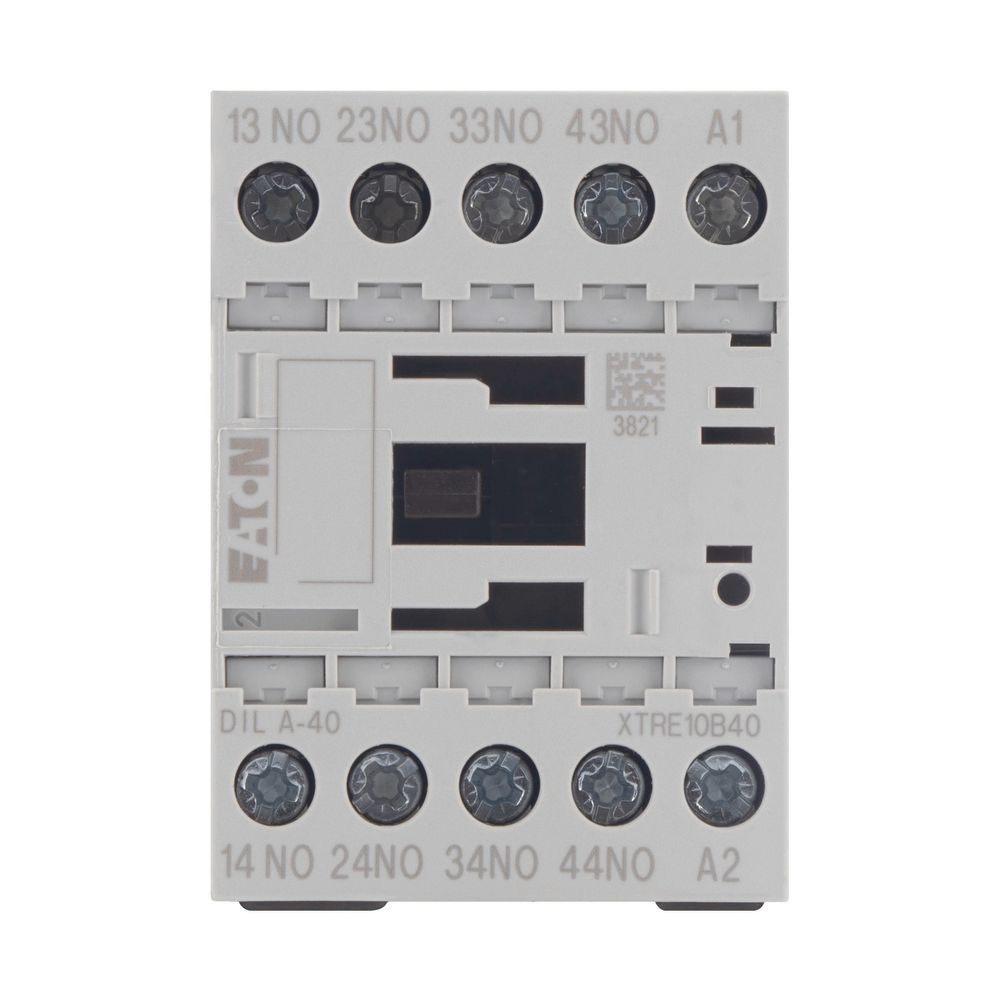

Eaton 276326 DILA-40(110V50Hz 120V60Hz) auxiliary contactor 4S/0Ö AC
|
53,14 EUR |
|||||||||||
|
incl. 0,54 EUR copper surcharge ( 63,24 EUR incl. VAT ) ≈ £44.48 | ≈ $58.40 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 121434 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 276326 | ||||||||||
| UPC/EAN: | 4015082763268 | ||||||||||
| Weight: | 0.25 kg | ||||||||||
| Type: | DILA-40(110V50HZ,120V60HZ) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 276326:
Applications
This auxiliary contactor is used in industrial automation, for example for signal transmission, controlling auxiliary functions in drive systems, or logic interconnection in control systems. It is designed for use in enclosures and control systems where reliable and maintenance-friendly switching functions are required. The rated operational currents are 4 A for voltage ranges of 220 V to 240 V and 380 V to 415 V, enabling use in medium to high load applications.
Functions and Equipment in Detail
The device has four closing contacts (4S), which close when the coil is energised. The contact numbering conforms to EN 50011, enabling uniform identification and easy integration into existing circuit diagrams. Connections are made via screw terminals, ensuring a secure and mechanically stable connection. Operation is via an AC coil rated for nominal voltages of 110 V/50 Hz and 120 V/60 Hz. The combination code is 40D, facilitating identification and spare part procurement.
Technology Explained Simply
The coil of the auxiliary contactor is powered by an external voltage source at 110 V/50 Hz or 120 V/60 Hz. When voltage is applied, a magnetic flux is generated, attracting the armature plate and closing the contacts. The contacts are configured as closing contacts, meaning they close the circuit when energised. The protection rating IP20 means the device is protected against finger contact, but not against dust or water, requiring use exclusively in enclosed enclosures. The coil terminal markings conform to EN 50005, ensuring uniform and safe wiring.
Compatibility and Accessories
The auxiliary contactor is compatible with various accessories from the DILA series, particularly auxiliary switch modules of types DILA-XHI(V). Examples include the DILA-XHI20 module (2 closing contacts, top mounting) or DILA-XHI10-S (1 closing contact, side mounting). Additionally, time-delay modules such as DILM32-XTED11-10(RAC240) or DILM32-XTED11-1(RA24) can be used to extend functionality for time-delayed switching operations. Protective circuits such as varistors (e.g. DILM12-XSPV240) or RC circuits (e.g. DILM12-XSPR240) are also available for integration into existing circuits.
Mounting and Installation
Mounting is performed in standard control panels or enclosures. The screw terminals allow for easy and secure connection of cables. The installation orientation is unrestricted, but the IP20 protection rating must be considered, requiring installation exclusively in enclosed, dust-free, and dry environments. Wiring is done according to the coil terminal markings, which conform to EN 50005. Integration into existing circuit diagrams is facilitated by the uniform contact numbering according to EN 50011.
Advantages in Operation
The auxiliary contactor offers high operational reliability through robust screw terminals and a dependable switching function. Compatibility with a wide range of accessory modules enables flexible expansion of functionality. Compliance with standards IEC/EN 60947 and EN 60947-5-1 ensures conformity with international standards for electrical switching devices. Clear marking of contacts and coil terminals facilitates maintenance and fault diagnosis during operation.
Standards and Regulations
The device complies with standards IEC/EN 60947 and EN 60947-5-1, which apply to electrical switching devices and switches. Contact numbering is marked according to EN 50011, and coil terminal markings conform to EN 50005. These standards ensure uniform and safe use in industrial installations.
Protection Rating and Operating Conditions
The IP20 protection rating means the device is protected against finger contact, but not against dust or water. It is therefore suitable exclusively for use in enclosed enclosures protected from external influences.
Accessories and Extensions
To extend functionality, various modules can be used, including auxiliary switch modules such as DILA-XHI20 or DILA-XHI10-S, time-delay modules such as DILM32-XTED11-10(RAC240) for delayed release switching, and protective circuits such as varistors (DILM12-XSPV240) or RC circuits (DILM12-XSPR240). These modules are specifically designed for use with DILA relays and enable flexible adaptation to specific requirements.
Compatibility with Accessories
The device is compatible with a range of accessory modules, including auxiliary switch modules from the DILA-XHI(V) series, time-delay modules such as DILM32-XTED11-10(RAC240) or DILM32-XTED11-1(RA24), and protective circuits such as varistors (DILM12-XSPV240) or RC circuits (DILM12-XSPR240). These modules extend the functionality of the base unit and enable flexible adaptation to specific requirements in industrial automation.
Practical Use
The auxiliary contactor is used in industrial control systems to implement auxiliary functions such as signal transmission, logic interconnection, or drive control. Its robust construction and compliance with international standards ensure reliable and maintenance-friendly operation. The combinability with various accessory modules enables flexible adaptation to different requirements in automation technology.
| General | |
| Actuation voltage | 110 V 50 Hz |
| Type of current | AC operation |
| Contacts | 4 S |
| Rated operational current AC-15 | 4 A |
| Voltage range for rated operational current | 220-240 V, 380-415 V |
| Degree of protection | IP20 |
| Connection system | Screw terminals |
| Combinable with | DILA-XHI(V) |
| Code number | 40D |
| Standards | IEC/EN 60947, EN 60947-5-1 |
| Contact numbers | according to EN 50011 |
| Coil terminal markings | in accordance with EN 50005 |
Questions & answers
What is the delivery time of Eaton 276326 DILA-40(110V50Hz 120V60Hz) auxiliary contactor 4S/0Ö AC ?
The article Eaton 276326 DILA-40(110V50Hz 120V60Hz) auxiliary contactor 4S/0Ö AC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 276326 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 276326 DILA-40(110V50Hz 120V60Hz) auxiliary contactor 4S/0Ö AC always at the best possible price. We can give you a discount of 2% on Eaton 276326 DILA-40(110V50Hz 120V60Hz) auxiliary contactor 4S/0Ö AC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 276326 DILA-40(110V50Hz 120V60Hz) auxiliary contactor 4S/0Ö AC we can offer you a price of 51,17 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
