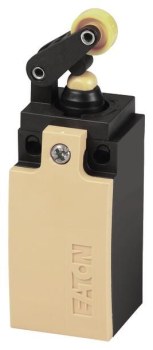

Eaton 266151 LSM-11S/L position switch roller lever

Your rating:
Average rating
product review for Eaton 266151 LSM-11S/L position switch roller lever
( 4.4 / 5 ) 11 ratings
Eaton 266151
This image may differ from the desired article.
Eaton 266151Eaton 266151
52,49 EUR 52,51 EUR
( 62,46 EUR incl. VAT )
≈ £43.93  |  ≈ $57.69
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Eaton 266151 LSM-11S/L position switch roller lever
Lieske Part No.:497655
Mfg Part No: 266151
UPC/EAN: 4015082661519
Weight:0.123 kg
Type:LSM-11S/L
Graduated prices net
From piecesPrice per pieces
650,92 EUR
1249,34 EUR
2447,77 EUR
3646,19 EUR

Product information for Eaton 266151:

The Eaton LSM-11S/L is a safety position switch from the LS(M)-. product series, specifically designed for use in industrial applications where reliable and safe position detection is required. The device features a roller lever and is supplied as a complete unit, allowing it to be directly integrated into existing control systems. The housing design corresponds to EN form E, enabling standardized mounting and placement in enclosures. The switch is designed for use in environments where temperatures range from -25 °C to +70 °C, making it suitable for a wide range of industrial and outdoor operating conditions.

Applications

The LSM-11S/L is typically used in machine and plant engineering, where the safe detection of end or intermediate positions of moving parts is required. This includes, for example, presses, conveyor systems, machine tools, or automated production lines. The integrated safety function through forced opening in accordance with IEC/EN 5-1 ensures that the switch will safely open in the event of mechanical failure or contact damage, preventing hazardous conditions. This makes it particularly suitable for applications that must comply with the Machinery Directive.

Functions and Equipment in Detail

The switch features a snap-action mechanism, enabling clear and precise switching performance. The contact configuration includes one normally closed contact (1 S) and one normally open contact (1 Ö), allowing it to be used for both signal transmission and safety functions. Forced opening (ZW) is activated, meaning the contacts are mechanically designed to open automatically in the event of any fault or damage – a key requirement for compliance with industrial safety standards. The housing cover is yellow, providing a visual indication of its safety function.

Technology Explained Simply

The housing is made of metal, offering high mechanical stability and resistance to external influences. The protection rating IP66 and IP66 ensures the device is dust-tight and protected against water jets and temporary immersion, making it suitable for outdoor use or in damp environments. The connection technology uses Cage Clamp, a proven clamping technique that enables a secure and reliable electrical connection without additional tools. Cage Clamp is a registered trademark of Wago Kontakttechnik, known for high quality and reliability in industrial applications.

Compatibility and Accessories

The LSM-11S/L can be combined with various accessories to extend functionality or mounting options. These include, for example, the LS-XAP adapter plate for LS-Titan, the M12A5 connector socket 5p M12 A-coded, or the M12B mounting plug M12 B-coded, suitable for passages with M20 bore. Other compatible components include the M12A M12 plug M20 IP66 24 V/4 A, the EMS20 membrane screw M20, the LS-XTW twin opener for LS-Titan, the FS-AT guide disc for AT..., and the LS-X20 screw closure transparent M20 IP66. These accessories allow flexible adaptation to different mounting and connection scenarios.

Mounting and Installation

Mounting is typically performed in enclosures or on machine panels, with EN form E enabling standardized fastening. The Cage Clamp connection allows for quick and tool-free wiring. During installation, it is important to ensure that the mechanical movement of the roller lever is correctly aligned with the movement to be monitored, to guarantee reliable switching performance. The IP66 IP66 protection rating requires no additional protective measures during mounting, provided the specified mounting conditions are met.

Advantages in Operation

The use of the LSM-11S/L provides high operational safety due to the integrated forced opening, supporting compliance with safety standards. The robust metal construction and high protection rating ensure long service life even under harsh operating conditions. The Cage Clamp technology reduces installation time and minimizes wiring errors. The clear identification via the yellow housing cover facilitates recognition as a safety device during operation.

General
Degree of protectionIP66, IP67
Ambient temperature-25 - +70 °C
Construction typeEN Form E
Contacts Normally open (NO)1
Contacts Normally closed (NC)1
Colour of housing coverYellow
HousingMetal
Connection typeCage Clamp
Jump switchJa
Forced openingYes


Questions & answers

What is the delivery time of Eaton 266151 LSM-11S/L position switch roller lever ?

The article Eaton 266151 LSM-11S/L position switch roller lever is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 266151 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 266151 LSM-11S/L position switch roller lever always at the best possible price. We can give you a discount of 2% on Eaton 266151 LSM-11S/L position switch roller lever if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 266151 LSM-11S/L position switch roller lever we can offer you a price of 50,92 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
