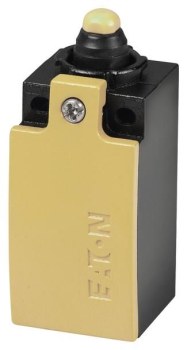

Eaton 266144 LSM-11 position switch 1NO1NC plunger

Your rating:
Average rating
product review for Eaton 266144 LSM-11 position switch 1NO1NC plunger
( 4.1 / 5 ) 11 ratings
Eaton 266144
This image may differ from the desired article.
Eaton 266144Eaton 266144
84,36 EUR 84,40 EUR
( 100,39 EUR incl. VAT )
≈ £70.61  |  ≈ $92.71
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 2 pieces
1x Eaton 266144 LSM-11 position switch 1NO1NC plunger
Lieske Part No.:751836
Mfg Part No: 266144
UPC/EAN: 4015082661441
Weight:0.123 kg
Type:LSM-11
Graduated prices net
From piecesPrice per pieces
681,83 EUR
1279,30 EUR
2476,77 EUR
3674,24 EUR

Product information for Eaton 266144:

The Eaton LSM-11 is a safety position switch from the LS(M)- series, designed for use in industrial applications where reliable and secure position detection is required. As a base unit with an expandable design, it enables integration into existing control systems and offers the possibility to mount additional functions such as various actuating levers or connection components. The switch is specifically designed for use in environments with high mechanical and environmental influences, where the protection rating IP66 and IP66 ensures high resistance against dust and water, including short-term submersion. This makes it suitable for outdoor use as well as in moist or dusty production environments.

Applications

The LSM-11 is used in automation technology, particularly in machine and plant engineering, where precise position detection of moving components is necessary. Typical application scenarios include monitoring sliding doors, swing arms, tool changes, or other moving components in production facilities. The safety function through forced opening in accordance with IEC/EN 60947-5-1 ensures that the switch safely opens even in the event of mechanical failure of the actuation mechanism, thereby increasing the safety of the system.

Functions and Equipment in Detail

The switch features a contact configuration of 1 normally closed (Oe) and 1 normally open (S) contact, making it suitable for simple switching operations in control circuits. The forced opening function is an integral part of the device and ensures that the contacts safely open even in the event of mechanical damage or deformation of the actuation mechanism. The housing is made of metal, providing high mechanical stability and resistance to vibrations and mechanical stress. The housing cover is yellow, enabling visual identification of safety functions.

Technology Explained Simply

The design corresponds to EN 50047 Form B, which represents a standardized mounting geometry for end switches in industry. The connection technology uses Cage Clamp, a clamping technique that enables secure and quick connection of wires without requiring additional tools. The ambient temperature range in which the switch can be operated is between -25 °C and +70 °C, making it suitable for a wide range of operating conditions, from cold warehouses to warm production rooms.

Compatibility and Accessories

The LSM-11 is designed as a base unit and can be extended with various accessories. These include actuating levers such as the LSM-XLA angled roller lever, the LSM-XL roller lever, or the LSM-XRL swing lever, which adapt the actuation according to the application. Additional components such as the M22-LS mounting adapter RMQ-Titan 266137 or the LS-X20 screw-type closure transparent M20 IP66 266134 enable flexible mounting and screwing. Connection components such as the M12B insert connector M12 B-coded or the M12A5 connector socket 5p M12 A-coded can also be combined to secure the electrical connection.

Mounting and Installation

Mounting is carried out in accordance with EN 50047 Form B, with exact positioning and fastening varying depending on the application and accessories used. The Cage Clamp connection allows for quick and secure wire connection, with the clamps operable without tools. The protection rating IP66 IP66 requires no additional protective measures during installation, as the device is already designed for the intended environmental conditions.

Advantages in Operation

The use of the LSM-11 provides high reliability through the integrated forced opening function, which increases the safety of the system. The metallic construction and protection rating IP66 IP66 ensure a long service life even under harsh operating conditions. The expandability through various accessories allows flexible adaptation to different requirements without having to replace the base unit. The Cage Clamp technology reduces installation time and increases the reliability of the electrical connection.

The item price shown refers to 2 pieces Eaton 266144
General
Degree of protectionIP66, IP67
Ambient temperature-25 - +70 °C
Construction typeEN 50047 Type B
Contacts Normally open (NO)1
Contacts Normally closed (NC)1
HousingMetal
Colour of housing coverYellow
Connection typeCage Clamp
AssortmentPlunger
Type identifierLS(M)-.
Basic functionPosition switch, safety position switch
Forced openingYes


Questions & answers

What is the delivery time of Eaton 266144 LSM-11 position switch 1NO1NC plunger ?

The article Eaton 266144 LSM-11 position switch 1NO1NC plunger is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 266144 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 266144 LSM-11 position switch 1NO1NC plunger always at the best possible price. We can give you a discount of 2% on Eaton 266144 LSM-11 position switch 1NO1NC plunger if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 266144 LSM-11 position switch 1NO1NC plunger we can offer you a price of 81,83 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 266144 LSM-11 position switch 1NO1NC plunger is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
