Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever

Your rating:
Average rating
product review for Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever
( 4.8 / 5 ) 6 ratings

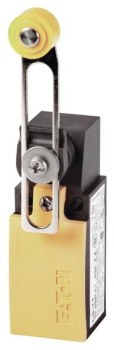

Eaton 266119
This image may differ from the desired article.
Eaton 266119Eaton 266119Eaton 266119
101,00 EUR 101,04 EUR
( 120,19 EUR incl. VAT )
≈ £84.54  |  ≈ $111.00
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 2 pieces
In Stock: 1 pieces
1x Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever
Datasheet:file_download Download
Lieske Part No.:515610
Mfg Part No: 266119
UPC/EAN: 4015082661199
Weight:0.241 kg
Type:LS-11S/RLA
Graduated prices net
From piecesPrice per pieces
597,97 EUR
1094,94 EUR
1591,91 EUR
2088,88 EUR

Product information for Eaton 266119:

The Eaton LS-11S/RLA is a position switch with an adjustable roller lever, designed for use in industrial applications. It is used for mechanical position detection and monitoring in machines and systems, with the basic function defined as a position switch and safety position switch. The device features a forced opening function in accordance with IEC/EN 60947-5-1, meaning that the contacts will safely open even in the event of mechanical failure, ensuring safe disconnection. The switch construction is designed as a complete unit, so no additional components are required for functionality.

Position switch with an adjustable roller lever allows for flexible adaptation to different actuation angles and positions. The lever can be mounted on the shaft and fixed in the desired position to adapt the switching function to the specific requirements of the machine. The switching function includes one normally closed contact (1 S) and one normally open contact (1 Ö), enabling monitoring of both the presence and absence of a state. The contacts are designed as snap-action switches, ensuring clear and reliable switching performance.

Safety function through forced opening is a central feature of the LS-11S/RLA. This function ensures that the contacts will safely open even in the event of mechanical failure or damage to the switching mechanism, thereby guaranteeing the safety of the system and operators. The construction complies with IEC/EN 60947-5-1 standards applicable to safety position switches. The switching function is therefore intended for applications where safe disconnection is required in the event of a fault.

Technology explained clearly is evident in the use of a plastic housing, which is robust and resistant to mechanical stress. The connection technology uses Cage Clamp, a proven clamping technique that enables a secure and reliable electrical connection without additional tools. Cage Clamp is a registered trademark of Wago Kontakttechnik, Minden, Germany, and is used here as the connection type.

Compatibility and accessories include various compatible components that can be used for integration into existing systems or to extend functionality. These include guide discs such as FS-AT for AT series, adapter plates such as LS-XAP for LS-Titan, and twin switches such as LS-XTW. For electrical connections, M12 connectors and plugs are available, for example M12A5 (5-pole, A-coded) or M12B (B-coded, M20 passage, IP66, 250 V, 4 A). Additionally, screw closures such as LS-X20 (transparent, M20, IP66) and membrane screws such as EMS20 (M20) are available to secure the mechanical and electrical connections.

Mounting and installation is carried out via the shaft, which is installed into the machine structure. The shaft has a width of 31 mm and a height of 61 mm, allowing placement in standard mounting openings. Mounting is typically done using screw or clamp connections, with the exact method depending on the specific machine construction. The protection rating IP66 and IP66 ensures high resistance to dust and water, including temporary submersion, enabling use in outdoor or damp environments.

Operational advantages include high reliability and safety due to the forced opening function, as well as easy mounting and maintenance thanks to the Cage Clamp connection. The operating temperature range of -25 °C to +70 °C allows use in a wide range of environments, from cold production halls to hot industrial facilities. The yellow color of the housing cover enhances visual recognition during operation, facilitating maintenance and inspection.

The item price shown refers to 2 pieces Eaton 266119
Features
Product typeShaft
Product colourBlack, Yellow
International Protection (IP) codeIP66, IP67
Operational conditions
Operating temperature (T-T)-25 - 70 °C
Weight & dimensions
Width31 mm
Height61 mm


Product data sheet
Datasheet for Eaton 266119, EAN: 4015082661199

Questions & answers

What is the delivery time of Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever ?

The article Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 266119 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever always at the best possible price. We can give you a discount of 2% on Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever we can offer you a price of 97,97 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 266119 LS-11S/RLA position switch 1NO1NC adjustable roller lever is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
