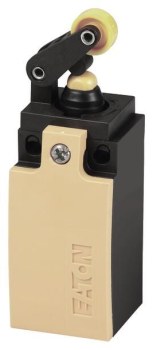

Eaton 266110 LS-11/L position switch 1NO1NC roller lever

Your rating:
Average rating
product review for Eaton 266110 LS-11/L position switch 1NO1NC roller lever
( 4.6 / 5 ) 12 ratings
Eaton 266110
This image may differ from the desired article.
Eaton 266110Eaton 266110
43,01 EUR 43,08 EUR
( 51,18 EUR incl. VAT )
≈ £36.00  |  ≈ $47.27
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Eaton 266110 LS-11/L position switch 1NO1NC roller lever
Lieske Part No.:472824
Mfg Part No: 266110
UPC/EAN: 4015082661106
Weight:0.123 kg
Type:LS-11/L
Graduated prices net
From piecesPrice per pieces
1041,40 EUR
2539,78 EUR
5038,17 EUR
7536,56 EUR

Product information for Eaton 266110:

The Eaton position switch type LS-11/L is a mechanical limit switch for industrial applications, designed as a safety position switch with forced opening function. It is used for detecting mechanical positions in machines and plants, particularly in environments with increased requirements for protection rating and operational safety. The device is supplied as a complete unit and features a roller lever as the actuation mechanism, ensuring precise and reliable switching performance. The design conforms to standard EN 50047 Form E, enabling standardized mounting and integration into existing systems.

Applications

The LS-11/L is suitable for use in industrial automation, particularly in machine building, material handling technology, and plant engineering. It is employed wherever secure position detection is required, for example, for monitoring the closed and open positions of doors, covers, or moving components. The protection ratings IP66 and IP66 make it suitable for outdoor use as well as in damp or dusty environments. The ambient temperature range of -25 °C to +70 °C allows use in a wide range of climatic conditions, from cold production halls to warm industrial facilities.

Functions and Equipment in Detail

The switch features one normally closed contact (1 S) and one normally open contact (1 Ö), enabling it to be used both for signaling a position and for providing feedback on movement. The safety function is achieved through forced opening in accordance with IEC/EN 60947-5-1, meaning that the contacts will safely open even in the event of mechanical failure or damage to the switch. This is crucial for complying with safety standards in critical applications. The housing cover is yellow, providing visual identification and improving visibility in complex installations.

Technology Explained Simply

The housing is made of plastic, offering high mechanical stability with low weight. The connection technology uses Cage Clamp, a proven clamping technique that enables secure and reliable electrical connections without additional tools. Cage Clamp is a registered trademark of Wago Kontakttechnik. The protection ratings IP66 and IP66 protect the device against dust and water jets, as well as against temporary immersion. The design according to EN 50047 Form E ensures standardized mounting and compatibility with common fastening systems.

Compatibility and Accessories

Various accessories are available for this switch, facilitating integration and adaptation to specific requirements. These include, for example, the LS-X20 screw cap transparent M20 IP66, the M12A M12 connector M20 IP66 24 V/4 A, and the M12B built-in connector Mron B-coded with M20 passage, IP66, 250 V, 4 A. Additional components such as the guide disc FS-AT, the Twin opener LS-XTW, the membrane screw EMS20, or the adapter plate LS-XAP expand mounting and application options. These accessories can be combined according to requirements to optimize the switch's functionality.

Mounting and Installation

Mounting is typically done on a fixed surface or profile, with the Form E design enabling standardized fastening. The roller lever is aligned according to the mechanical movement of the component to be monitored. Electrical connections are made via Cage Clamp terminals, which can be operated without tools. Installation does not require special tools, but proper fastening and wiring are necessary to ensure functional reliability.

Advantages in Operation

The LS-11/L offers high operational safety due to the forced opening function, which ensures the safety function is maintained even in case of mechanical failure. The protection ratings IP66 and IP66 provide high environmental resistance, extending the device's service life in demanding environments. The Cage Clamp connection technology reduces installation time and increases the reliability of the electrical connection. The clear identification via the yellow color of the housing cover simplifies maintenance and identification during operation.

General
Degree of protectionIP66, IP67
Ambient temperature-25 - +70 °C
Construction typeEN 50047 Form E
Contacts1 make contact (NO), 1 breaker contact (NC)
Colour of housing coverYellow
HousingPlastic
Connection typeCage Clamp
Basic functionPosition switch, safety position switch
AssortmentRoller lever
Type identifierLS(M)-.
FeaturesComplete device
Forced openingYes


Questions & answers

What is the delivery time of Eaton 266110 LS-11/L position switch 1NO1NC roller lever ?

The article Eaton 266110 LS-11/L position switch 1NO1NC roller lever is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 266110 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 266110 LS-11/L position switch 1NO1NC roller lever always at the best possible price. We can give you a discount of 2% on Eaton 266110 LS-11/L position switch 1NO1NC roller lever if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 266110 LS-11/L position switch 1NO1NC roller lever we can offer you a price of 41,40 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
