Eaton 266105 LS-11S position switch 1NO1NC plunger

Your rating:
Average rating
product review for Eaton 266105 LS-11S position switch 1NO1NC plunger
( 4.5 / 5 ) 4 ratings

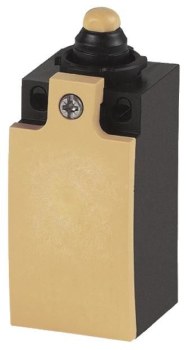

Eaton 266105
This image may differ from the desired article.
Eaton 266105Eaton 266105
33,66 EUR 33,68 EUR
( 40,06 EUR incl. VAT )
≈ £28.17  |  ≈ $36.99
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Eaton 266105 LS-11S position switch 1NO1NC plunger
Lieske Part No.:893147
Mfg Part No: 266105
UPC/EAN: 4015082661052
Weight:0.123 kg
Type:LS-11S
Graduated prices net
From piecesPrice per pieces
1032,65 EUR
2531,64 EUR
5030,63 EUR
7529,62 EUR

Product information for Eaton 266105:

The LS-11S position switch from Eaton is a mechanical end switch for industrial applications, designed as a base unit and expandable. It is used for mechanical position detection in machines and systems, particularly in environments requiring high mechanical durability and protection against dust and water. The switch is part of the Kuppenstößel range and features a safety function with forced opening in accordance with IEC/EN 60947-5-1, making it suitable for safety-critical applications.

Applications

The LS-11S is designed for use in industrial automation, for example in manufacturing and packaging technology, metalworking, or logistics. It is used wherever precise positioning of machine components must be monitored to ensure safe and reliable process control. The protection rating IP66 and IP66 makes it suitable for outdoor use or in damp, dusty environments, as it is dust-tight and protected against water jets and temporary immersion.

Functions and Equipment in Detail

The switch features a Kuppenstößel actuation mechanism, enabling precise and mechanically robust operation. The electrical equipment includes a closer (1 S) and an opener (1 Ö), making it suitable for simple switching operations in control systems. The forced opening function ensures that the contact safely opens even in case of mechanical failure or damage to the switch, increasing the safety of the system. The housing cover is yellow, enabling visual identification and improving recognition in complex installations.

Technology Explained Simply

The switch is designed in form EN 50047 Form B, which represents a standardized mounting form for end switches in industry. The housing is made of plastic, offering high mechanical stability with low weight. The connection technology uses Cage Clamp, a clamping technique that enables quick and reliable connections without additional tools. Cage Clamp is a registered trademark of Wago Kontakttechnik. The ambient temperature range for operation is between -25 °C and +70 °C, making it suitable for a wide range of operating conditions.

Compatibility and Accessories

The LS-11S is expandable and can be combined with various accessories to adapt functionality to specific requirements. These include, for example, M12 connectors in various versions (e.g. M12A, M12B), enabling secure and waterproof connections. Other compatible components include guide washers, screw closures, membrane screws, twin openers, adapter plates, and spring rods, which optimize mounting, protection, or actuation of the switch depending on the application.

Mounting and Installation

Mounting is carried out according to form EN 50047 Form B, with exact mounting instructions depending on the specific application. The Cage Clamp connection technology allows for quick and secure connection of cables without requiring additional tools. The protection rating IP66 IP66 ensures that the switch can be operated even in harsh environments without dust or water affecting its function.

Advantages in Operation

The LS-11S offers high reliability through the forced opening function, ensuring that the contact safely opens even in case of mechanical failure. The robust plastic construction and IP66 IP66 protection rating ensure long service life even in demanding environments. The Cage Clamp connection technology enables quick and secure installation, reducing maintenance and mounting times. The expandability of the device allows flexible adaptation to different operational requirements.

General
Degree of protectionIP66, IP67
Ambient temperature-25 - +70 °C
Construction typeEN 50047 Type B
Contacts Normally open (NO)1
Contacts Normally closed (NC)1
Colour of housing coverYellow
HousingPlastic
Connection typeCage Clamp
AssortmentPlunger
Basic functionPosition switch, safety position switch
Type identifierLS(M)-.
FeaturesBase unit, expandable
Forced openingYes


Questions & answers

What is the delivery time of Eaton 266105 LS-11S position switch 1NO1NC plunger ?

The article Eaton 266105 LS-11S position switch 1NO1NC plunger is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 266105 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 266105 LS-11S position switch 1NO1NC plunger always at the best possible price. We can give you a discount of 2% on Eaton 266105 LS-11S position switch 1NO1NC plunger if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 266105 LS-11S position switch 1NO1NC plunger we can offer you a price of 32,65 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
