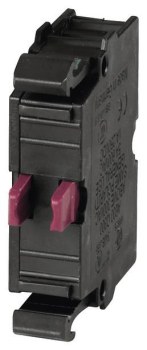

Eaton 262165 M22-K01D contact element 1NO1NC front
|
135,09 EUR 135,28 EUR |
|||||||||||
|
( 160,76 EUR incl. VAT ) ≈ £113.07 | ≈ $148.46 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 20 pieces | |||||||||||
| Lieske Part No.: | 329248 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 262165 | ||||||||||
| UPC/EAN: | 4015082621650 | ||||||||||
| Weight: | 0.218 kg | ||||||||||
| Type: | M22-K01D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 262165:
Applications
The M22-K01D contact element is used in industrial plants where a safe and reliable switching function is required. It is particularly suitable for applications in machine and plant control, where forced opening plays a crucial role in safety. Front mounting allows for easy integration into existing control panels or control units. Due to its IP20 protection class, it is intended for indoor use where there is no direct moisture or dust exposure.
Functions and Equipment in Detail
The device features a normally closed contact (1 NC), operating as a delayed-break contact. Forced opening in accordance with IEC/EN 60947-5-1 ensures that the contact opens safely even if the actuator fails mechanically, representing an important safety feature. Operation is performed via an actuator, with a travel distance of 5.7 mm, while the travel distance according to DIN EN 60947-5-1, K.5.4.1, is 4.8 mm. The minimum force for forced opening is 15 N. Connection is made via screw terminals, enabling a secure and durable connection to wiring. The IP20 protection class protects against finger contact and solid foreign objects, but is not suitable for outdoor use or in damp environments.
Technology Explained Simply
Forced opening is a safety function ensuring that the contact opens even if the actuator is damaged or blocked. This prevents the contact from accidentally remaining closed, which could pose a risk in safety-critical applications. Screw terminals allow for easy and secure connection to electrical wiring. The IP20 protection class means the device is protected against finger contact and solid foreign objects, but not against water or dust. The standard IEC 60947-5-1 specifies requirements for the construction and function of contact elements.
Compatibility and Accessories
The M22-K01D contact element is compatible with various pushbuttons from the M22 series, such as the M22-I2-M1, M22-I3-M2, and M22-I3-M1, also offered by Eaton. These pushbuttons can be combined with the contact element to create a complete control and signaling unit. Additionally, a dust protection cap (M22-XKDP) is available to protect the contact from dust and contamination. Combining the contact element with these accessories allows for flexible adaptation to various requirements in industrial control technology.
Mounting and Installation
Mounting is performed via front mounting, where the contact element is inserted into a pre-drilled opening in the control panel or control board. Screw terminals enable easy and secure connection to electrical wiring. Installation must comply with the requirements of IEC 60947-5-1, taking into account the actuation force and travel distance of the actuator. The IP20 protection class requires the device to be installed in a dry and dust-free indoor environment.
Operational Advantages
The M22-K01D contact element provides a reliable and safe switching function, guaranteed by forced opening in accordance with IEC/EN 60947-5-1. Screw terminals enable easy and secure connection to wiring. Front mounting simplifies installation into existing control panels. Compatibility with various pushbuttons from the M22 series allows for flexible adaptation to different requirements. The IP20 protection class protects against finger contact and solid foreign objects, enhancing operational safety.
The item price shown refers to 20 pieces Eaton 262165
| General | |
| Connection system | Screw terminals |
| Mounting | Front fastening |
| Contacts Normally closed (NC) | 1 Ö |
| Safety function | forced opening according to IEC/EN 60947-5-1 |
| Operating part travel | 4,8 mm |
| Maximum travel | 5,7 mm |
| Minimum force for forced opening | 15 N |
| Degree of protection | IP20 |
| Connection type | Simple contact |
| Standards and regulations | IEC 60947-5-1 |
| Connection to SmartWire-DT | |
Questions & answers
What is the delivery time of Eaton 262165 M22-K01D contact element 1NO1NC front ?
The article Eaton 262165 M22-K01D contact element 1NO1NC front is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 262165 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 262165 M22-K01D contact element 1NO1NC front always at the best possible price. We can give you a discount of 2% on Eaton 262165 M22-K01D contact element 1NO1NC front if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 262165 M22-K01D contact element 1NO1NC front we can offer you a price of 131,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 262165 M22-K01D contact element 1NO1NC front is offered by us in a sales unit of 20 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
