Eaton 261364 A22-LED-R Single-Chip BA9s red

Your rating:
Average rating
product review for Eaton 261364 A22-LED-R Single-Chip BA9s red
( 4.4 / 5 ) 19 ratings

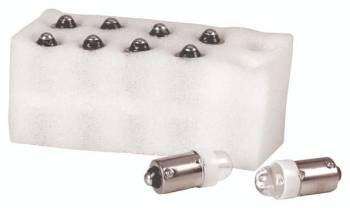

Eaton 261364
This image may differ from the desired article.
85,92 EUR
( 102,24 EUR incl. VAT )
≈ £71.92  |  ≈ $94.43
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 10 pieces
1x Eaton 261364 A22-LED-R Single-Chip BA9s red
Lieske Part No.:150018
Mfg Part No: 261364
UPC/EAN: 4015082613648
Weight:0.123 kg
Type:A22-LED-R
Graduated prices net
From piecesPrice per pieces
684,63 EUR
1283,34 EUR
2482,05 EUR
3680,76 EUR

Product information for Eaton 261364:

The product A22-LED-R from Eaton is an insertable LED lamp for industrial applications, specifically designed as a replacement for conventional incandescent lamps in BA9s format. It is used for signaling in command and indicator devices, where a clear, energy-efficient, and long-lasting light source is required. The red color of the lamp enables unambiguous optical identification, for example, for warning or fault conditions in control and switching systems. LED technology offers a longer service life and lower energy consumption compared to traditional incandescent lamps, reducing maintenance costs in industrial environments.

Applications
This lamp is intended for use in industrial command and indicator units, particularly in control panels, control systems, and machine installations. It is suitable as a direct replacement for conventional BA9s incandescent lamps, with LED technology providing a longer service life and higher reliability. The red color is typical for warning or fault indicators, ensuring clear visual signaling in safety-critical systems.

Functions and Equipment in Detail
The A22-LED-R features single-chip LED technology, enabling a compact design and efficient light output. The red light color is particularly suitable for optical identification in industrial installations. The device is designed for operation with a voltage of 12 to 30 V AC/DC, ensuring broad compatibility with various control and switching systems. The current consumption is 15 mA, resulting in low energy demand and minimal heat generation. The LED is designed in BA9s plug format, which is standard in many industrial command and indicator devices.

Technology Explained Simply
Single-chip LED technology means that a single LED chip is responsible for light generation. This results in a compact design and high light output with low current consumption. The operating voltage of 12 to 30 V AC/DC allows use in various electrical systems, regardless of whether they supply alternating or direct current. The current draw of 15 mA is typical for small LED signal lamps and ensures that the lamp does not generate excessive heat even during prolonged operation. The BA9s plug format is a standard in industrial electrotechnics and ensures easy installation in existing devices.

The LED is designed for use in command and indicator devices requiring clear optical signaling. The red color is a universally understood signal for warning, fault, or operating status. The low current consumption and long service life of the LED reduce maintenance frequency and operating costs compared to conventional incandescent lamps.

Compatibility and Accessories
The lamp is compatible with devices supporting the BA9s plug format. It can be directly installed in existing systems where incandescent lamps were previously used. As an accessory, the M22-LG lamp gripper (part number 216403) is available, which facilitates the installation and removal of the lamp, especially in tight or hard-to-reach mounting positions. The lamp gripper is specifically designed for the size and shape of the A22-LED-R and allows safe handling without damaging the device.

Mounting and Installation
Installation is done by simply inserting the lamp into the corresponding BA9s socket of the command or indicator unit. It is important to observe the correct polarity if the device is operated in a direct current system. Using the M22-LG lamp gripper can facilitate installation in tight or hard-to-reach areas. No additional tools or mounting aids are required, as the device fits directly into the existing socket.

Advantages in Operation
LED technology offers a significantly longer service life compared to incandescent lamps, reducing maintenance frequency. The low current consumption of 15 mA reduces energy demand and heat generation, increasing reliability in continuously operated systems. The red color ensures clear optical signaling, which is also easily recognizable under low lighting conditions. Compatibility with the BA9s plug format allows direct interchangeability with existing incandescent lamps, without requiring additional modifications to the system.

The item price shown refers to 10 pieces Eaton 261364
General
Colour of lightRed -
TechnologySingle-Chip LED -
Plug formatBA9s -
Operating voltage12-30 V AC/DC
Power consumption15 mA


Questions & answers

What is the delivery time of Eaton 261364 A22-LED-R Single-Chip BA9s red ?

The article Eaton 261364 A22-LED-R Single-Chip BA9s red is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 261364 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 261364 A22-LED-R Single-Chip BA9s red always at the best possible price. We can give you a discount of 2% on Eaton 261364 A22-LED-R Single-Chip BA9s red if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 261364 A22-LED-R Single-Chip BA9s red we can offer you a price of 84,63 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 261364 A22-LED-R Single-Chip BA9s red is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
