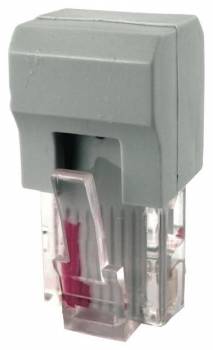

Eaton EASY-NT-R bus termination resistor 8p RJ45 124 Ohm VPE=2 pcs 256281 content_copy

The EASY-NT-R from Eaton is a termination resistor for use in the easyNet network, an industrial fieldbus system. It serves to stabilize signals at the ends of a bus line, preventing reflections and signal disturbances. The resistor is connected to the first and last device in the network to ensure clean and reliable data transmission. It is specifically designed for use with RJ45 connectors and features an 8-pin connection configuration, matching the standard for Ethernet connections.

Termination resistor is the core function of this component. It ensures that electrical signals at the end of the bus line are not reflected, which could lead to data loss or errors. The use of a termination resistor is common in linear topologies in industrial networks to maintain signal integrity.

easyNet network refers to the network protocol developed by Eaton for small PLC systems. It enables the networking of control devices, sensors, and actuators in an industrial environment. The EASY-NT-R is specifically designed for this network environment and ensures correct impedance matching, which is essential for the overall system functionality.

RJ45 connector is the physical connection standard used here. The 8-pin connector allows for compatible connection with standard Ethernet ports, commonly found in many industrial devices. Using an RJ45 connector simplifies installation and integration into existing network infrastructures.

124 Ohm is the specific resistance value intended for impedance matching in the easyNet system. This value is critical to compensate for the electrical characteristics of the bus line and ensure stable data transmission. Precise matching to 124 Ohm prevents signal reflections that may occur with incorrect impedance matching.

The function of the termination resistor is purely passive and requires no additional power supply. It is simply inserted into the bus line, with the connection made via the RJ45 connector. Installation takes place at the endpoints of the bus line, i.e., at the first and last device in the network.

Industrial automation is the primary application area. The EASY-NT-R is used in plants where small PLC systems are employed to control machines, drives, or processes. Reliable data transmission is crucial here to avoid malfunctions or downtime.

The use of a termination resistor is a standard practice in industrial networking. It is not an optional accessory but a necessary component for the correct operation of the easyNet system. Without it, signal disturbances, data loss, or unstable network connections may occur.

Compatibility is limited to the easyNet system. The resistor is not designed for other network protocols or bus systems. Use in other environments is not intended and may lead to malfunctions.

Installation is performed by simply plugging the RJ45 connector into the corresponding port on the first and last device in the network. No additional tools or configurations are required. Installation is therefore quick and easy to perform.

In operation, the termination resistor ensures continuous and stable data transmission. It reduces the likelihood of errors and increases the reliability of the entire network. This is particularly important in environments with high requirements for process safety.

The item price shown refers to 2 pieces Eaton 256281

General
Function	Connection plug with resistor
Connection type	RJ45
Number of poles	8
Resistance value	124 Ohm
Compatibility	easyNet network
Manufacturer	Eaton

---
