Eaton 248330 Z-T/3S1O push button black 3NO1NC

Your rating:
Average rating
product review for Eaton 248330 Z-T/3S1O push button black 3NO1NC
( 4.5 / 5 ) 50 ratings

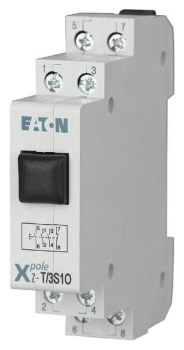

Eaton 248330
This image may differ from the desired article.
Eaton 248330Eaton 248330
-89% 47,87 EUR 449,50 EUR
incl. 10,41 EUR copper surcharge
( 56,97 EUR incl. VAT )
≈ £39.88  |  ≈ $52.51
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 12 pieces
1x Eaton 248330 Z-T/3S1O push button black 3NO1NC
Lieske Part No.:906170
Mfg Part No: 248330
UPC/EAN: 4015082483302
Weight:1.068 kg
Type:Z-T/3S1O
Graduated prices net
From piecesPrice per pieces
1042,81 EUR
2537,76 EUR
5032,70 EUR
7527,64 EUR

Product information for Eaton 248330:

The product is a push-button of the brand Eaton, type Z-T/3S1O, designed for use in electrical control systems. It serves as an operating element for controlling electrical loads and is typically used in industrial or commercial installations where a safe and reliable switching function is required. The button features a function with three openers (3O) and one closer (1S), making it suitable for applications where multiple switching operations must be performed in parallel or sequentially. The color of the push-button is black, and it is designed for mounting on a DIN rail, enabling standardized and quick installation in enclosures.

Applications

The button is intended for use in electrical installations in the fields of industrial automation, machine building, and building automation. It can be used, for example, to control motors, pumps, heating systems, or lighting systems. The rated operating voltage of 400 V AC and the rated operating current of 16 A make it suitable for medium to high loads. The short-circuit withstand rating of 10 kA ensures safe operation even in the event of sudden overloads, making it suitable for installations with increased safety requirements.

Functions and Equipment in Detail

The button has a cap size of 45 mm, enabling clear and easy operation. The mounting width is 1 SU (17.5 mm), which corresponds to the standard width for DIN rail mounting. The terminals are designed for a cross-section of 1 to 10 mm², allowing flexible connection with various cable cross-sections. The function 3O + 1S means that three contacts open and one contact closes when the button is actuated, which may be necessary for complex switching operations. The color of the push-button is black, enabling clear visual identification.

Technology Explained Simply

The button is manufactured in accordance with standards IEC 60669 and VDE 0632, ensuring compliance with international standards for switches and push-buttons in electrical installations. The rated operating voltage of 400 V AC and the rated operating current of 16 A are the maximum values at which the button can be operated continuously. The short-circuit withstand rating of 10 kA means that the button will operate safely even in the event of a short-circuit in the network up to this current level, posing no danger to the installation. DIN rail mounting enables quick and secure installation in enclosures without additional fastening elements.

Compatibility and Accessories

The button is designed for use in enclosures with DIN rail mounting. It is compatible with standard DIN rails and can be combined with other switching devices of the same standard. The use of additional protective or signaling devices is possible, provided they are compatible with the electrical parameters of the button.

Mounting and Installation

Mounting is done via DIN rail fastening, where the button is simply clipped onto the rail. The terminals are designed for connecting cables with a cross-section of 1 to 10 mm². Installation takes place in a closed enclosure, with electrical connections to be made in accordance with applicable regulations and standards. The mounting width of 1 SU (17.5 mm) allows for compact arrangement in enclosures.

Advantages in Operation

The button provides a reliable switching function with clear mechanical contacts. The rated values of 400 V AC and 16 A, along with the short-circuit withstand rating of 10 kA, ensure safe and stable operation in industrial installations. DIN rail mounting enables quick and standardized installation, facilitating maintenance and expansion of the installation. The clear color coding (black) and cap size of 45 mm ensure easy operation even in poorly lit environments.

The item price shown refers to 12 pieces Eaton 248330
General
Function3 NC and 1 NO
Rated operation current16 A
Rated operating voltage400 V AC
Short-circuit withstand capability10 kA
Push-button colourBlack
Cap dimension45 mm
Mounting width1 SU (17,5 mm)
Mounting methodDIN rail mounting
Terminal cross-section1 to 10 mm²
NormIEC 60669, VDE 0632


Please note...
This article contains a copper surcharge of 10,41 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Eaton 248330 Z-T/3S1O push button black 3NO1NC ?

The article Eaton 248330 Z-T/3S1O push button black 3NO1NC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 248330 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 248330 Z-T/3S1O push button black 3NO1NC always at the best possible price. We can give you a discount of 2% on Eaton 248330 Z-T/3S1O push button black 3NO1NC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 248330 Z-T/3S1O push button black 3NO1NC we can offer you a price of 42,81 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 248330 Z-T/3S1O push button black 3NO1NC is offered by us in a sales unit of 12 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
