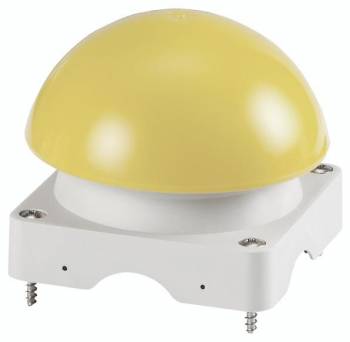

Eaton 229754 FAK-Y housing top part grey mushroom cap yellow
|
57,47 EUR 59,89 EUR |
|||||||||||
|
( 68,39 EUR incl. VAT ) ≈ £48.10 | ≈ $63.16 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 331233 | ||||||||||
| Mfg Part No: | 229754 | ||||||||||
| UPC/EAN: | 4015082297541 | ||||||||||
| Weight: | 0.286 kg | ||||||||||
| Type: | FAK-Y | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 229754:
Applications
The FAK-Y housing top cover is suitable for use in industrial environments, particularly where high mechanical stress, dust, splashing water, or high temperatures occur. The IP67 and IP69K protection ratings, achieved when the device is closed, make it suitable for outdoor use as well as in damp or dusty production environments. IP67 protection means dust-tight and temporarily waterproof, while IP69K provides a high level of protection against high-pressure and steam cleaning. These properties are especially relevant in the food industry, automotive manufacturing, or packaging technology.
Functions and Equipment in Detail
The top cover is designed as a replacement part to replace damaged or worn upper sections of FAK switches. It can also be used to adjust the color scheme of existing switch installations, for example, to better identify functions or harmonize with other control elements. Mounting is done via four screws, ensuring secure and stable fastening. The design is compact, with a width of 94 mm and a height of 101 mm, making it suitable for standard mounting surfaces.
Technology Explained Simply
The IP67 and IP69K protection ratings are crucial for use in demanding environments. IP67 means the device is completely dust-tight and can be submerged in water for a short time without damage. IP69K goes further, protecting against extremely high-pressure and steam cleaning, making it suitable for cleaning processes in the food or pharmaceutical industry. The housing top cover is part of a modular system that connects to existing FAK modules. The grey color with a yellow mushroom cap serves visual identification and is common in industrial installations to highlight specific functions.
Compatibility and Accessories
The FAK-Y top cover is specifically developed for Eaton’s FAK switch series and can be combined with various accessories to optimize mounting or protection. Compatible products include mounting adapters such as M22-ADC or M22-ADC4, which enable secure mounting on different surfaces. Also available are mounting enclosures like M22-I4 or M22-I6, as well as hoods such as M22-H1 to M22-H6, to complete the overall system. Mounting plates like M22-E1 or M22-EY1 support integration into existing control panels.
Mounting and Installation
Mounting of the housing top cover is done using four screws inserted into the pre-drilled holes in the module. Installation is simple and requires no special tools other than a screwdriver. The top cover is placed onto the existing module and tightened, with precise fit ensured by the modular design. Mounting typically requires no tools other than a screwdriver and can be performed even on operational systems, provided safety regulations are followed.
Advantages in Operation
The FAK-Y top cover offers a reliable and maintenance-friendly solution for renewing or adapting control elements. The high protection rating of IP67 and IP69K ensures long service life even in harsh environments. Easy mounting with four screws reduces installation effort and enables quick replacement. The grey color with a yellow mushroom cap supports visual orientation during operation, enhancing usability and safety. The module is part of a comprehensive system that can be flexibly adapted to different requirements without compromising functionality.
| Design | |
| Product colour | Grey, Yellow |
| Technical details | |
| Number of modules | 1 |
| Number of buttons | 1 buttons |
| International Protection (IP) code | IP67, IP69K |
| Weight & dimensions | |
| Width | 94 mm |
| Height | 101 mm |
Questions & answers
What is the delivery time of Eaton 229754 FAK-Y housing top part grey mushroom cap yellow ?
The article Eaton 229754 FAK-Y housing top part grey mushroom cap yellow is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 229754 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 229754 FAK-Y housing top part grey mushroom cap yellow always at the best possible price. We can give you a discount of 2% on Eaton 229754 FAK-Y housing top part grey mushroom cap yellow if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 229754 FAK-Y housing top part grey mushroom cap yellow we can offer you a price of 55,75 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
