Eaton 229753 FAK-IU housing lower part black

Your rating:
Average rating
product review for Eaton 229753 FAK-IU housing lower part black
( 4.6 / 5 ) 12 ratings

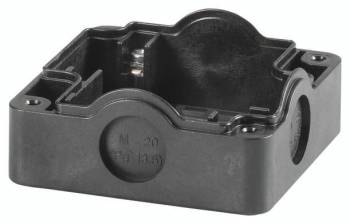

Eaton 229753
This image may differ from the desired article.
Eaton 229753Eaton 229753Eaton 229753
19,32 EUR
( 22,99 EUR incl. VAT )
≈ £16.17  |  ≈ $21.23
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: 1 pieces
1x Eaton 229753 FAK-IU housing lower part black
Datasheet:file_download Download
Lieske Part No.:744012
Mfg Part No: 229753
UPC/EAN: 4015082297534
Weight:0.175 kg
Type:FAK-IU
Graduated prices net
From piecesPrice per pieces
1518,74 EUR
3018,16 EUR
7017,58 EUR
10017,00 EUR

Product information for Eaton 229753:

The product from Eaton, type FAK-IU, manufacturer's number 229753, is a base plate of the control box in black, intended as a replacement part or for combination with a housing top section. It is specifically designed for mounting foot and hand actuators and enables a modular, stackable installation. The base plate is secured using screws and serves as a stable foundation for control devices in industrial applications. In the closed state, the complete housing meets the protection rating IP67 and IP69K, indicating a high level of protection against dust, water, and high-pressure water jets. These properties make the device suitable for use in harsh environments, such as in manufacturing, food processing, or outdoor applications.

Applications

The FAK-IU base plate is used in industrial control systems where robust and weather-resistant control devices are required. It is particularly suitable for installations subjected to high mechanical stress, moisture, or aggressive cleaning processes. The IP67 rating protects against dust and temporary immersion in water, while IP69K provides additional protection against hot steam and high-pressure cleaning. This makes the device ideal for applications in the food industry, pharmaceuticals, or automotive manufacturing.

Functions and Equipment in Detail

The base plate is manufactured in black (RAL 9005) and has dimensions of 85 mm (width), 85 mm (depth), and 101 mm (height). The color and geometric shape are designed for compatibility with other components of the FAK system. Fixing is done via screws, ensuring a secure and durable installation. The base plate is supplied as a single unit and can be combined with matching housing top sections to form a complete control box system.

Technology Explained Simply

The IP67 protection rating means the device is completely dust-tight and protected against temporary immersion in water up to a depth of 1 m. IP69K goes further, protecting against hot steam and high-pressure water jets that may occur during intensive cleaning. These protection ratings are crucial for reliability in demanding environments. The base plate itself is not an active component but serves as a mechanical and protective foundation for switches or actuators mounted within it.

Compatibility and Accessories

The FAK-IU base plate is specifically designed for use with matching housing top sections of the FAK system. As accessories, various indicator lights are available, including models in white (208692), red (208689), green (208690), and yellow (208691). These indicator lights can be used for visual signaling in control technology and enhance the system visually. Combining the base plate with these indicator lights enables clear status indication, for example, for operation, fault, or readiness.

Installation and Mounting

Installation is carried out by screw fastening, with the base plate positioned on a flat, load-bearing surface. The base plate is modular in design, allowing multiple units to be placed side by side or stacked vertically to create larger control panels.

Operational Advantages

Using the FAK-IU base plate provides high mechanical stability and reliable protection for the components mounted within. The IP67 and IP69K protection ratings ensure a long service life even under extreme operating conditions. The modular design allows flexible adaptation to different requirements and simplifies maintenance and replacement of individual components. Compatibility with various indicator lights extends the system's functionality and supports visual control in complex installations.

Features
Product typeElectrical enclosure bottom plate
Mounting typeScrew
Product colourBlack
Weight & dimensions
Width85 mm
Depth85 mm
Height101 mm


Product data sheet
Datasheet for Eaton 229753, EAN: 4015082297534

Questions & answers

What is the delivery time of Eaton 229753 FAK-IU housing lower part black ?

The article Eaton 229753 FAK-IU housing lower part black is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 229753 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 229753 FAK-IU housing lower part black always at the best possible price. We can give you a discount of 2% on Eaton 229753 FAK-IU housing lower part black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 229753 FAK-IU housing lower part black we can offer you a price of 18,74 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
