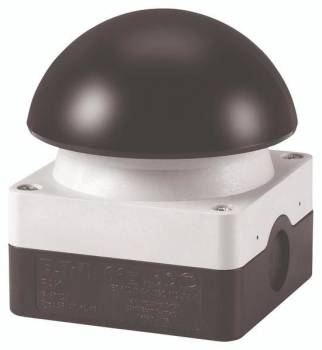

Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC

Your rating:
Average rating
product review for Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC
( 4.6 / 5 ) 68 ratings
Eaton 229749
This image may differ from the desired article.
Eaton 229749Eaton 229749Eaton 229749
88,28 EUR 92,00 EUR
( 105,05 EUR incl. VAT )
≈ £73.89  |  ≈ $97.02
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC
Datasheet:file_download Download
Lieske Part No.:887898
Mfg Part No: 229749
UPC/EAN: 4015082297497
Weight:0.387 kg
Type:FAK-S/KC11/I
Graduated prices net
From piecesPrice per pieces
685,63 EUR
1282,98 EUR
2480,33 EUR
3677,69 EUR

Product information for Eaton 229749:

The Eaton FAK-S/KC11/I is a foot and hand pushbutton, supplied as a complete unit, designed for use in industrial applications. The device features a momentary function and is equipped with a contact configuration comprising one normally open (1 S) and one normally closed (1 Ö) contact. The contact configuration provides a safety function through forced opening in accordance with the standard IEC/EN 60947-5-1, ensuring safe disconnection even in the event of mechanical damage to the switch. The housing consists of two parts: the upper housing is grey, the lower housing is black, while the actuator button is black. The protection rating IP66, IP66 and IP69K makes the device suitable for use in environments with high requirements for dust and water tightness, including outdoor areas and areas with high cleaning requirements. The mounting orientation is arbitrary, enabling flexible installation in various system configurations.

Applications

The FAK-S/KC11/I is intended for use in industrial control systems, particularly in installations that require high safety standards for operating elements. The forced opening function makes it especially suitable for applications where safe disconnection is required even in the event of mechanical failure, for example in machine controls, conveyor systems or in the packaging industry. The high protection rating allows use in damp, dusty or heavily cleaned environments, such as those found in food processing, the chemical industry or automotive manufacturing.

Functions and Equipment in Detail

The device features a momentary actuation, where the contact remains closed only as long as the actuation force is applied. The contact configuration with one normally open and one normally closed contact enables integration into simple or extended control circuits. The safety function through forced opening in accordance with IEC/EN 60947-5-1 ensures that the contact is safely opened even if the switch is mechanically damaged, thereby increasing operational safety. The housing colour scheme (upper part grey, lower part black) and the black button are standardised and support visual recognition during operation.

Technology Explained Simply

The protection rating IP66, IP66 and IP69K means that the device is completely dust-tight and protected against water jets, temporary immersion and high-pressure cleaning. This makes it suitable for use in harsh environments where high mechanical and chemical stresses occur. The standard IEC/EN 60947-5-1, which governs the forced opening function, is an international safety standard for switching devices in industrial electrical engineering. The mounting orientation is arbitrary, meaning the device can be mounted in any position without affecting its function.

Compatibility and Accessories

The device is not designed for connection to SmartWire-DT, meaning it cannot be integrated into systems based on this fieldbus technology. The standards IEC/EN 60947-5-1, VDE 0660, as well as certifications UL 508, CSA-C22.2 No. 14-05 and CSA-C22.2 No. 94-91 guarantee compliance with international and regional safety and quality requirements. The CE certification confirms compliance with European safety directives.

Mounting and Installation

Mounting is possible in any orientation, allowing flexible integration into various machine and system configurations. The dimensions are designed to fit standard mounting openings. The height is 101 mm, which should be considered when planning mounting surfaces. Installation requires no special tools or additional components, as the device is delivered as a complete unit.

Operational Advantages

The combination of forced opening function and high protection rating provides high operational safety and durability. The momentary function enables precise control, while the flexible mounting orientation facilitates integration into existing systems. Certifications in accordance with international standards ensure reliability and safe operation across various industries.

Certification

The device is certified in accordance with IEC/EN 60947-5, UL 508, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91 and CE, confirming compliance with international safety and quality standards. The standard IEC/EN 60529 defines the protection ratings IP66, IP66 and IP69K, which are relevant for use in harsh environments.

Product Type

The FAK-S/KC11/I is a foot and hand pushbutton, delivered as a complete unit. It is designed for use in industrial control systems, particularly in installations with high safety requirements.

Core Function

The core function is momentary actuation with a contact configuration comprising one normally open and one normally closed contact, supplemented by a safety function through forced opening.

Technology

The technology is based on mechanical actuation with forced opening function in accordance with IEC/EN 60947-5-1, ensuring safe disconnection even in the event of mechanical damage.

Standard

The standard IEC/EN 60947-5-1 governs the safety function through forced opening, while the protection ratings IP66, IP66 and IP69K are defined in accordance with IEC/EN 60529. Certification in accordance with UL 508, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91 and CE confirms compliance with international standards.

Features
Product colourBlack, Grey
Number of modules1
CertificationIEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE
Weight & dimensions
Height101 mm


Product data sheet
Datasheet for Eaton 229749, EAN: 4015082297497

Questions & answers

What is the delivery time of Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC ?

The article Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 229749 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC always at the best possible price. We can give you a discount of 2% on Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 229749 FAK-S/KC11/I foot coarse pushbutton 1NO1NC we can offer you a price of 85,63 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
