EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748

Your rating:
Average rating
product review for EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748
( 4.6 / 5 ) 30 ratings
Eaton 229748

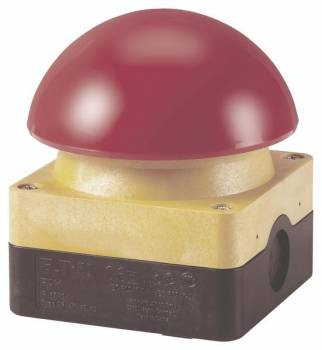

This image may differ from the desired article.
Eaton 229748Eaton 229748Eaton 229748
121,88 EUR 127,01 EUR
( 145,04 EUR incl. VAT )
≈ £102.01  |  ≈ $133.95
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748
Datasheet:file_download Download
Lieske Part No.:136694
Mfg Part No: 229748
UPC/EAN: 4015082297480
Weight:0.383 kg
Type:FAK-R/V/KC11/IY
Graduated prices net
From piecesPrice per pieces
5118,22 EUR
10114,57 EUR
15110,91 EUR
20107,25 EUR

Product information for Eaton 229748:

The Eaton FAK-R/V/KC11/IY is a foot and hand actuator, designed as a complete unit specifically for use as an emergency stop actuator in industrial systems. The device features a latching function and enables unlocking by pulling, ensuring secure and tamper-resistant operation. The construction complies with the requirements of ISO 13850/EN 418, which applies to fail-safe emergency stop functions in machines and systems. The contact configuration includes one normally open contact (1 S) and one normally closed contact (1 Ö), with the safety function implemented via forced opening according to IEC/EN 60947-5-1. The actuator's color scheme is aligned with safety requirements: the plunger is red, the upper housing part is yellow, and the lower housing part is black, enhancing visual recognition and compliance with safety standards.

Applications
This actuator is intended for use in industrial environments, particularly in machines and systems where immediate and reliable shutdown in an emergency is required. The design allows for flexible mounting orientation, enabling installation in various positions without compromising functionality. Typical applications include production systems, material handling equipment, machine tools, or other systems where operator and machine safety are paramount.

Functions and Features in Detail
The device includes a mechanical forced opening mechanism, ensuring that the contact opens in the event of mechanical damage or tampering. This is critical for safety functionality and meets the requirements of IEC/EN 60947-5-1. The contact type 1S1Ö (one closer, one opener) allows integration into existing control systems, with the opener used for the emergency stop function and the closer for additional signals or feedback. Operation is via a latching mechanism, ensuring clear and unambiguous positioning of the actuator.

Technical Explanation
The IP67 and IP69K protection rating means the device is dust-tight and protected against temporary immersion in water, as well as high-pressure and steam cleaning. This makes the actuator suitable for use in harsh environments commonly found in industrial settings. Certification to IEC/EN 60947-5, UL 508, CSA-C22.2 No. 14-05, and CSA-C22.2 No. 94-91, along with CE marking, confirms compliance with international safety and quality standards. The device height is 101 mm, allowing for mounting in standard sockets or on panels.

Compatibility and Accessories
The actuator is not designed for connection to SmartWire-DT, meaning it can be used in systems without this specific fieldbus technology. Compliance with IEC/EN 60947-5-5 and VDE 0660 also enables use in electrical switchgear and control systems in Germany and Europe.

Mounting and Installation
Mounting can be done in any orientation, allowing flexible integration into existing systems. The mechanical design requires no additional tools or special mounting aids. The terminal clamps are designed for connection with standard cables, with exact connection specifications detailed in the manufacturer’s technical documentation.

Operational Advantages
The use of the Eaton FAK-R/V/KC11/IY provides high reliability and safety in critical applications. The tamper-resistant design and forced opening ensure that the emergency stop function remains effective even in the event of mechanical failure or wear. The high protection rating allows use in dirty or wet environments without affecting functionality. The clear color coding supports quick identification and adherence to safety regulations.

Features
Product colourBlack, Red, Yellow
CertificationIEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE IP67, IP69K
Weight & dimensions
Height101 mm


Product data sheet
Datasheet for Eaton 229748, EAN: 4015082297480

Questions & answers

What is the delivery time of EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748?

The article EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 229748 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748 always at the best possible price. We can give you a discount of 2% on EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of EATON FAK-R/V/KC11/IY foot coarse pushbutton 1NO1NC EMERGENCY STOP 229748 we can offer you a price of 118,22 EUR per piece. The more you buy, the cheaper the article will be.
