Eaton 229747 FAK-R/V/KC01/IY foot coarse pushbutton 0S1Ö EMERGENCY STOP

Your rating:
Average rating
product review for Eaton 229747 FAK-R/V/KC01/IY foot coarse pushbutton 0S1Ö EMERGENCY STOP
( 4.7 / 5 ) 35 ratings

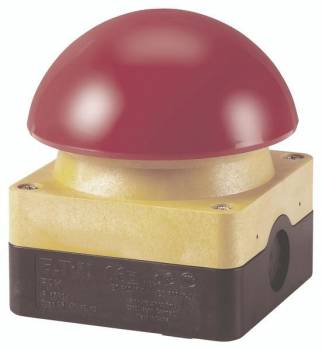

Eaton 229747
This image may differ from the desired article.
Eaton 229747Eaton 229747Eaton 229747
116,92 EUR 121,84 EUR
( 139,13 EUR incl. VAT )
≈ £97.86  |  ≈ $128.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x Eaton 229747 FAK-R/V/KC01/IY foot coarse pushbutton 0S1Ö EMERGENCY STOP
Datasheet:file_download Download
Lieske Part No.:667034
Mfg Part No: 229747
UPC/EAN: 4015082297473
Weight:0.371 kg
Type:FAK-R/V/KC01/IY
Graduated prices net
From piecesPrice per pieces
5113,41 EUR
10109,90 EUR
15106,40 EUR
20102,89 EUR

Product information for Eaton 229747:

The Eaton FAK-R/V/KC01/IY is a foot and hand actuator, designed as a complete unit with latching function. It serves as an emergency stop actuator in industrial systems and is designed in accordance with ISO 13850/EN 418 to be tamper-proof, preventing unintended operation. The release mechanism is by pulling, ensuring a secure and controlled activation. The device features a normally closed contact (1 NC) and is equipped with forced opening in accordance with IEC/EN 60947-5-1 to ensure safety function. The colour scheme consists of a red actuator, a yellow housing upper part, and a black housing lower part, enabling clear visual identification. The mounting orientation is arbitrary, allowing flexible use in various installation scenarios.

Applications
This actuator is intended for use in safety-critical applications, particularly in the manufacturing industry, machine and plant engineering sectors. It is used where immediate shutdown of the machine or system is required to avoid hazards to personnel or equipment. The tamper-proof design makes it especially suitable for environments where accidental or intentional operation must be prevented.

Functions and Equipment in Detail
The device is designed as a latching actuator, meaning it remains in the actuated position after operation until manually reset. The contact configuration includes a normally closed contact (1 NC), which opens when the actuator is operated. The forced opening in accordance with IEC/EN 60947-5-1 ensures that the contact opens safely even in case of mechanical damage or tampering, guaranteeing the safety function. The release mechanism is by pulling, providing an additional safety level.

Technology Explained Simply
The actuator is cable-connected, meaning it is wired to the control system via a fixed cable. The protection rating IP66, IP66 and IP69K (according to IEC/EN 60529) ensures dust and water tightness, allowing the device to be operated even in humid or dusty environments, including outdoors. The IP69K certification means the device is also protected against high-pressure and steam cleaning, making it suitable for demanding cleaning requirements in the food industry or pharmaceutical industry. Certifications IEC/EN 60947-5-5 and VDE 0660, as well as UL/CSA Type 3R, 4X, 12, 13, confirm compliance with international safety and quality standards.

Compatibility and Accessories
The device is not intended for connection to SmartWire-DT, meaning it cannot be integrated into systems based on this communication technology. However, it is compatible with standard control systems that feature cable-connected inputs. The colour scheme (red, yellow, black) corresponds to common markings for emergency stop functions and enables clear identification during operation.

Mounting and Installation
Mounting is possible in any orientation, enabling flexible placement in machine or plant engineering. Dimensions are 121 mm (width), 70.5 mm (depth), and 101 mm (height), which must be considered during installation planning. The device is supplied as a complete unit, so no additional parts or mounting accessories are required. Installation is performed via the integrated cable, which is connected to the control system.

Advantages in Operation
The actuator provides high safety through tamper-proof design and forced opening. The IP69K protection rating allows use in demanding environments, including high-pressure cleaning. The latching function ensures that the emergency stop state remains active until manually reset, enhancing safety during operation. The clear colour coding supports quick recognition during operation, which is crucial in emergencies. Compliance with international standards such as IEC/EN 60947-5-5, VDE 0660, and UL/CSA Type 3R, 4X, 12, 13 ensures reliability and compatibility in various markets.

Features
Connectivity technologyWired
Product colourBlack, Red, Yellow
International Protection (IP) codeIP66, IP67, IP69
Protection featuresDust resistant, Water resistant
CertificationIEC/EN 60947-5-5, VDE 0660 UL/CSA Type 3R, 4X, 12, 13
Built-in displayNo
Packaging data
Quantity per pack1 pc(s)
Weight & dimensions
Width121 mm
Depth70.5 mm
Height101 mm


Product data sheet
Datasheet for Eaton 229747, EAN: 4015082297473
