Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC

Your rating:
Average rating
product review for Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC
( 4.3 / 5 ) 3 ratings

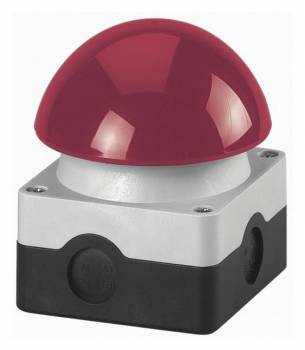

Eaton 229746
This image may differ from the desired article.
Eaton 229746Eaton 229746Eaton 229746
61,91 EUR
( 73,68 EUR incl. VAT )
≈ £51.82  |  ≈ $68.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC
Datasheet:file_download Download
Lieske Part No.:321700
Mfg Part No: 229746
UPC/EAN: 4015082297466
Weight:0.387 kg
Type:FAK-R/KC11/I
Graduated prices net
From piecesPrice per pieces
661,45 EUR
1260,98 EUR
2460,52 EUR
3660,06 EUR

Product information for Eaton 229746:

The Eaton FAK-R/KC11/I is a foot and coarse-hand pushbutton, designed as a complete unit for use in industrial applications. The device features a momentary function and is equipped with a contact configuration comprising one normally open contact (1 S) and one normally closed contact (1 Ö). The contact configuration provides a safety function through forced opening in accordance with the standard IEC/EN 60947-5-1, ensuring reliable disconnection even in the event of mechanical failure. The pushbutton is coloured red, the upper housing part is grey, while the lower housing part is black. The device is not intended for connection to SmartWire-DT.

Applications

The FAK-R/KC11/I is suitable for applications requiring mechanical operation via foot or coarse hand, for example in manufacturing industry, machine controls, or installations with increased safety requirements. The protection rating IP67 and IP69K makes the device suitable for use in environments with high requirements for dust and water tightness, including cleaning processes with high-pressure water. The mounting orientation is arbitrary, enabling flexible installation in various positions.

Functions and Equipment in Detail

The device is designed as a momentary switch, meaning the contact remains closed only as long as the actuation is applied. The contact configuration with one normally open and one normally closed contact allows control of two different circuits. The forced opening function ensures that the contact is safely opened even in the event of mechanical failure or damage to the actuation unit, which is critical for safety-critical applications. The colouring of the pushbutton (red) and the housing (grey/black) corresponds to common industrial markings and supports visual recognition.

Technology Explained Simply

The protection rating IP67 means the device is dust-tight and can be submerged up to a depth of 1 metre for a short time without damage. IP69K goes further, providing protection against high-pressure and steam jet cleaning, which is relevant for installations in the food industry or environments with high hygiene requirements. The standard IEC/EN 60947-5-1 specifies requirements for safety functions in control devices, particularly forced opening, which is integrated here. The mounting orientation is arbitrary, meaning the device can be mounted in any position without affecting its function.

Compatibility and Accessories

The device is designed for use in industrial control systems and complies with standards IEC/EN 60947-5-1, VDE 0660, UL 508, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, as well as CE. It is not designed for connection to SmartWire-DT, meaning it cannot be integrated into systems based on this communication technology. The certifications also include protection ratings IP67, IP67, and IP69K, confirming suitability for use in dirty or wet environments.

Mounting and Installation

Mounting is possible in any orientation, with mechanical load capacity and protection rating determining the operating conditions. The device dimensions include a height of 101 mm, which must be considered when planning mounting surfaces. Installation is carried out in the usual manner for control devices, with electrical connections to be made in accordance with technical specifications of the relevant standards.

Advantages in Operation

The combination of momentary function, forced opening, and high protection ratings provides high reliability and safety in operation. The colouring supports visual recognition, and the flexible mounting orientation enables easy integration into existing installations. Certifications according to international standards ensure suitability for use in various markets and industries.

Features
Product colourBlack, Red, White
CertificationIEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE IP67, IP69K
Weight & dimensions
Height101 mm


Product data sheet
Datasheet for Eaton 229746, EAN: 4015082297466

Questions & answers

What is the delivery time of Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC ?

The article Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 229746 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC always at the best possible price. We can give you a discount of 2% on Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 229746 FAK-R/KC11/I foot coarse hand switch 1NO1NC we can offer you a price of 61,45 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
