Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle

Your rating:
Average rating
product review for Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle
( 4.7 / 5 ) 11 ratings

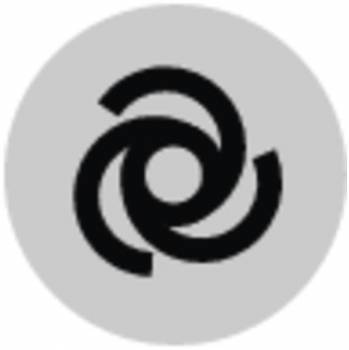

Eaton 218308
This image may differ from the desired article.
Eaton 218308Eaton 218308
32,77 EUR
( 39,00 EUR incl. VAT )
≈ £27.43  |  ≈ $36.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 10 pieces
1x Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle
Lieske Part No.:156723
Mfg Part No: 218308
UPC/EAN: 4015082183080
Weight:0.123 kg
Type:M22-XDL-W-X10
Graduated prices net
From piecesPrice per pieces
1031,79 EUR
2530,80 EUR
5029,82 EUR
7528,84 EUR

Product information for Eaton 218308:

The M22-XDL-W-X10 pushbutton lens from Eaton is a single unit from the accessories range for flush-mounted control and signaling devices. It serves as an optical cover for control buttons in industrial control systems and is specifically designed for use with devices from the M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X series. The lens is flat and flush-mounted into the control surface, ensuring a clean, even surface. The color of the pushbutton lens is white, which enables clear visibility of the symbols and labeling applied to it. Labeling is performed automatically, with selection based on symbol, facilitating integration into existing systems.

Applications

The pushbutton lens is used in industrial control systems, particularly in installations equipped with control and signaling devices from the specified series. It is suitable for applications requiring clear, visual identification of control buttons, such as in manufacturing automation, machine control, or process monitoring. The flush-mounted design ensures robust and clean integration into the control surface, making it suitable for use in environments with high mechanical stress or near moving parts.

Functions and Features in Detail

The pushbutton lens is designed for labeling with symbols, with labeling performed automatically. The font size varies depending on the number of characters: with up to five characters, the font height is 5 mm; with more than five characters, the font height reduces to 3 mm. This adjustment ensures optimal readability of the labeling, regardless of text length. The lens is not intended for connection to SmartWire-DT, meaning it does not have integrated communication functionality and serves exclusively as a mechanical cover.

Technology Explained Simply

The pushbutton lens is a passive component that does not perform any electrical functions. Its main purpose is to visually identify the control button while simultaneously protecting it from mechanical influences such as dust, moisture, or mechanical wear. The flush design allows for a flat installation, ensuring the surface of the control console is not exceeded. The white color of the lens provides high contrast against dark symbols or labeling, improving visibility during operation. Automatic labeling based on symbol simplifies installation and reduces errors during mounting.

Compatibility and Accessories

The pushbutton lens is specifically designed for use with devices M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X. These devices belong to Eaton’s product family for flush-mounted control and signaling devices. Compatibility is ensured by the specific shape and dimensions of the lens, which are precisely matched to the control buttons of these devices.

Installation and Mounting

Installation is performed by simply inserting the pushbutton lens into the designated opening of the control button. The flush design requires no additional mounting aids or tools. The lens fits securely and firmly into the control console, ensuring mechanical stability. Automatic labeling based on symbol simplifies correct assignment of the lens to the respective button function. No additional steps are required for commissioning, as the pushbutton lens performs only a mechanical function.

Connection to SmartWire-DT is not intended, meaning the lens has no electronic functions or communication capabilities. The pushbutton lens serves exclusively for optical identification and mechanical protection.

Operational Advantages

The pushbutton lens provides clear and durable identification of control buttons, improving operability and safety in industrial installations. The flush design ensures a clean surface that is easy to clean and withstands mechanical stress. Automatic labeling based on symbol reduces installation errors and ensures uniform identification. The white color of the lens ensures high visibility of symbols, even under low lighting conditions. The pushbutton lens is a maintenance-free component that does not perform any electrical functions and is therefore not subject to wear.

The item price shown refers to 10 pieces Eaton 218308
General
Construction typeConcise
ColourWhite
Font height (up to 5 characters)5 mm
Font height (> 5 characters)3 mm
TextAutomatic
Selection criterionSymbol
Suitable forM22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X
Connection to SmartWire-DTNo


Questions & answers

What is the delivery time of Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle ?

The article Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 218308 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle always at the best possible price. We can give you a discount of 2% on Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle we can offer you a price of 31,79 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 218308 M22-XDL-W-X10 pushbutton lens flat white with symbol automatic cycle is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
