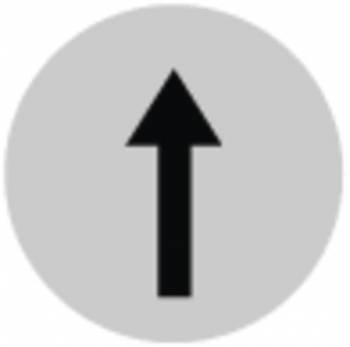

Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction

Your rating:
Average rating
product review for Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction
( 4.4 / 5 ) 5 ratings
Eaton 218305
This image may differ from the desired article.
Eaton 218305Eaton 218305Eaton 218305
3,28 EUR 3,42 EUR
( 3,90 EUR incl. VAT )
≈ £2.75  |  ≈ $3.60
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction
Datasheet:file_download Download
Lieske Part No.:440864
Mfg Part No: 218305
UPC/EAN: 4015082183059
Weight:0.001 kg
Type:M22-XDL-W-X7
Graduated prices net
From piecesPrice per pieces
503,18 EUR
1003,08 EUR
2502,98 EUR
5002,89 EUR

Product information for Eaton 218305:

The product M22-XDL-W-X7 from Eaton is a push-button lens, specifically designed as a button lens for flush-mounted control and signaling devices. It serves as an optical cover for buttons in industrial control systems and is used in conjunction with various models from the M22 and M30 series. The lens is finished in white color and features a flat design, which fits flush into the control surface. The height is 2.5 mm, enabling a flat, unobtrusive integration into control panels. The labeling follows the symbol direction of motion, with the font size varying according to the number of characters: for up to five characters, the font height is 5 mm, and for more than five characters, it is 3 mm. This adjustment ensures clear readability for different label lengths.

Applications
The button lens is intended for use in industrial control systems, particularly in installations equipped with the models M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X. These devices are used in automation technology, manufacturing industry, and in installations with control panels where clear and robust operation is required. The flat design enables a clean, flush surface that integrates well into modern control concepts.

Functions and Equipment in DetailThe lens is designed as accessory for buttons and serves to visually identify the function of the button beneath it. The labeling is done using a predefined symbol representing the direction of motion. The white color ensures good visibility, especially when the buttons are illuminated. The design is flush, providing a flat, non-slip surface. The font height of 5 mm for up to five characters and 3 mm for longer labels ensures balanced readability without overloading the surface.

Technology Explained SimplyThe button lens is not an active component but a passive accessory that visually supports the function of the button beneath it. The height of 2.5 mm is matched to the standard mounting height of buttons in industrial control panels. The flat design ensures that the lens fits flush into the control surface, which is both aesthetically and functionally advantageous, as it does not protrude and thus cannot be accidentally activated. The white color provides high contrast, especially when buttons are illuminated, making operation easier even in low ambient light conditions.

Compatibility and AccessoriesThe button lens is specifically designed for the models M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X. These devices belong to Eaton’s product family and are widely used in industrial automation. Compatible accessories also include other button lens models such as M30I-FDL-X and M30C-FDL-X, which are also available in flat design. Combining these models allows for a uniform design of control panels.

Mounting and InstallationInstallation is done by inserting the lens into the designated opening of the button. The lens is placed onto the button and sits flush with the control surface. The installation instruction (IL04716002Z) is relevant for correct installation, as the mechanical function of the device depends on proper mounting. The lens is not designed for direct electrical supply and is not connected to SmartWire-DT, meaning it does not perform any electrical functions.

Operational AdvantagesThe flat design and clear labeling ensure intuitive operation. The white color and varying font heights enhance readability, reducing the error rate during operation. Compatibility with various models from the M22 and M30 series allows for standardized equipment of control panels, simplifying maintenance and spare part procurement. The button lens is robust and designed for industrial environments, with an operating temperature range of -25 °C to +70 °C. The requirements of product standard IEC/EN 61439 regarding corrosion resistance, heat resistance, and UV resistance (on request) are met, ensuring safe operation in various environments. Batteries are not included in the delivery scope.

Features
Product typeButton lens
Product colourBlack, White
Weight & dimensions
Height2.5 mm


Product data sheet
Datasheet for Eaton 218305, EAN: 4015082183059

Questions & answers

What is the delivery time of Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction ?

The article Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 218305 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction always at the best possible price. We can give you a discount of 2% on Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Eaton 218305 M22-XDL-W-X7 pushbutton lens flat white with symbol motion direction we can offer you a price of 3,18 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
