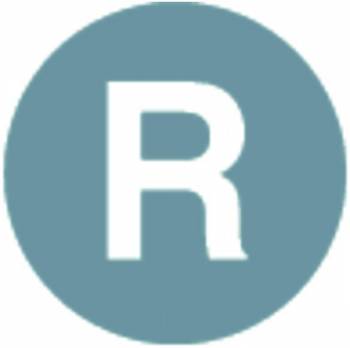

Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset

Your rating:
Average rating
product review for Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset
( 5 / 5 ) 2 ratings
Eaton 218304
This image may differ from the desired article.
Eaton 218304Eaton 218304Eaton 218304
3,28 EUR 3,42 EUR
( 3,90 EUR incl. VAT )
≈ £2.75  |  ≈ $3.60
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset
Datasheet:file_download Download
Lieske Part No.:185787
Mfg Part No: 218304
UPC/EAN: 4015082183042
Weight:0.0015 kg
Type:M22-XDL-B-X6
Graduated prices net
From piecesPrice per pieces
503,18 EUR
1003,08 EUR
2502,98 EUR
5002,89 EUR

Product information for Eaton 218304:

The product Eaton M22-XDL-B-X6 is a push-button lens designed as a button lens for industrial control and signaling devices. It is offered as a single unit in the accessories range and is specifically designed for use with various models of the M22 and M30 series. The button lens is flat and enables flush mounting in control panels. The color scheme is black and blue, with the blue variant visually highlighting the push-button. The height of the lens is 2.5 mm, allowing for compact integration into narrow control panels. The lens is marked with the symbol Reset, making it suitable for applications requiring system state reset.

Button lens

The button lens serves as a visible element on a push-button and enables clear identification of the function. The font size varies depending on the number of characters: for five characters, the font height is 5 mm; for more than five characters, it is 3 mm. This adjustment ensures good readability for different labelings. The design is flush, so the lens is inserted flat into the control surface without creating protruding edges. The labeling follows the symbol Reset, clearly defining the button's function.

Applications

The lens is intended for use with various models of the M22 and M30 series, including M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X. These devices are used in industrial automation, machine controls, and systems with control panels. The button lens is employed in systems where visual identification of button functions is required, for example in production plants, packaging machines, or manufacturing technology.

Functions and equipment in detail

The lens is designed as a replacement part or addition for existing control panels. It is not connected to any electrical function but serves exclusively for optical identification. The black and blue color scheme supports visual differentiation of button functions. The font size is adapted to the number of characters to ensure clear readability. The flush design enables flat mounting without exceeding the control panel surface.

Technology explained simply

The lens consists of a flat, transparent or colored plastic element mounted over the push-button. The blue color is used to distinguish the button from other control elements. The text Reset is directly integrated into the lens, making the button's function immediately recognizable. The height of 2.5 mm is designed for integration into narrow control panels, with the flush design ensuring a flat surface.

Compatibility and accessories

The lens is compatible with models M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X. It can be used as a replacement part or to adapt control panel labeling. Suitable accessories include illuminated push-buttons of types M30C-FDL-X and M30I-FDL-X, which are also flat. These buttons can be combined with the lens to create a uniform control surface. Connection to SmartWire-DT is not intended, meaning the lens does not have an electronic interface.

Individual specifications regarding weight, dimensions (length/width/height), tariff number/HS code, country of origin, EAN/GTIN, warranty period, manufacturer number, and article number are maintained in dedicated fields in the product master data and are not repeated here.

Mounting and installation

Installation is done by simply inserting the lens into the designated position on the push-button. The flush design allows for easy and secure fixation without additional fastening elements. No tools are required, and installation can be performed directly on the device. The button lens is designed to be inserted into the button field without tools.

Operational advantages

The button lens enables clear and unambiguous identification of button functions, simplifying the operation of machines and systems. The flush design ensures a flat surface, enhancing safety and facilitating cleaning. The black and blue color scheme supports visual differentiation, reducing operational errors. The font size is adapted to the number of characters, ensuring readability even with complex labeling.

The specifications regarding weight, dimensions (length/width/height), tariff number/HS code, country of origin, EAN/GTIN, warranty period, manufacturer number, and article number are maintained in dedicated fields in the product master data and are not repeated here.

Features
Product typeButton lens
Product colourBlack, Blue
Weight & dimensions
Height2.5 mm


Product data sheet
Datasheet for Eaton 218304, EAN: 4015082183042

Questions & answers

What is the delivery time of Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset ?

The article Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 218304 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset always at the best possible price. We can give you a discount of 2% on Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Eaton 218304 M22-XDL-B-X6 pushbutton lens flush blue with symbol Reset we can offer you a price of 3,18 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




This product is recommended as accessory for
