Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I

Your rating:
Average rating
product review for Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I
( 4.4 / 5 ) 5 ratings

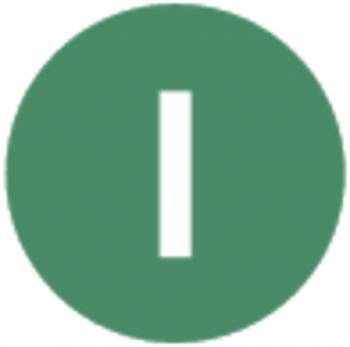

Eaton 218295
This image may differ from the desired article.
Eaton 218295Eaton 218295Eaton 218295
3,28 EUR 3,42 EUR
( 3,90 EUR incl. VAT )
≈ £2.75  |  ≈ $3.60
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I
Datasheet:file_download Download
Lieske Part No.:139010
Mfg Part No: 218295
UPC/EAN: 4015082182953
Weight:0.123 kg
Type:M22-XDL-G-X1
Graduated prices net
From piecesPrice per pieces
503,18 EUR
1003,08 EUR
2502,98 EUR
5002,89 EUR

Product information for Eaton 218295:

The product Eaton M22-XDL-G-X1 is a push-button lens designed as a button lens for flush-mounted control and signaling devices. It is used in industrial electrical engineering to provide visual identification for control buttons. The button lens is flat and available in the colors Green and White, with Green typically used for start or operational functions. The design is flush, enabling a flat surface and clean integration into control panels. The height of the lens is 2.5 mm, ensuring a compact and flat installation in control panels and operator interfaces.

Button lens serves as an optical cover for push buttons and contributes to improved visibility and operability. The lens features the symbol “START”, visually supporting the function of the underlying button. The font size varies depending on the number of characters: for five characters, the font height is 5 mm; for more than five characters, it is 3 mm. This adjustment ensures clear readability regardless of label length.

Applications include mounting on various models of Eaton control technology, particularly types M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X. The button lens is intended as a replacement or addition to existing control buttons to update or enhance the operator interface. It is used in industrial plants, machine controls, and enclosures where clear and unambiguous function identification is required.

Functions and features in detail include the flat, flush design, which ensures a level surface and enables integration into flat control panels. The color scheme in Green and White supports visual differentiation of functions. The “START” symbol is directly integrated into the lens, allowing operation without additional labeling. The button lens is not designed for connection to SmartWire-DT, meaning it does not have integrated communication functionality.

Technology explained simply shows that the button lens is merely an optical cover placed over an existing push button. The button’s function is not altered by the lens but is visually enhanced. The height of 2.5 mm ensures the lens lies flat on the surface without creating a protrusion, which is important for integration into flat control panels. The material and design are tailored to meet the requirements of industrial environments.

Compatibility and accessories include use with various Eaton models, particularly types M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, and M30C-FDRL-X. Compatible accessories also offered include illuminated push buttons of types M30I-FDL-X and M30C-FDL-X, which feature a flat front and tactile operation. These buttons can be combined with the button lens to create a consistent operator interface.

Installation and mounting is done by simply placing the button lens onto the existing push button. No additional fastening or tools are required. The flush design ensures the lens forms a level surface after installation, improving both visual aesthetics and operability. Installation is quick and does not require special skills.

Operational advantages lie in the clear identification of functions through the integrated “START” symbol and color coding. The flat design allows for clean integration into existing control panels, maintaining a visually uniform surface. The button lens is easily replaceable and can be simply swapped if needed, without replacing the entire button. Its compatibility with various Eaton models increases flexibility and usability in applications.

Product type is a single unit serving as an accessory for control devices. Core function is the visual identification of a push button, particularly for start functions. Technology refers to passive optical covering without electronic functions.

The button lens is not supplied with additional components such as batteries, instructions, or tools. The delivery scope is limited to the single push-button lens.

Features
Product typeButton lens
Product colourGreen, White
Weight & dimensions
Height2.5 mm


Product data sheet
Datasheet for Eaton 218295, EAN: 4015082182953

Questions & answers

What is the delivery time of Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I ?

The article Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 218295 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I always at the best possible price. We can give you a discount of 2% on Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Eaton 218295 M22-XDL-G-X1 pushbutton lens flush green with symbol Start I we can offer you a price of 3,18 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
