Eaton 216554 M22-UPE flush mounting kit

Your rating:
Average rating
product review for Eaton 216554 M22-UPE flush mounting kit
( 4.3 / 5 ) 7 ratings

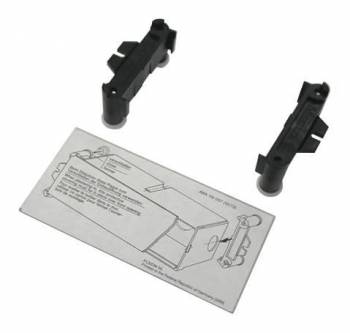

Eaton 216554
This image may differ from the desired article.
Eaton 216554Eaton 216554
12,82 EUR 13,37 EUR
( 15,26 EUR incl. VAT )
≈ £10.73  |  ≈ $14.09
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 2 pieces
1x Eaton 216554 M22-UPE flush mounting kit
Lieske Part No.:505318
Mfg Part No: 216554
UPC/EAN: 4015082165543
Weight:0.142 kg
Type:M22-UPE
Graduated prices net
From piecesPrice per pieces
1512,44 EUR
3012,05 EUR
7011,67 EUR
10011,28 EUR

Product information for Eaton 216554:

The product from Eaton, type M22-UPE, manufacturer's number 216554, is a recessed mounting kit serving as an installation aid. It is specifically used for recessed mounting of plastic hoods of type M22-H. This assembly is part of built-in control and signaling devices and ensures secure and precise fixation of the hood in the recessed area, thereby guaranteeing a clean and professional installation. The application is in electrical installations, particularly for mounting control elements in walls or ceilings, where a flat, even mounting surface is required.

Applications

The recessed mounting kit M22-UPE is intended for use in industrial and commercial electrical installations where plastic hoods of type M22-H are mounted. It enables secure and permanent fixation of the hood in the recess, ensuring mechanical stability and optical integration into the building elements. The application is in rooms where clean, flat mounting of control elements is required, for example in production halls, office buildings, or administrative buildings.

Functions and Equipment in Detail

The mounting kit serves as an aid for installation and provides the necessary structure to securely fix the plastic hood M22-H in the recess. It is designed to stabilize the hood during installation and enable precise alignment. The installation is carried out by inserting the kit into the designated opening in the plaster, where it creates the connection between the hood and the recess. The exact fit ensures a clean, crack-free surface after installation.

Technology Explained Simply

The recessed mounting kit M22-UPE is a mechanical aid that does not perform any electrical functions but fulfills purely structural tasks. It is installed in the wall or ceiling opening before the plastic hood M22-H is mounted. The construction is designed to stabilize the hood during installation and enable precise positioning. The materials are suitable for use in electrical installations and ensure permanent fixation without shifting or loosening.

Compatibility and Accessories

The mounting kit is specifically designed for plastic hoods of type M22-H. It is not a universal mounting element but fits exactly to the dimensions and construction of M22-H hoods. Combination with other hood types is not intended and not supported. The use is exclusively in conjunction with M22-H hoods, which are also offered by Eaton or compatible manufacturers.

Installation and Mounting

The installation is carried out by inserting the mounting kit into the prepared opening in the recess. For this, the opening is prepared according to the dimensions of the hood and the mounting kit. The kit is inserted into the opening and fixed, with the exact fit ensuring secure fastening. Subsequently, the plastic hood M22-H is placed onto the mounting kit and locked. The installation does not require additional tools or aids, except for the fastening elements required in the recess, such as screws or anchors, which are not part of the mounting kit.

The installation is typically carried out using a screwdriver or similar tool required for fastening in the recess. The exact installation instructions are not included in the delivery, as the mounting kit serves as a purely mechanical aid without electrical functions, and the installation methods are standardized.

Advantages in Operation

The use of the recessed mounting kit M22-UPE ensures a clean, flat, and stable installation of the plastic hood M22-H. The exact fit prevents cracks in the plaster and ensures a professional appearance. The mechanical stability of the fastening reduces the risk of loosening or shifting during operation, increasing the longevity and reliability of the installation. The installation is quick and easy, as no additional aids are required, except for the building elements necessary for fastening in the recess.

The item price shown refers to 2 pieces Eaton 216554
General
Product typeUndercut set
ManufacturerEaton
PurposeMounting aid for inserting plastic covers type M22-H


Questions & answers

What is the delivery time of Eaton 216554 M22-UPE flush mounting kit ?

The article Eaton 216554 M22-UPE flush mounting kit is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 216554 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 216554 M22-UPE flush mounting kit always at the best possible price. We can give you a discount of 2% on Eaton 216554 M22-UPE flush mounting kit if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 216554 M22-UPE flush mounting kit we can offer you a price of 12,44 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 216554 M22-UPE flush mounting kit is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
