Eaton 216505 M22-AK11 contact element 1NO1NC front

Your rating:
Average rating
product review for Eaton 216505 M22-AK11 contact element 1NO1NC front
( 4.3 / 5 ) 6 ratings

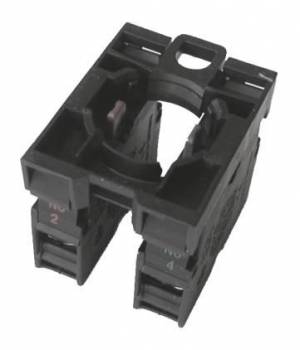

Eaton 216505
This image may differ from the desired article.
Eaton 216505Eaton 216505
16,39 EUR 16,40 EUR
( 19,50 EUR incl. VAT )
≈ £13.72  |  ≈ $18.01
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Eaton 216505 M22-AK11 contact element 1NO1NC front
Lieske Part No.:317310
Mfg Part No: 216505
UPC/EAN: 4015082165055
Weight:0.0266 kg
Type:M22-AK11
Graduated prices net
From piecesPrice per pieces
1515,90 EUR
3015,41 EUR
7014,91 EUR
10014,42 EUR

Product information for Eaton 216505:

The M22-AK11 contact element from Eaton is a front-mounting module for built-in control and signaling devices, specifically designed for integration into industrial control systems. It serves as an electrical switching component used in conjunction with operating parts such as pushbuttons, selector switches, or key switches to reliably and securely transmit switching operations. The module features a screw terminal connection technology that ensures a firm and durable electrical connection, and is designed for mounting on the front side of control panels or operating units. It is not intended for connection to SmartWire-DT.

Applications

The M22-AK11 contact element is used in industrial plants where secure and reliable switching functions are required. It is suitable for applications in manufacturing automation, machine control, and process regulation, particularly in environments where mechanical positive break (forced opening) according to IEC/EN 60947-5-1 is required. Front mounting allows for easy integration into existing control panels and operating units, with screw terminals ensuring a robust connection to wiring and control devices.

Functions and Equipment in Detail

The module features a contact element with one closing contact (1 S) and one opening contact (1 Ö), protected by a forced opening safety mechanism in accordance with IEC/EN 60947-5-1. This safety function ensures that the contact opens safely even in the event of mechanical failure of the operating part, which is critical for protecting equipment and personnel. The actuation force is at least 20 N, and the maximum travel of the operating part is 5.7 mm, with the travel according to DIN EN 60947-5-1, K.5.4.1, being 4.8 mm. These values are relevant for compliance with standards and the safe operation of the device.

Technology Explained Simply

The forced opening function ensures that the contact opens safely even if the operating part fails mechanically or becomes defective, which is an important safety feature in industrial plants. The screw terminals allow for easy and secure connection to cables and control devices, while front mounting enables direct installation on the front side of control panels or operating units. The protection rating IP20 means the device is protected against contact with fingers and against solid foreign objects, but not against water or dust. It is therefore intended for use in enclosed, dry indoor environments.

Compatibility and Accessories

The M22-AK11 contact element is compatible with various operating parts from Eaton’s M22 series, including pushbuttons, selector switches, key switches, and emergency stop buttons. It can be combined with products such as the M22-WJS2V joystick, M22-WK3 selector switch, M22S-DRH-G-X1 green latching pushbutton, M22S-WS-SA(*)-* key switch, M22-W selector switch, M22S-DP-W-X1 white pushbutton, M22-PVT45P-MPI emergency stop, M22-WK selector switch, M22-DG-X protected pushbutton, M22-I3-M1 pushbutton, M22-WS3-2K10-BVP key switch, M22-PVS60P-RS emergency stop, M22S-DI4-S-X7 black pushbutton, M22S-WRS*-MS*-*, M22-DP-Y-X yellow pushbutton, M22-DDL-GR-X1/X0/K11/230-W double pushbutton, M22-DRP-S-X black pushbutton, M22S-DRP-Y yellow pushbutton, M22S-DP-G green pushbutton, and M22-WR-X92 selector switch. These components allow for flexible design of control panels and control systems.

Mounting and Installation

Mounting is done via front mounting, with the module installed directly on the front side of control panels or operating units. The screw terminals allow for easy and secure connection to electrical wiring. Installation requires no special tools or additional components, as the module is designed as a standalone unit. Compliance with standards IEC 60947-5-1 and DIN EN 60947-5-1 must be observed during mounting and operation to ensure the safety function.

Advantages in Operation

The M22-AK11 contact element provides a reliable and safe switching function, guaranteed by the forced opening safety mechanism according to IEC/EN 60947-5-1. The screw terminals ensure a stable electrical connection, and front mounting allows for easy integration into existing systems. Compatibility with a wide range of operating parts from the M22 series enables flexible design of control panels and control systems. Compliance with standards ensures reliability and safety in industrial operation.

Protection Rating

The IP20 protection rating means the device is protected against contact with fingers and against solid foreign objects, but not against water or dust. It is therefore intended for use in enclosed, dry indoor environments. The IP20 protection rating is sufficient for many industrial applications, especially when the device is operated in protected environments.

Standards and Regulations

The M22-AK11 contact element complies with standards IEC 60947-5-1 and DIN EN 60947-5-1, which define requirements for safety functions and actuation forces for contact elements. Compliance with these standards ensures the reliability and safety of the device in industrial use. The forced opening function is certified according to IEC/EN 60947-5-1, which is an important prerequisite for use in safety-critical applications.

General
Connection systemScrew terminals
MountingFront fastening
Contacts S1 S
Contacts NO1 O
Safety functionforced opening according to IEC/EN 60947-5-1
Operating part travel4,8 mm
Maximum travel5,7 mm
Minimum force for forced opening20 N
Degree of protectionIP20
Standards and regulationsIEC 60947-5-1
Connection to SmartWire-DTNo
