Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons

Your rating:
Average rating
product review for Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons
( 4.3 / 5 ) 4 ratings

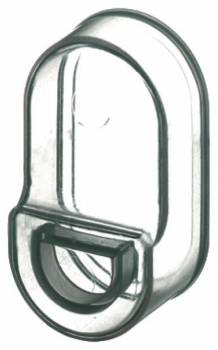

Eaton 216396
This image may differ from the desired article.
Eaton 216396Eaton 216396Eaton 216396
5,38 EUR 5,60 EUR
( 6,40 EUR incl. VAT )
≈ £4.50  |  ≈ $5.91
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons
Datasheet:file_download Download
Lieske Part No.:378120
Mfg Part No: 216396
UPC/EAN: 4015082163969
Weight:0.123 kg
Type:M22-T-DD
Graduated prices net
From piecesPrice per pieces
255,22 EUR
505,06 EUR
1004,90 EUR
2504,73 EUR

Product information for Eaton 216396:

The Eaton M22-T-DD is a pushbutton protective diaphragm, specifically developed for double pushbuttons of the M22 series. It is a transparent diaphragm made of silicone, serving as an additional protection for the button surface. The diaphragm is designed for operating conditions where increased requirements for hygiene and environmental resistance apply, particularly in the food industry. The transparent design allows visual inspection of the button function without impairing operation. Dimensions are 33 mm in width and 58 mm in height, matching the standard size of M22 buttons.

Pushbutton protective diaphragm
The M22-T-DD serves as a protective layer against contamination, moisture, and mechanical impacts. It is placed directly onto the button surface and acts as a barrier against dust, liquids, and other external influences. The silicone material ensures high flexibility and resistance to chemical substances, making it suitable for industrial applications. The transparent color allows visibility of button illumination and markings, maintaining operability even under protective conditions.

Applications
The diaphragm is intended for use in environments with high hygiene requirements, such as food processing, pharmaceutical industry, or medical facilities. It is also suitable for production environments with increased humidity, splashing water, or aggressive chemicals. The silicone composition offers good chemical resistance and is resistant to temperature fluctuations, enhancing reliability under various operating conditions.

Functions and equipment in detail
The diaphragm is specifically designed for double pushbuttons of the M22 series, particularly for models such as M22(N/O)-DDL. The transparent design enables visual inspection of button function without impairing operation. The silicone composition ensures an elastic fit and a tight coverage of the button surface. The diaphragm is not to be combined with the button additional label holder M22S-ST, as this would compromise the required protection rating. Use is recommended exclusively for the specified button models.

Technology explained simply
The M22-T-DD is a passive protective component that does not perform any electrical function, but provides purely mechanical and chemical protection. The silicone diaphragm is placed onto the button surface and acts as a barrier against external influences. The transparency allows visibility of markings and illumination, ensuring safe operation even under protective conditions. The silicone material offers high resistance to moisture, chemicals, and temperature fluctuations, extending the lifespan of the buttons.

Compatibility and accessories
The diaphragm is intended for use with double pushbuttons of the M22 series, particularly with models such as M22(N/O)-DDL. Combination with the button additional label holder M22S-ST is not recommended, as the protection rating would no longer be guaranteed. The diaphragm is not a replacement for the buttons themselves, but an additional protective part. Use is exclusively in conjunction with the specified button models.

Installation and mounting
Installation is performed by simply placing the diaphragm onto the button surface. No additional tools or mounting aids are required. The silicone composition ensures secure seating without additional fastening. The diaphragm conforms to the shape of the buttons and provides a tight coverage. Mounting is quick and tool-free, simplifying maintenance and cleaning.

Advantages in operation
Using the M22-T-DD extends the lifespan of the buttons by protecting them from contamination and mechanical impacts. The transparent design enables visual inspection of button function, ensuring operability even under protective conditions. The silicone composition offers high resistance to chemical substances and temperature fluctuations, increasing reliability in industrial applications. The simple mounting and maintenance reduce maintenance effort and operational downtime.

Features
Product typeButton
Product colourTransparent
Weight & dimensions
Width33 mm
Height58 mm


Product data sheet
Datasheet for Eaton 216396, EAN: 4015082163969

Questions & answers

What is the delivery time of Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons ?

The article Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 216396 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons always at the best possible price. We can give you a discount of 2% on Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Eaton 216396 M22-T-DD pushbutton membrane double pushbuttons we can offer you a price of 5,22 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
